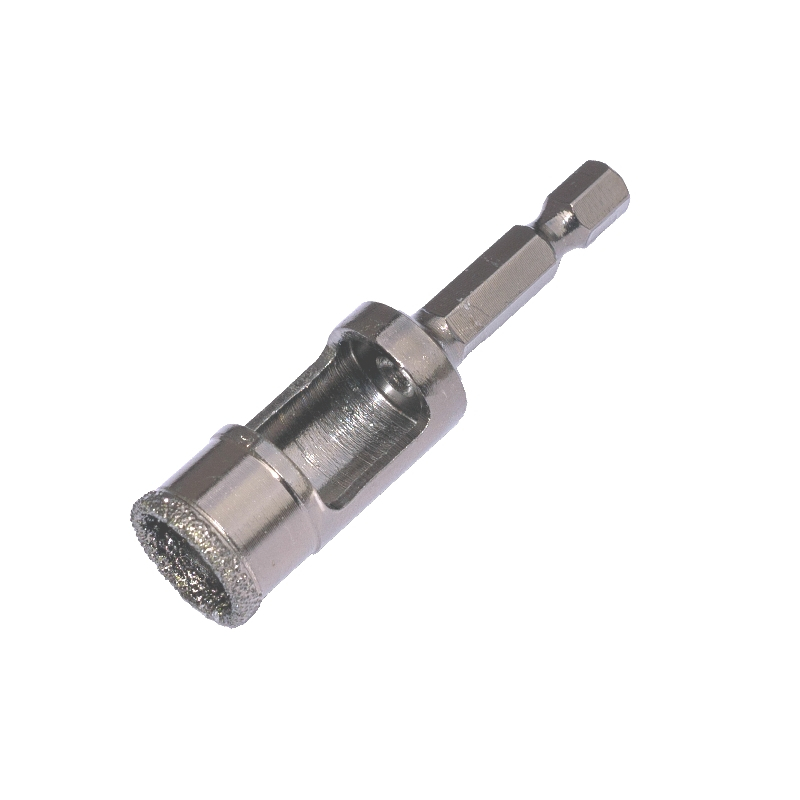

CASTLE (6mm x 35mm) VACUUM BRAZED DIAMOND CORE DRILL DEPTH 27MM

Shank Type Quick change Hex shank 1/4″
Application Drilling Porcelain(Grade 5),Granite,Marble,Ceramics,Terracotta,Glass,Quarry Tiles,Travertine
Tip Material Vaccum brazed diamond core surface

For best results when drilling
1. Pre cool the tile core drill with a brief dip in coolant (water) or pour water around the area you wish to drill.
2. Offer up the tile core drill to the material at an angle of 45°
3. After creating a SMILE cut in the material raise the power tool to 90° and apply gentle pressure.
4. Gently oscillate the tile core drill in the hole, use a regular 5 second bursts during drilling.
5. Make sure the tile core drill is pr-dipped into the coolant (water) before every hole as per point 1.Tiles 10mm plus will need multiple dips.
Drilling vertical tiles on walls
Pre cool the tile core drill with a brief dip in coolant (water) if drilling hole sizes 5,6,7,8,10,12,15mm use the tile core drill guide water dispenser for best results.
If water dispenser is not used follow point 1 to 5.
