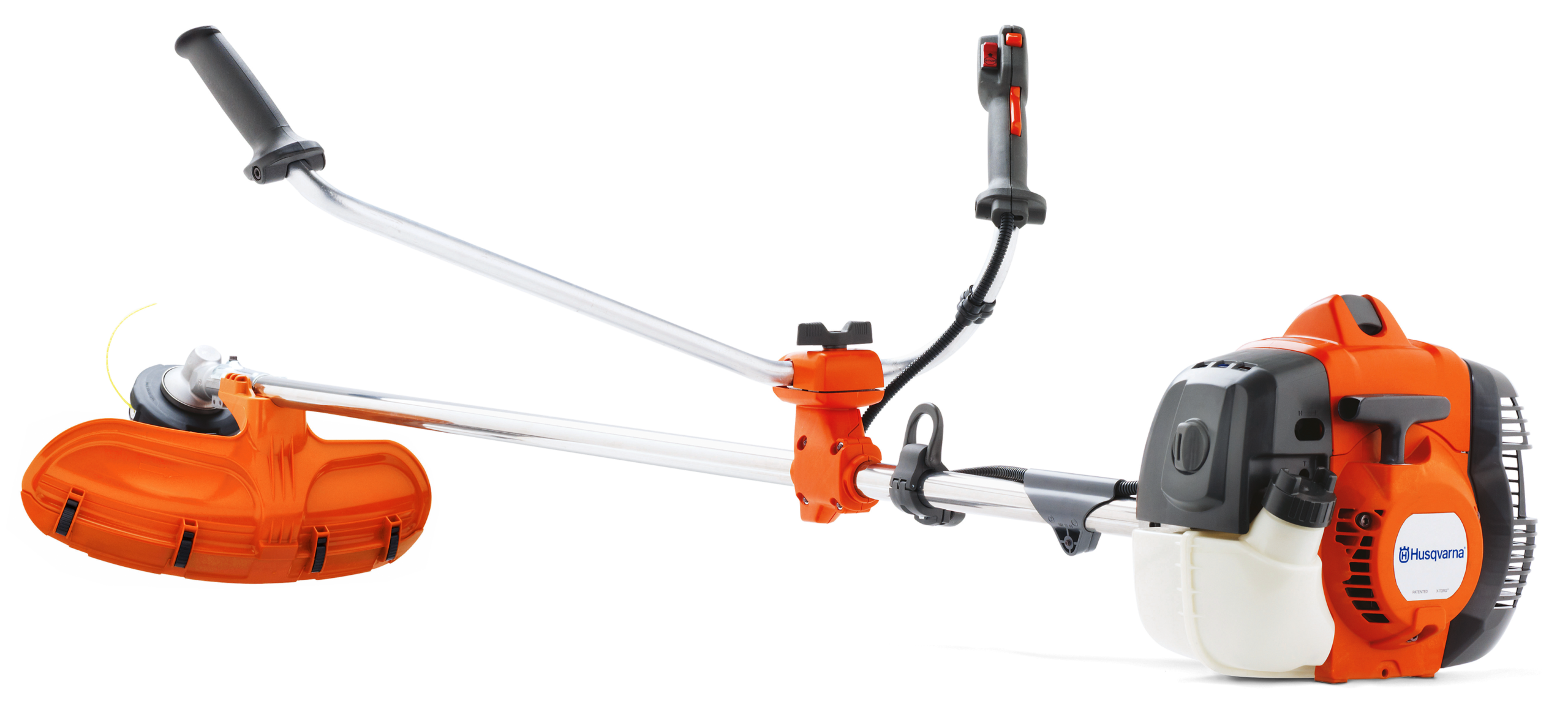

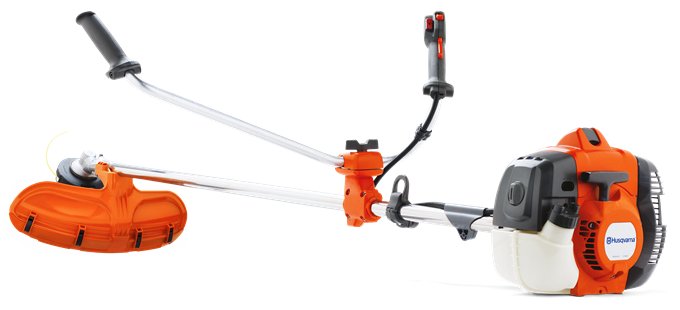

Husqvarna 135R Strimmer

Standard double harness
Standard double harness for lighter brushcutters provides a comfortable working position. The weight is distributed evenly over the shoulders and the harness is padded for extra convenience.

Adjustable handle bar
Adjustable and ergonomically designed handlebar for best comfort.

X-Torq engine
The X-Torq engine design increases torque over a wider rpm range providing maximum cutting power.

High Line Capacity
Heavy duty twin line cutting system with Tap’n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

Auto return stop switch
When the machine is turned off, the stop button automatically returns to start position for trouble free start.

Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.

Ergonomic handle
Comfortable handle design.

Engine

Cylinder displacement
34.6 cm3

Output shaft power
1
1.3 kW

Fuel tank volume
0.6 l

Fuel Consumption
435 g/kWh

Maximum power speed
8,400 rpm

Idling speed
2,900 rpm

Maximum rpm output shaft
8,220 rpm

Electrode gap
0.5 mm

Clutch engagement speed (±120)
3,800 rpm

Torque, max.
1.8 Nm

Torque, max. at rpm
6,600 rpm

Spark Plug
Champion RCJ6Y

Equipment

Grass blade
Multi 300-3

Harness
Standard double harness

Saw blade
Not included

Trimmer head
T35 M12

Handle type
Bullhorn twistable

Control

Connectivity
Not applicable

Capacity

Cutting width
47 cm

Transmission

Gear ratio
1.4

Drive gear angle
35 °

Dimensions

Tube diameter
28 mm

Weight (excl. cutting equipment)
6.8 kg

Tube length
1,483 mm

Lubricant

Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)
Mineral grease

Sound and noise

Sound pressure level at operators ear (LpA)
98 dB(A)

Sound power level, guaranteed (LWA)
113 dB(A)

Emission

Exhaust emissions (HC average) EU
40.51 g/kWh

Exhaust emissions (HC average) CARB
29.31 g/kWh

Exhaust emissions (CO average) EU
418.31 g/kWh

Exhaust emissions (CO average) EPA
243.69 g/kWh

Exhaust emissions (NOx average) EU
0.46 g/kWh

Exhaust emissions (NOx average) EPA
1.09 g/kWh

Exhaust emissions (CO2 EU V)
2
862 g/kWh

Vibration

Equivalent vibration level (ahv, eq) left handle
2.9 m/s²

Equivalent vibration level (ahv, eq) right handle
2.5 m/s²
