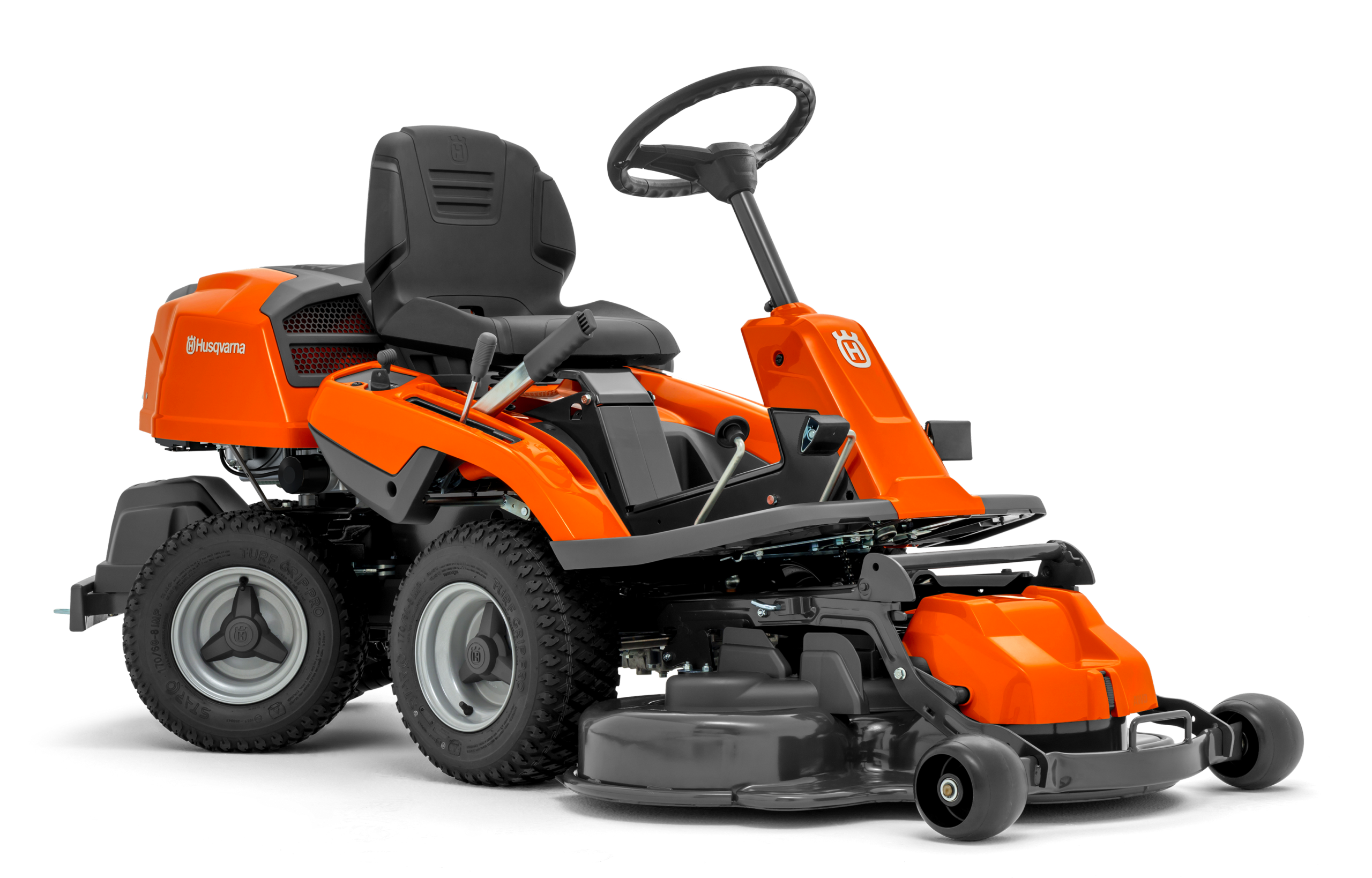

Husqvarna R 214C Front Deck Mower
£3,611.16 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk
Practical, front-mounted ride-on mower with a 94 cm Combi cutting deck offering BioClip® mulching and rear ejection. Articulated steering and a pivoting rear axle give excellent manoeuvrability and traction, while pedal-operated hydrostatic transmission and easy-access controls keep operation straightforward. The cutting deck tilts to a service position for cleaning and maintenance, and the machine accepts a range of Husqvarna attachments for year-round garden tasks.
Combi cutting deck with BioClip®
94 cm Combi deck lets you choose BioClip® mulching for frequent cuts and natural lawn fertilisation or rear ejection for higher, coarser grass.
Excellent manoeuvrability
Unique articulated steering and a pivoting rear axle reduce turning radius and improve access around trees, beds and other obstacles.
Simple, controllable drive
Pedal-operated hydrostatic transmission allows intuitive control of speed and direction so you can keep both hands on the wheel for accurate mowing.
Key specification
| Article ID | 970519401 |
| Transmission | Hydrostatic |
Full specification
| Weight (excl. cutting equipment) | 191 kg |
| Battery Chemistry | Lead-Acid |
| Cylinder displacement (metric) | 413 cm³ |
| Connectivity | Not applicable |
| Exhaust emissions (CO₂ EU V) | 773 g/kWh |
| Sound pressure level at operators ear (LpA) | 84 dB(A) |
| Sound power level, guaranteed (LWA) | 99 dB(A) |
| Power source | Petrol |
| Sound power level, measured | 98 dB(A) |
| Battery capacity | 24 Ah |
| Cutting height max (metric) | 75 mm |
| Cutting height min (metric) | 25 mm |
| Serie | 200-serie |
| Cylinders | 1 |
| Net power at preset rpm Energy | 8.4 kW |
| Engine brand | Husqvarna |
| Net power at preset rpm | 3000 rpm |
| Engine name | HS 413AE |
| Transmission type | Hydrostatic |
| Motor/engine manufacturer | Husqvarna |
| Base machine, length (metric) | 192.2 cm |
| Base machine, width (metric) | 88.3 cm |
| Base machine, height (metric) | 107 cm |
| Engine cooling | Air |
| Engine lubrication type | Pressure |
| Oil filter | Yes |
| PTO (Power Take Off) | Belt Drive |
| Drive method | Dual pedal-operation |
| Speed forward max (metric) | 9 km/h |
| Speed reverse max (metric) | 9 km/h |
| Uncut circle (metric) | 30 cm |
| Cutting width, min (metric) | 94 cm |
| Cutting width, max (metric) | 94 cm |
| Blade engagement | Automatic |
| Seat suspension | Yes |
| Seat type | Comfort |
| Hour meter type | Digital |
| Seat material | PU |
| Seat back height | Medium |
| Foldable seat | Yes |
| Steering wheel type | Ergonomic |
| Parking brake, type | Disc |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase (metric) | 88.7 cm |
| Ground clearance (metric) | 120 mm |
| Gross weight towed (metric) | 110 kg |
| Vibration level steering wheel | 2.1 m/s² |
| Vibration level seat | 0.6 m/s² |
| Drive system | Rear wheel drive |
| Cutting deck type | Combi 94 |
| Steering knob | Optional |
Key features
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.
Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

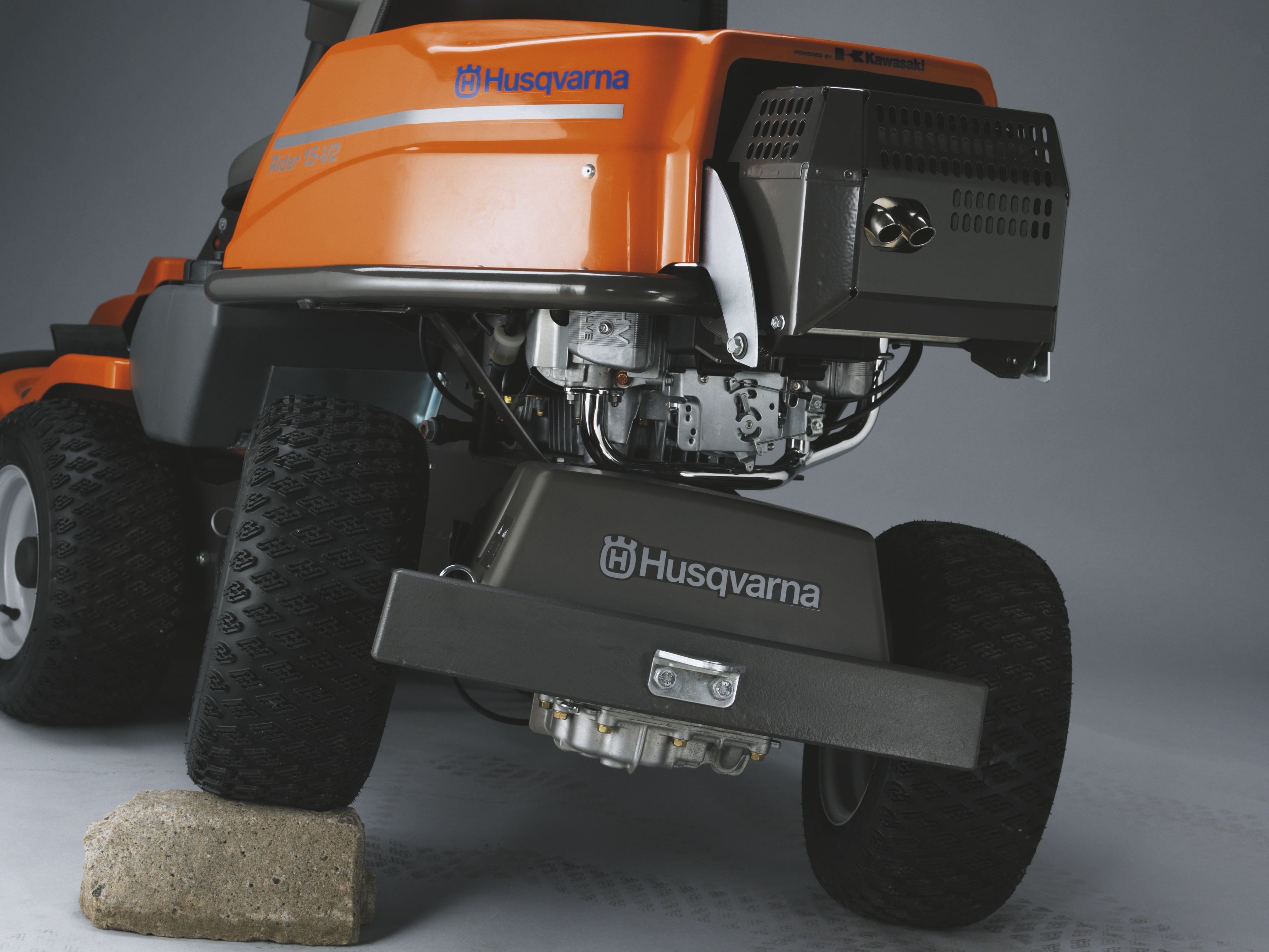

Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

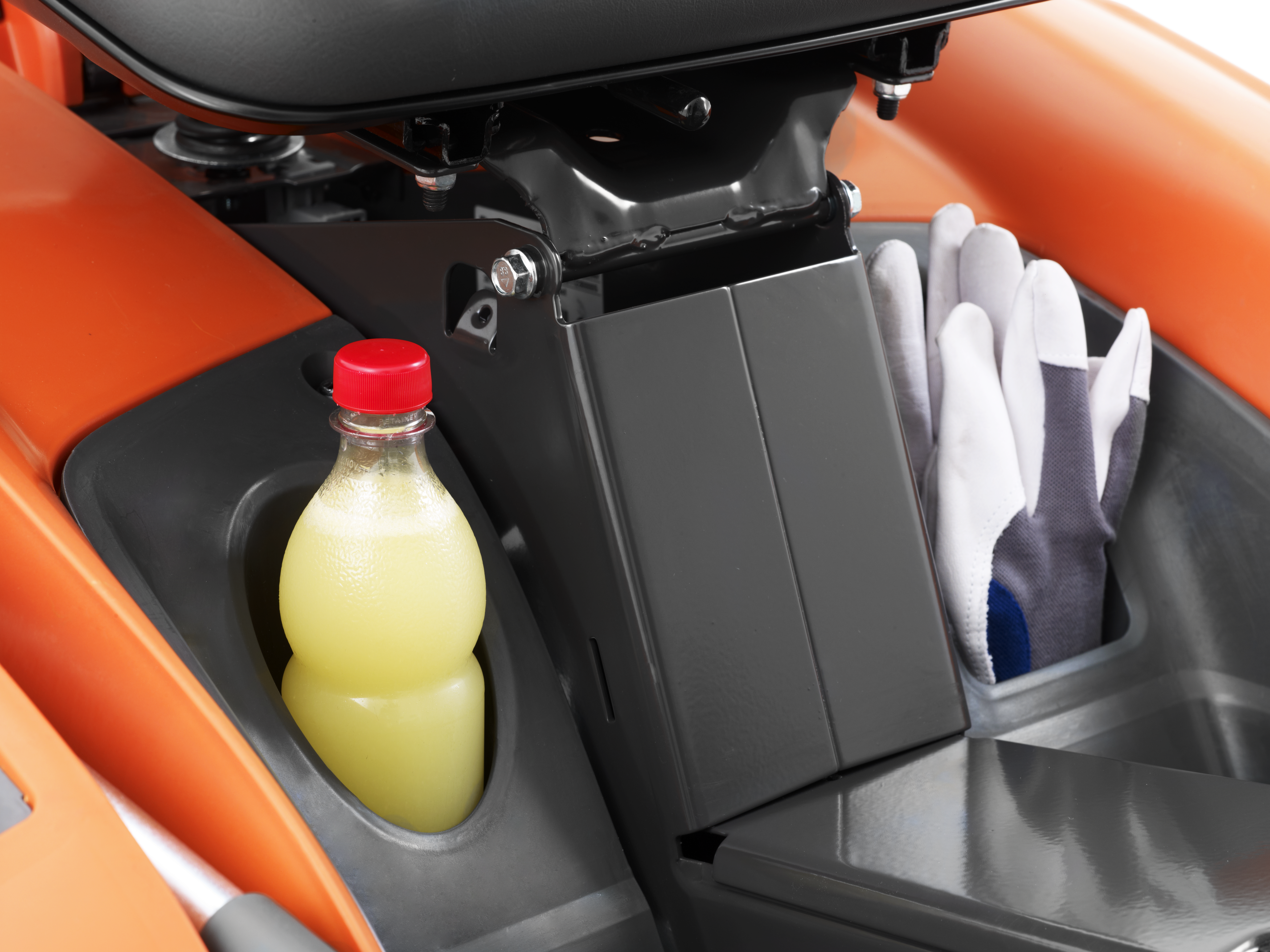

Storage compartment
The open left storage makes it easy to access your items while mowing.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Hour meter
Hour meter for easy control of operating time and service and maintenance intervals.
Bottle holder
Convenient bottle holder for refreshments.
Unique articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.
Combi cutting deck
The Combi cutting deck allows you to choose between two cutting systems depending on the conditions. Choose BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.

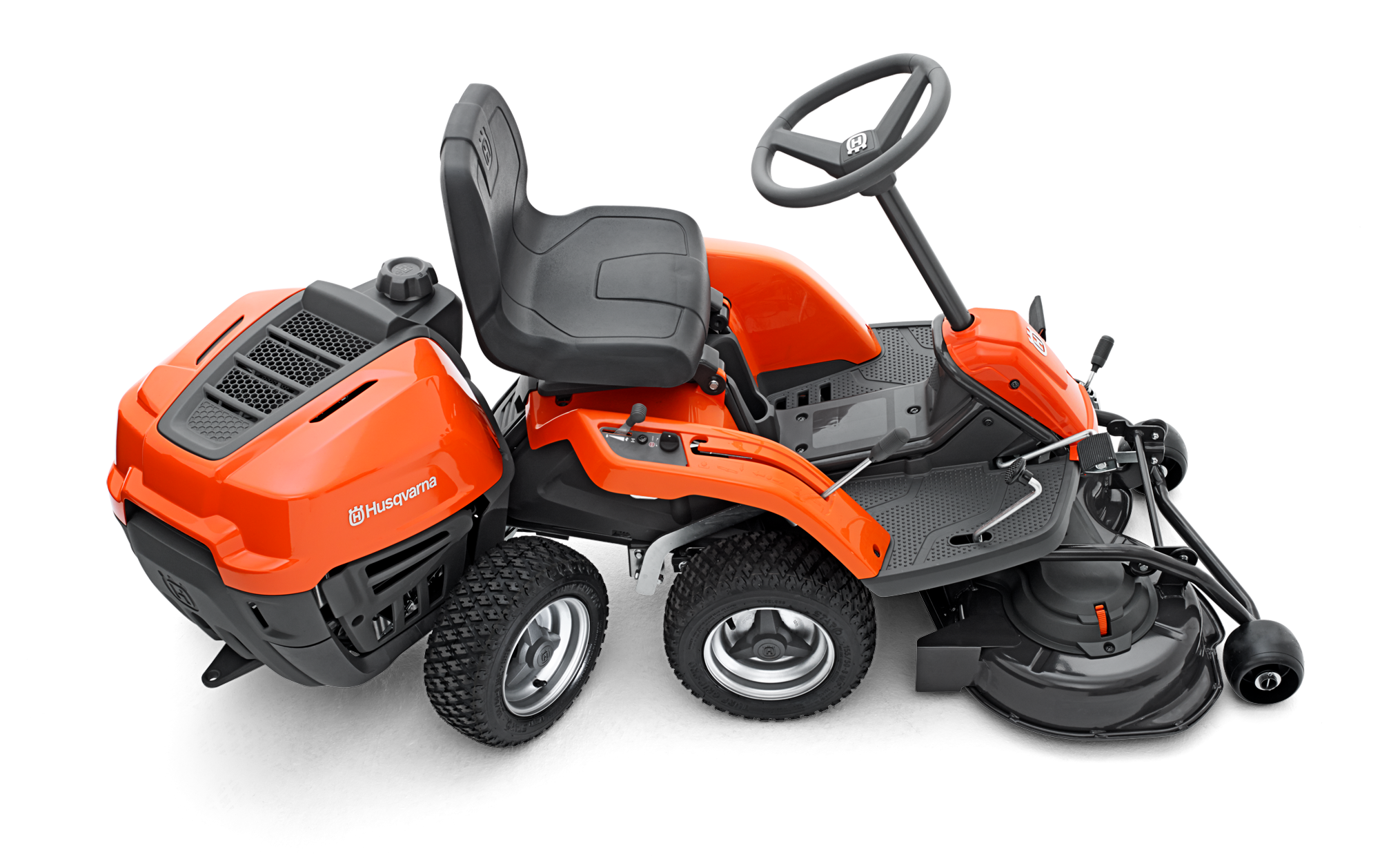

Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.
Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc.
Versatile usage
A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.
Features
Product video
FAQs
Will this fit my machine?
Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.
Do I need any extra brackets or fitting kits?
Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.
Can you fit it for me?
Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).
What cutting modes does the R 214C offer?
The Combi 94 cm cutting deck supports BioClip® (mulching) for frequently cut lawns and rear ejection for efficient cutting of higher or coarser grass—you can choose the system to suit the condition of the lawn.
How do I clean and service the cutting deck?
The cutting deck tilts into a service position to give clear access for cleaning and routine maintenance. Blades engage automatically when the deck is lowered, so follow the operator manual for safe procedures before any work.
Will the R 214C handle uneven ground and tight turns?
Yes. The pivoting rear axle improves traction and ride on uneven surfaces, while the articulated steering and front-mounted deck allow tight turning and good access under obstacles.
Additional information
| Weight | 227.500 g |
|---|---|
| UPC|EAN | 7392930675490 |
