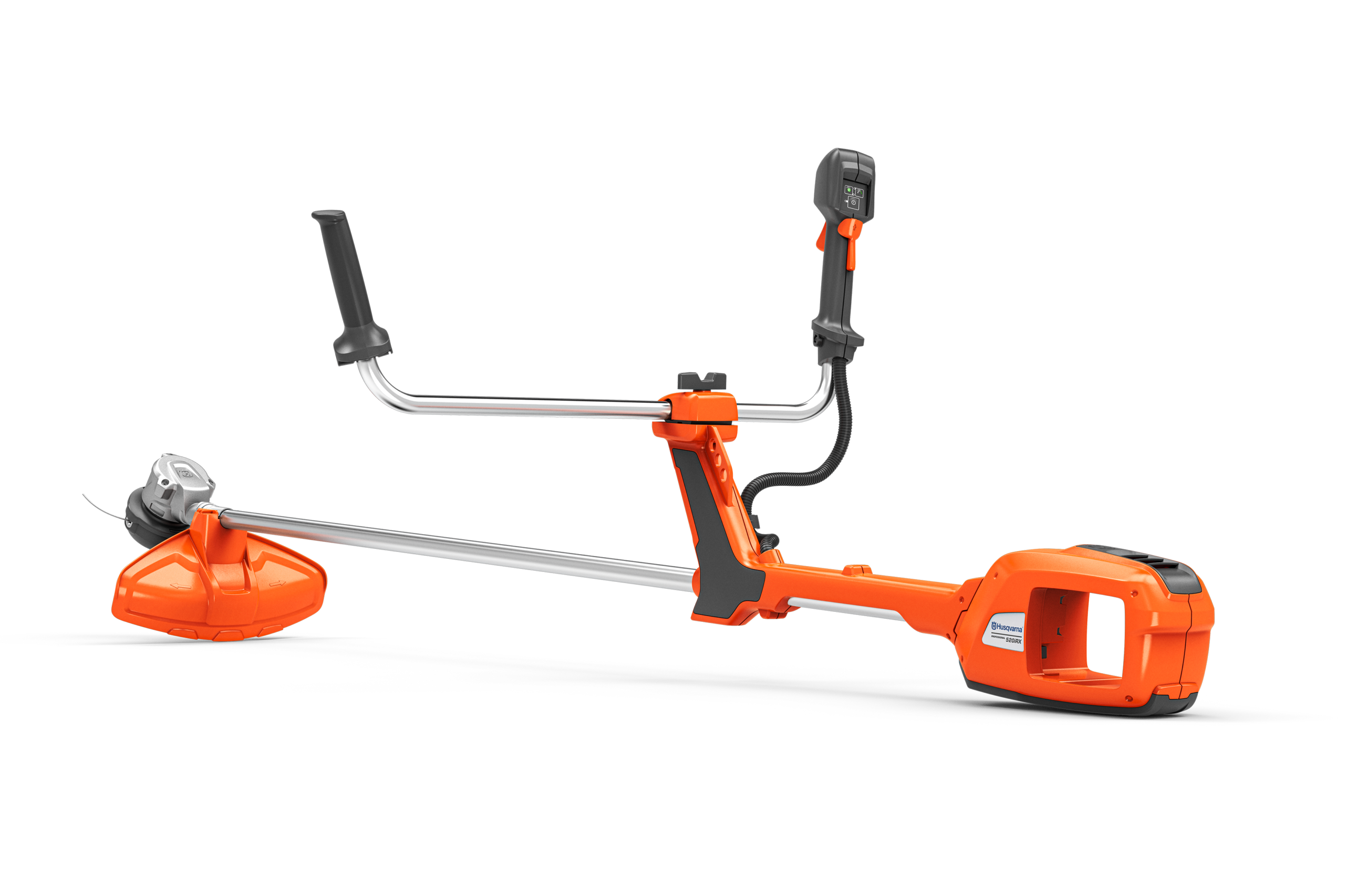

Husqvarna 520iRX Strimmer

SKU: 967916203 Category:

£399.61 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

Product overview

A lightweight, battery-powered bullhorn trimmer designed for professional use. The 520iRX features a brushless motor, two-way rotation trimmer head and well-balanced ergonomics. The package includes the unit, Balance 35B harness and Grass 255-4 blade — battery and charger are not included.

Lightweight and well balanced

At 3.8 kg (excl. battery and cutting equipment) and with a compact construction, the 520iRX is easy to manoeuvre for long periods and on slopes.

Efficient brushless motor with consistent output

The in-house BLDC brushless motor is described as 25% more efficient than a standard brush motor and, together with Linear Power Output, maintains high torque up to the specified 5,500 rpm.

Dual-direction cutting and high line capacity

The trimmer head can change rotational direction to reduce grass on walkways. The T25B head offers heavy-duty twin-line cutting with Tap’n Go for quick line feed.

Key specification
Article ID 967916203
Battery system Lithium Ion
Battery voltage 36 V
Motor type BLDC (brushless)
Weight 3.8 kg
Full specification
Product size height 28 cm
Product size length 176 cm
Product size width 9 cm
Battery Chemistry Lithium Ion
Battery voltage 36 V
Motor type BLDC (brushless)
Maximum power speed 5500 rpm
Maximum rpm output shaft 5500 rpm
Cutting width (metric) 40 cm
Connectivity Not applicable
Sound pressure level at operators ear (LpA) 76.1 dB(A)
Sound power level, guaranteed (LWA) 96 dB(A)
Equivalent vibration level (ahv, eq) left handle 1.2 m/s²
Equivalent vibration level (ahv, eq) right handle 0.7 m/s²
Gear ratio 1
Drive gear angle 35 °
Weight (excl. battery and cutting equipment) (metric) 3.8 kg
Tube diameter (metric) 24 mm
Tube length (metric) 970 mm
Grass blade Grass 255-4
Harness Balance 35B
Saw blade Not included
Trimmer head T25B
Handle type Bullhorn
Weight (excl. battery) (metric) 3.8 kg
Packaging length 1850 mm
Packaging width 211 mm
Packaging height 291 mm
Power source Battery
WEEE Classified Yes
Battery charger Not included
Product size width (imperial) 64 in
Battery Not included
Number of batteries included 0
Product size length (imperial) 69.29 in

Key features

Dual direction

Dual direction

The rotational direction of the trimmer head can be changed for less grass on walk ways.

Battery Through Body Design (Pat.pend.)

Battery Through Body Design (Pat.pend.)

Smart battery pack position, placed horizontally through the body of the machine. Reduces the risk of having dirt, chips, dust and water accumulate in the battery compartment, causing connector issues. Also, it means the weight of the battery can be placed in or near the desired centre of gravity and in the rotational axis of the product, resulting in increased maneuverability. The through body design also offers a high degree of flexibility since it allows battery packs of different sizes to be used.

Efficient brushless motor

Efficient brushless motor

Our in-house developed, advanced brushless motor is 25 % more efficient than a standard brush motor. This means that the motor provides a high and consistent torque – even when you cut high, thick or wet grass.

Linear Power Output

Linear Power Output

Specially selected components, intelligent electronics, and an efficient cooling system ensure consistent, high output power regardless of the battery’s charge level. This helps maintain productivity throughout use.

Weatherproof (IPX4)

Weatherproof (IPX4)

This battery-powered Husqvarna machine fulfils the IPX4 classification for rain resistance. This makes it a long-lasting and reliable tool that can be used all year round in all weather conditions.

High handle bar

High handle bar

High handle bar increases freedom of movement when working on slopes.

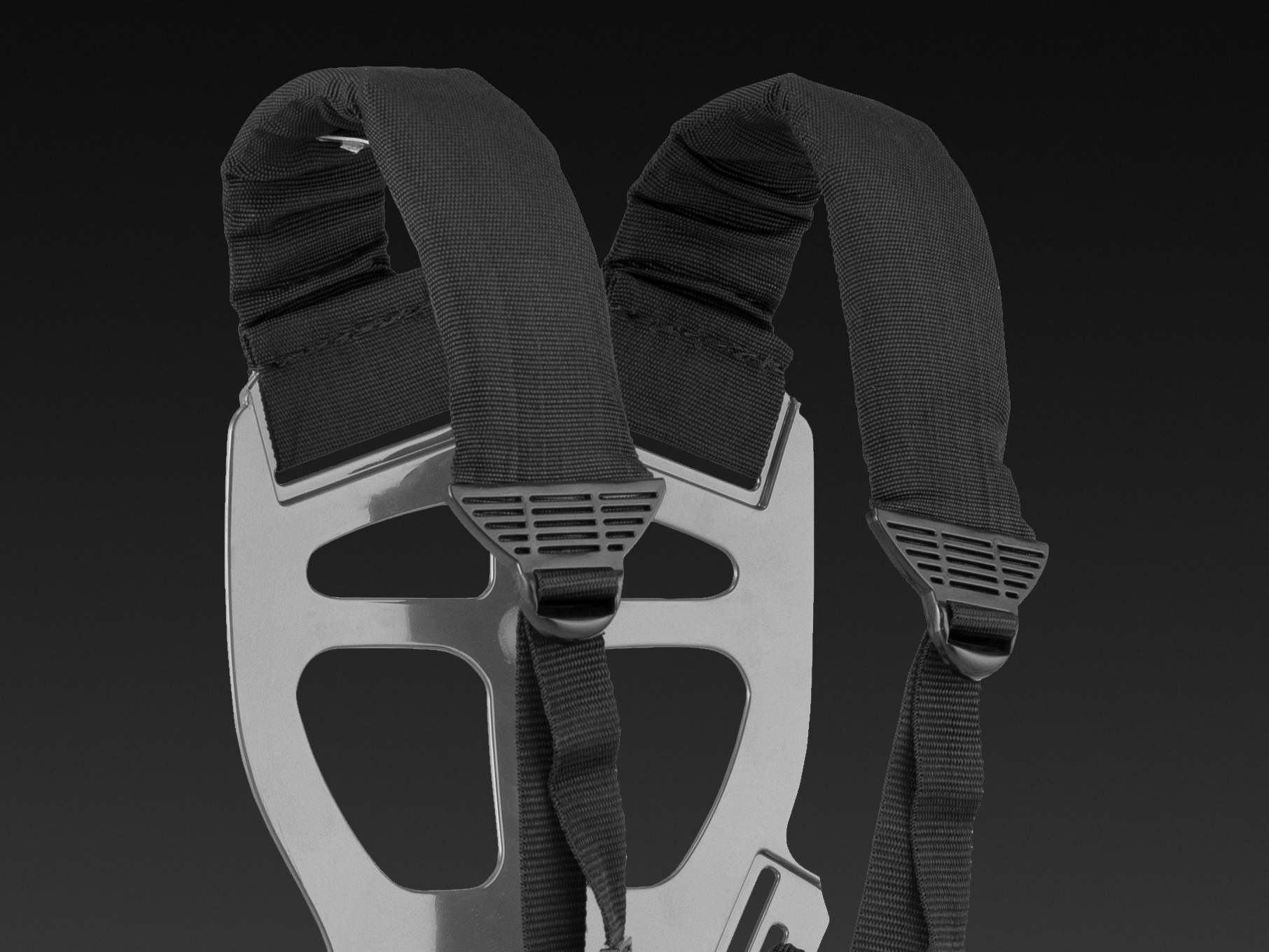

Comfortable harness

Comfortable harness

The harness with padded shoulder straps distributes the load optimally your shoulders, chest and back.

Lightweight and well balanced

Lightweight and well balanced

Our machines have a compact, slimmed construction with the front handle close to the centre of gravity. This makes them lightweight and well balanced – allowing you to work comfortably in all situations.

Intuitive keypad

Intuitive keypad

The battery machines are operated using an interactive keypad. You start and stop the machines easily by pushing a button. There’s also a savE button for maximising the runtime. The trimmers have an extra button for changing the trimmer head’s direction of rotation.

Maximum runtime

Maximum runtime

Choose between normal or savE™ mode, depending on conditions, for maximum power or maximum runtime. Either way, you’ll always get a perfect result.

Synchronized Output

Synchronized Output

This technology features intelligent interaction between the tool and battery, ensuring optimized output power for each specific combination. To extend battery life, the output power can also be temporarily adjusted in situations where the tool is used too intensively.

Interchangeable Battery System

Interchangeable Battery System

Able to be used in all Husqvarna battery tools, our lithium-ion batteries are durable, easy to swap and recharge quickly

Power-Conserving savE™ Mode

Power-Conserving savE™ Mode

SavE™ mode maximises the run time, reduces noise levels and preserves product battery life by lowering the rpm. Ideal for tasks that do not require full power. Just press the button to turn savE™ mode on and off.

Quiet Operation

Quiet Operation

Low noise levels create pleasant work and enable longer working hours, even in the most public settings. The noise level from our battery machines is up to 13 dB(A) lower than a petrol machine. A reduction of 3 dB(A) is usually perceived as a halving of the noise level.

High Line Capacity

High Line Capacity

Heavy duty twin line cutting system with Tap’n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.

Low Maintenance

Low Maintenance

No fuel refilling, fewer parts and electronically-controlled drive system for less downtime

Low Carbon Emissions

Low Carbon Emissions

By choosing this product, you can feel confident that it produces lower carbon emissions during active use compared to a traditional petrol product. This battery-driven product does not emit any CO₂ during use while still providing the power and quality that you expect from a Husqvarna product. However, it’s important to note that CO₂ emissions are generated during other stages of the product´s lifecycle, such as production, charging and end-of-life disposal.

Features

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

Is the battery included?

No. The 520iRX is supplied without battery or charger. It accepts Husqvarna lithium-ion battery packs at 36 V (interchangeable across Husqvarna battery tools). Batteries and chargers are sold separately.

Can I use the trimmer in the rain?

The machine is rated IPX4 for rain resistance and is designed for year-round use in normal wet conditions. Avoid submersion and follow standard good practice to keep connectors and batteries dry where possible.

What cutting options are provided?

The 520iRX comes with a Grass 255-4 blade and a T25B twin-line Tap’n Go trimmer head. Cutting width with line is approximately 40 cm; use the blade for heavier vegetation and the head for edging and lighter work.

Additional information

Weight 3.800 g
UPC|EAN

7391883947593
