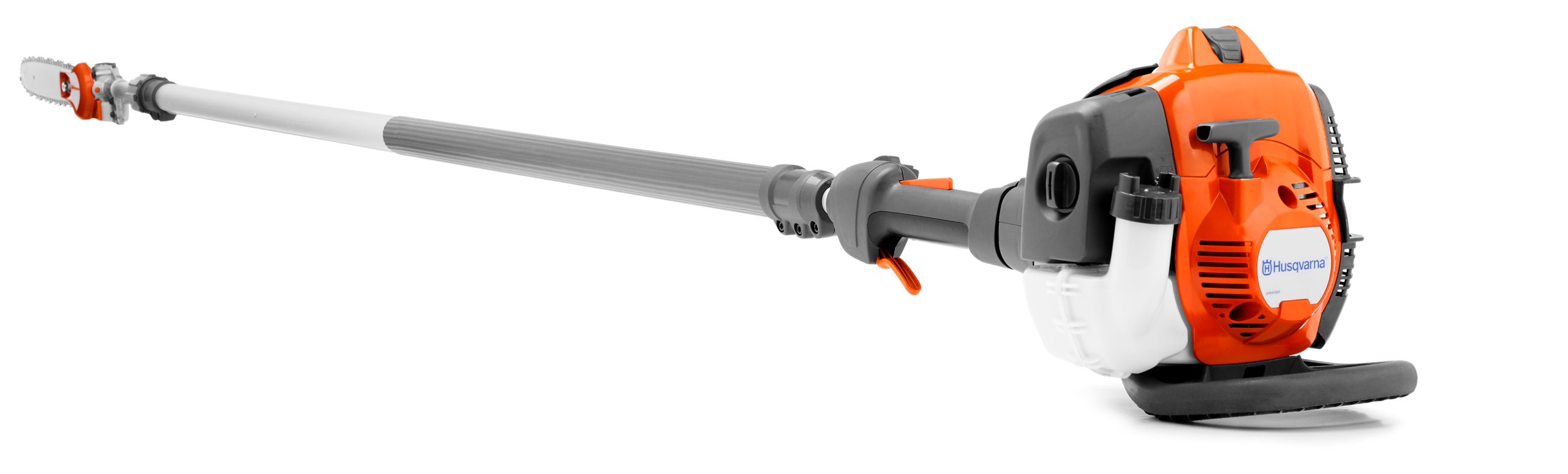

Husqvarna 525PT5S

Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.

Intuitive controls
All controls are designed to be easy to understand and use.

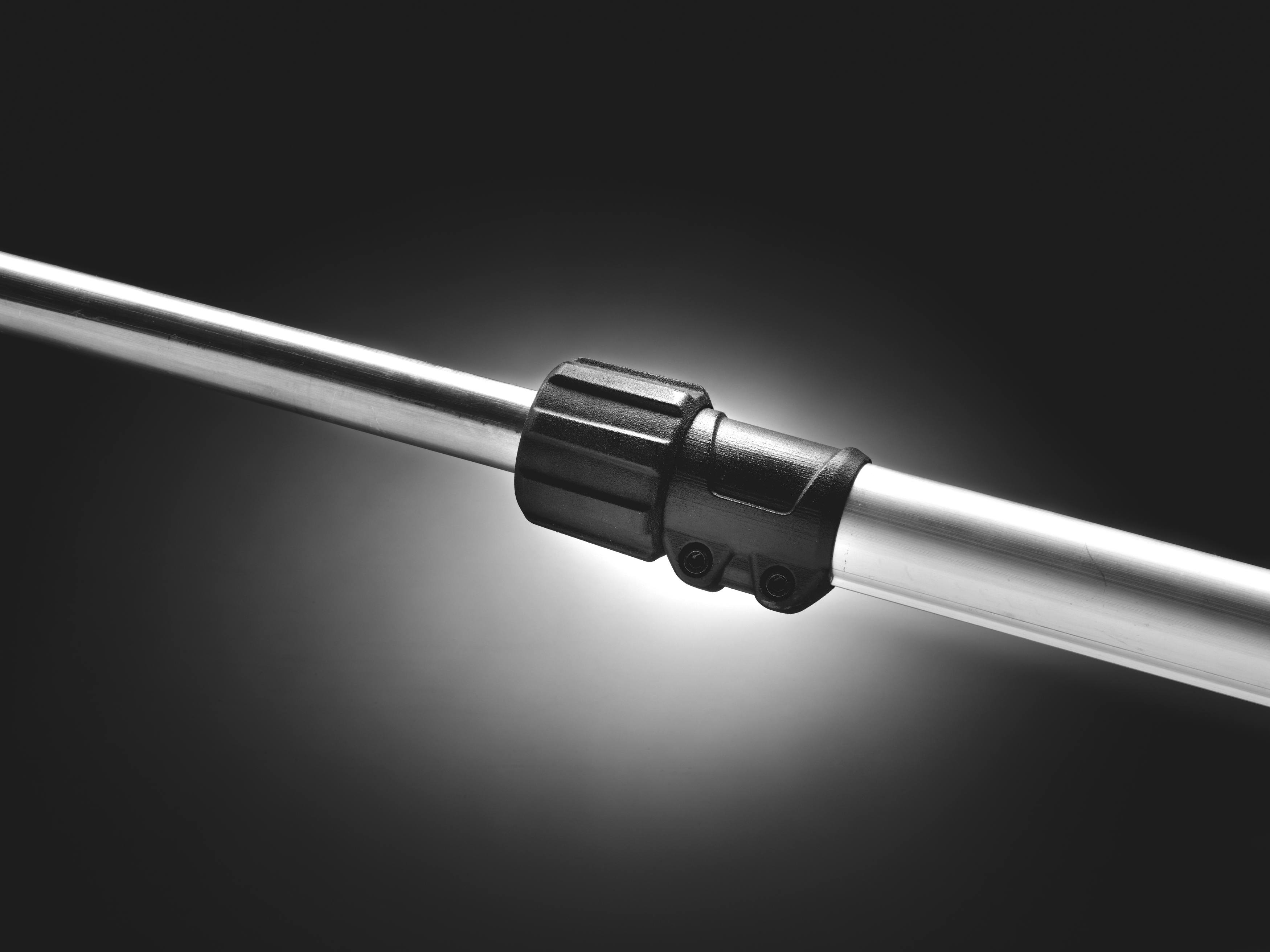

Telescopic tube
The tube has a telescopic function for quick cutting height adjustment

Magnesium clutch housing
Robust magnesium clutch housing for tough professional use, ensuring a long service life.

Rear impact guard
The rear-impact guard protects the engine from wear and damage.

Chain lubrication
Adjustable, automatic chain lubrication.

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

Efficient air filter
The efficient air filter provide less cost for service and less engine wear

Stand alone starter
The stand alone starter makes it easy to change starter cord if needed.

Metal skid plate
Durable metal skid plate protects the engine and fuel tank.

X-Torq engine
The X-Torq engine design increases torque over a wider rpm range providing maximum cutting power.

Engine

Cylinder displacement
25.4 cm3

Output shaft power
1
1 kW

Fuel tank volume
0.51 l

Oil tank volume
0.14 l

Emission

Exhaust emissions (CO2 EU V)
2
1,141 g/kWh

Control

Connectivity
Not applicable

Capacity

Chain speed at max power (m/s)
20.5 m/s

Equipment

Chain pitch
1/4″

Bar length (inch)
10 in

Nose type
Sprocket nose

Chain type
H00

Harness
Single harness

Dimensions

Weight (excl. cutting equipment)
7 kg

Full length, including cutting equipment
402 cm

Length, extended, including cutting equipment
402 cm

Length, transportation mode – metric
287 cm

Sound and noise

Sound pressure level at operators ear (LpA)
89 dB(A)

Sound power level, guaranteed (LWA)
107 dB(A)
