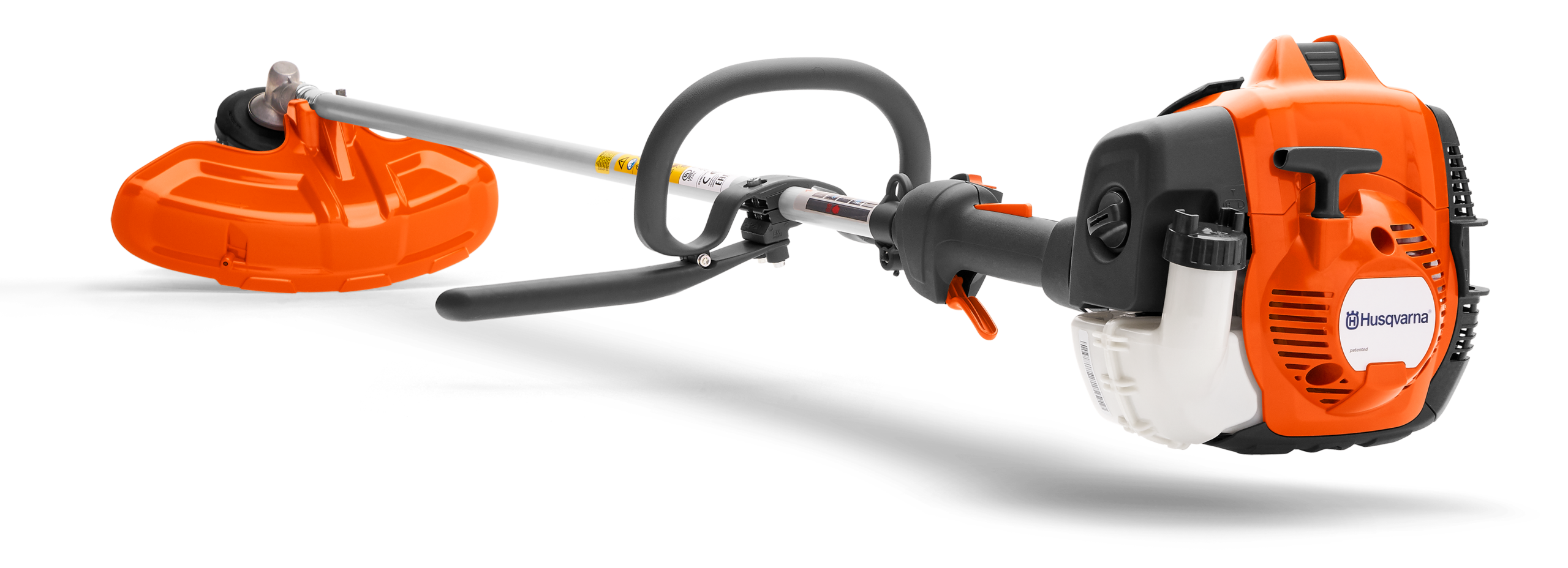

Husqvarna 525RJX Strimmer

Intuitive controls
All controls are designed to be easy to understand and use.

J-handle
Equipped with J-handle for greater versatility.

Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.

X-Torq engine
The X-Torq engine design increases torque over a wider rpm range providing maximum cutting power.

Easily adjustable single harness
Single harness that is easy to fit and adjust. Provides basic support and a more comfortable working position

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

High Line Capacity
Heavy duty twin line cutting system with Tap’n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.

Smart Start Technology
Specially-designed engine and starter for easy and fast starting with minimum effort

Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

Comfort handle
Soft-grip handles for optimum comfort.

Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.

Engine

Cylinder displacement
25.4 cm3

Output shaft power
1
1 kW

Fuel tank volume
0.51 l

Fuel Consumption
600 g/kWh

Maximum power speed
8,500 rpm

Idling speed
3,000 rpm

Maximum rpm output shaft
6,500 rpm

Electrode gap
0.65 mm

Clutch engagement speed (±120)
4,000 rpm

Torque, max.
1.2 Nm

Torque, max. at rpm
6,000 rpm

Spark Plug
NGK BPMR8Y

Equipment

Grass blade
Grass 255-4

Harness
Single harness

Saw blade
Not included

Trimmer head
T35 M10

Handle type
J handle

Control

Connectivity
Not applicable

Capacity

Cutting width
45 cm

Transmission

Gear ratio
19

Drive gear angle
30 °

Dimensions

Tube diameter
24 mm

Weight (excl. cutting equipment)
4.3 kg

Tube length
1,483 mm

Lubricant

Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)
Mineral grease

Sound and noise

Sound pressure level at operators ear (LpA)
94 dB(A)

Sound power level, guaranteed (LWA)
106 dB(A)

Emission

Exhaust emissions (CO average) EU
87.57 g/kWh

Exhaust emissions (CO average) EPA
206.73 g/kWh

Exhaust emissions (NOx average) EU
0.56 g/kWh

Exhaust emissions (CO2 EU V)
2
1,141 g/kWh
