Husqvarna 535RXT 1″ Strimmer

X-Torq engine
The X-Torq engine design increases torque over a wider rpm range providing maximum cutting power.

LowVib
Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.

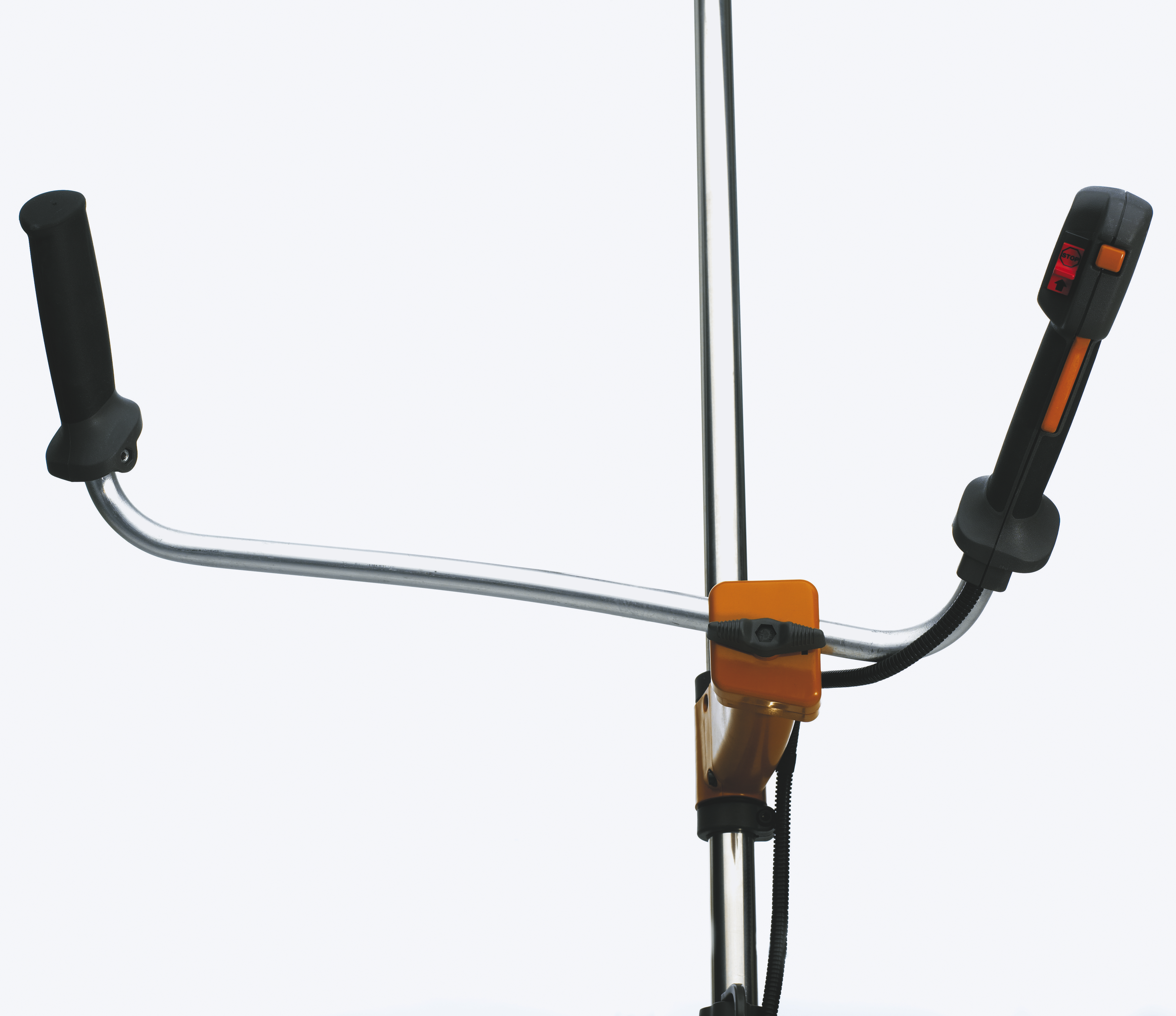

Offset handle bar
Angled handlebar and comfort handles provides excellent grip and working position.

Trio-Balance
Ergonomic harness with broad back support, shoulder straps and hip belt that distributes the load over a larger area.

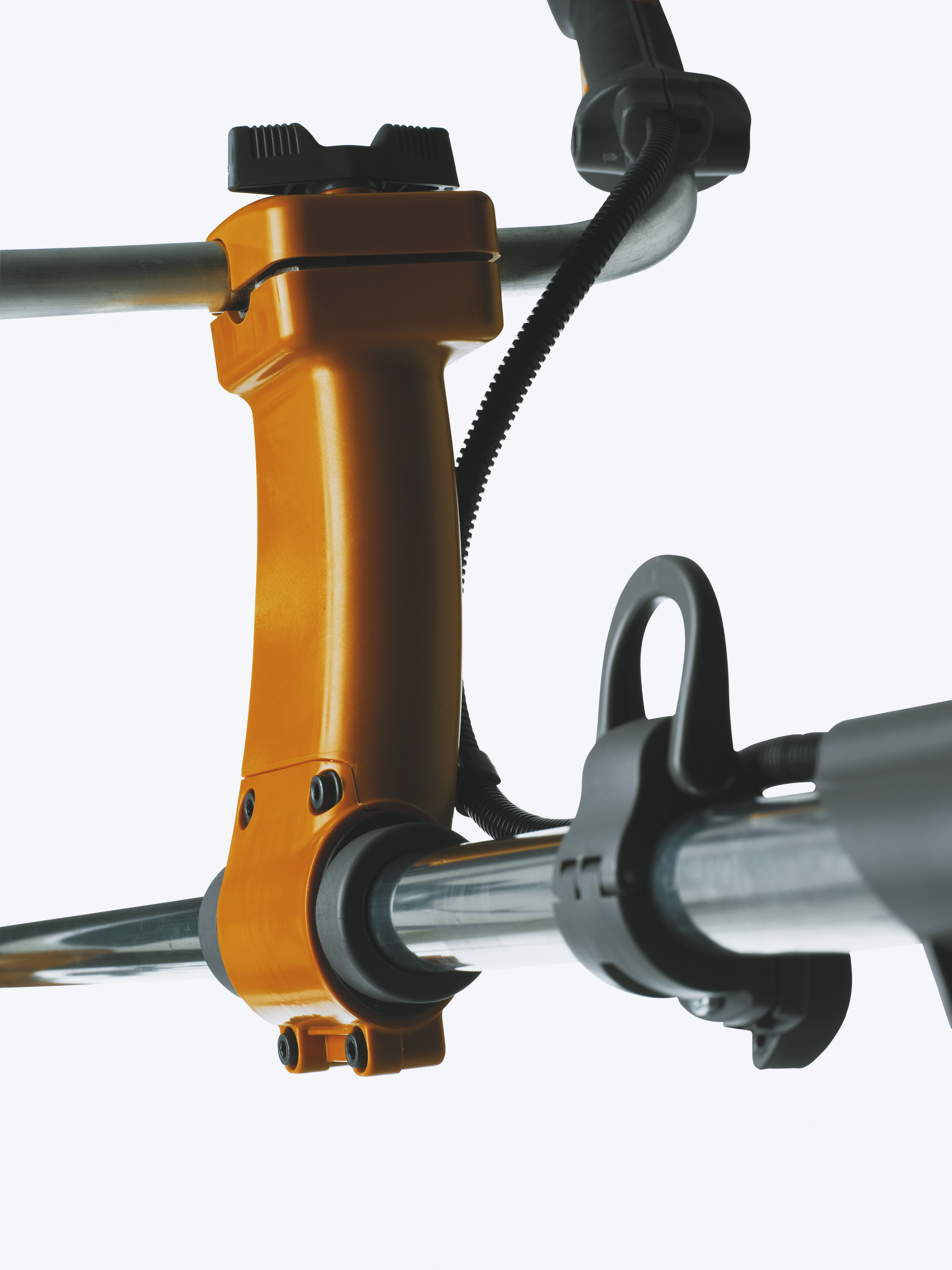

High offset post
High offset post increases freedom of movement when working on slopes.

High Line Capacity
Heavy duty twin line cutting system with Tap’n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.

Auto return stop switch
When the machine is turned off, the stop button automatically returns to start position for trouble free start.

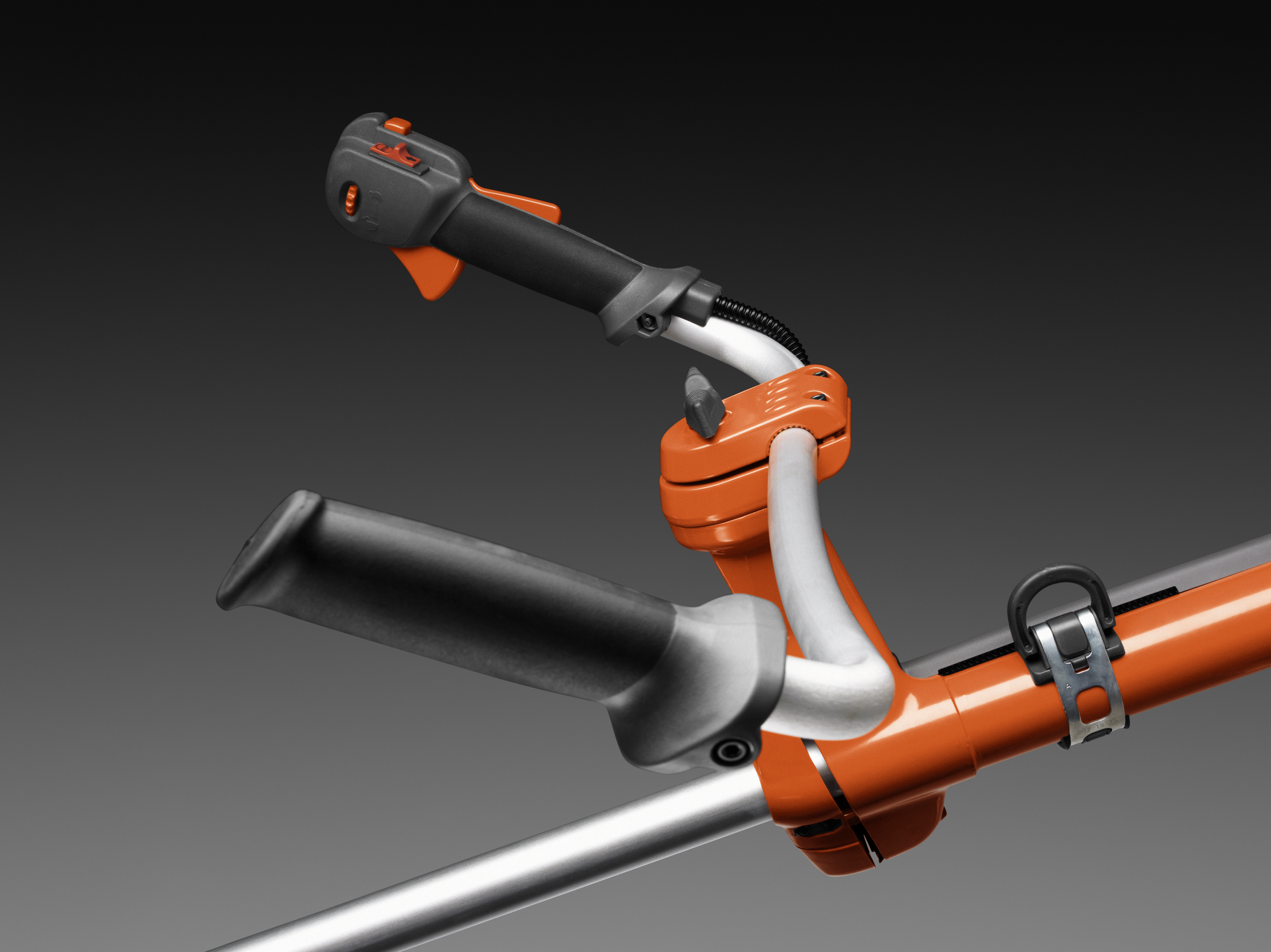

Adjustable handle bar
Adjustable and ergonomically designed handlebar for best comfort.

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.

Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

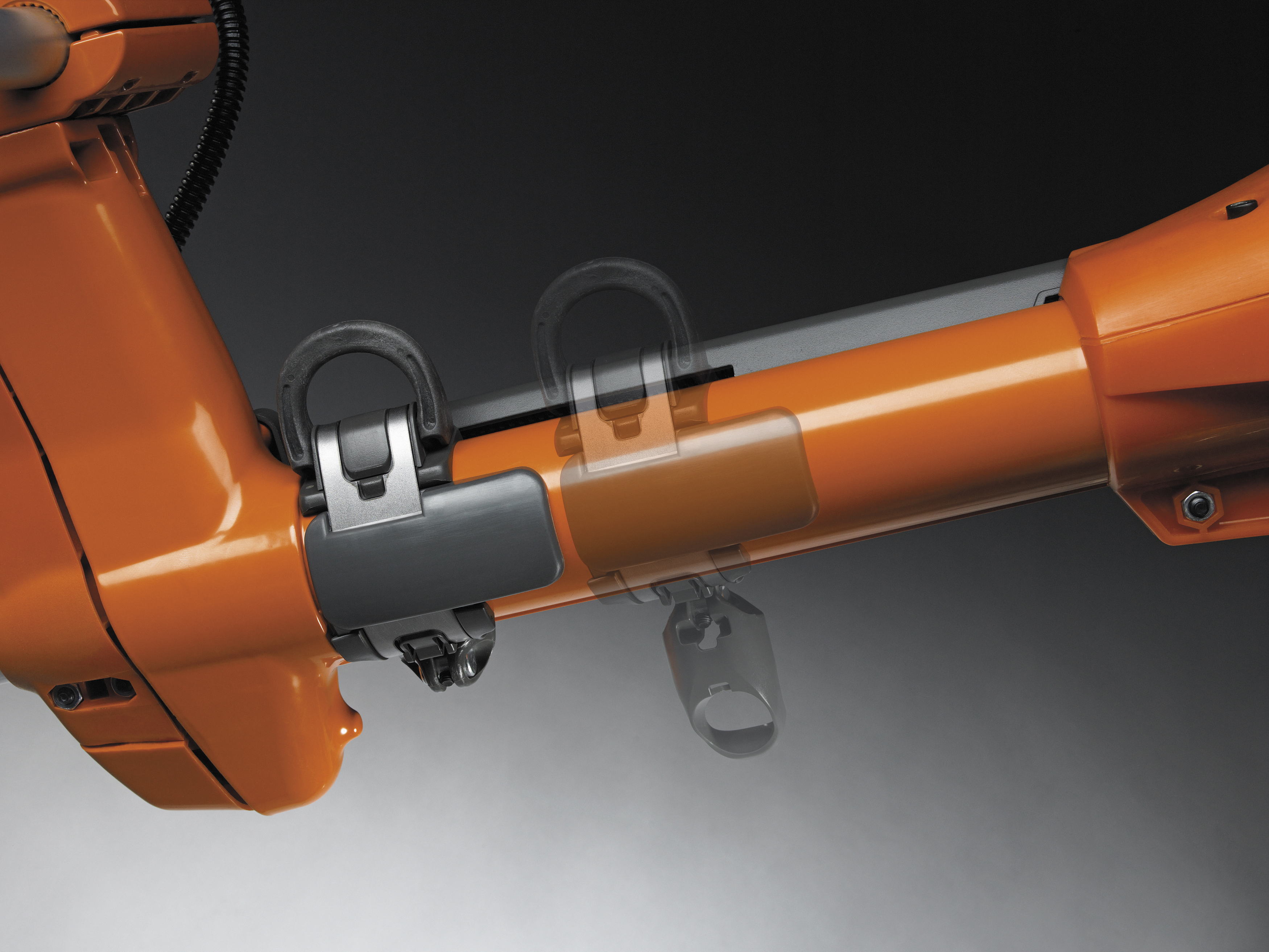

Adjustable harness hook eyelet
Adjustable eye let for best balance

Engine

Cylinder displacement
34.6 cm3

Output shaft power
1
1.4 kW

Fuel tank volume
0.6 l

Fuel Consumption
475 g/kWh

Maximum power speed
8,400 rpm

Idling speed
2,900 rpm

Maximum rpm output shaft
8,220 rpm

Electrode gap
0.5 mm

Clutch engagement speed (±120)
3,600 rpm

Torque, max.
1.9 Nm

Torque, max. at rpm
6,600 rpm

Spark Plug
Champion RCJ6Y

Equipment

Grass blade
Multi 300-3

Harness
Balance X

Saw blade
Not included

Trimmer head
T35 M12

Handle type
Bullhorn

Control

Connectivity
Not applicable

Capacity

Cutting width
47 cm

Transmission

Gear ratio
1.4

Drive gear angle
35 °

Dimensions

Tube diameter
28 mm

Weight (excl. cutting equipment)
6.7 kg

Tube length
1,483 mm

Lubricant

Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)
Mineral grease

Sound and noise

Sound pressure level at operators ear (LpA)
96 dB(A)

Sound power level, guaranteed (LWA)
114 dB(A)

Emission

Exhaust emissions (HC average) EU
40.51 g/kWh

Exhaust emissions (HC average) CARB
29.31 g/kWh

Exhaust emissions (CO average) EU
418.31 g/kWh

Exhaust emissions (CO average) EPA
243.69 g/kWh

Exhaust emissions (NOx average) EU
0.46 g/kWh

Exhaust emissions (NOx average) EPA
1.09 g/kWh

Exhaust emissions (CO2 EU V)
2
862 g/kWh

Vibration

Equivalent vibration level (ahv, eq) left handle
2.4 m/s²

Equivalent vibration level (ahv, eq) right handle
3.1 m/s²
