Husqvarna Automower 535 AWD EPOS
£5,299.00 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk

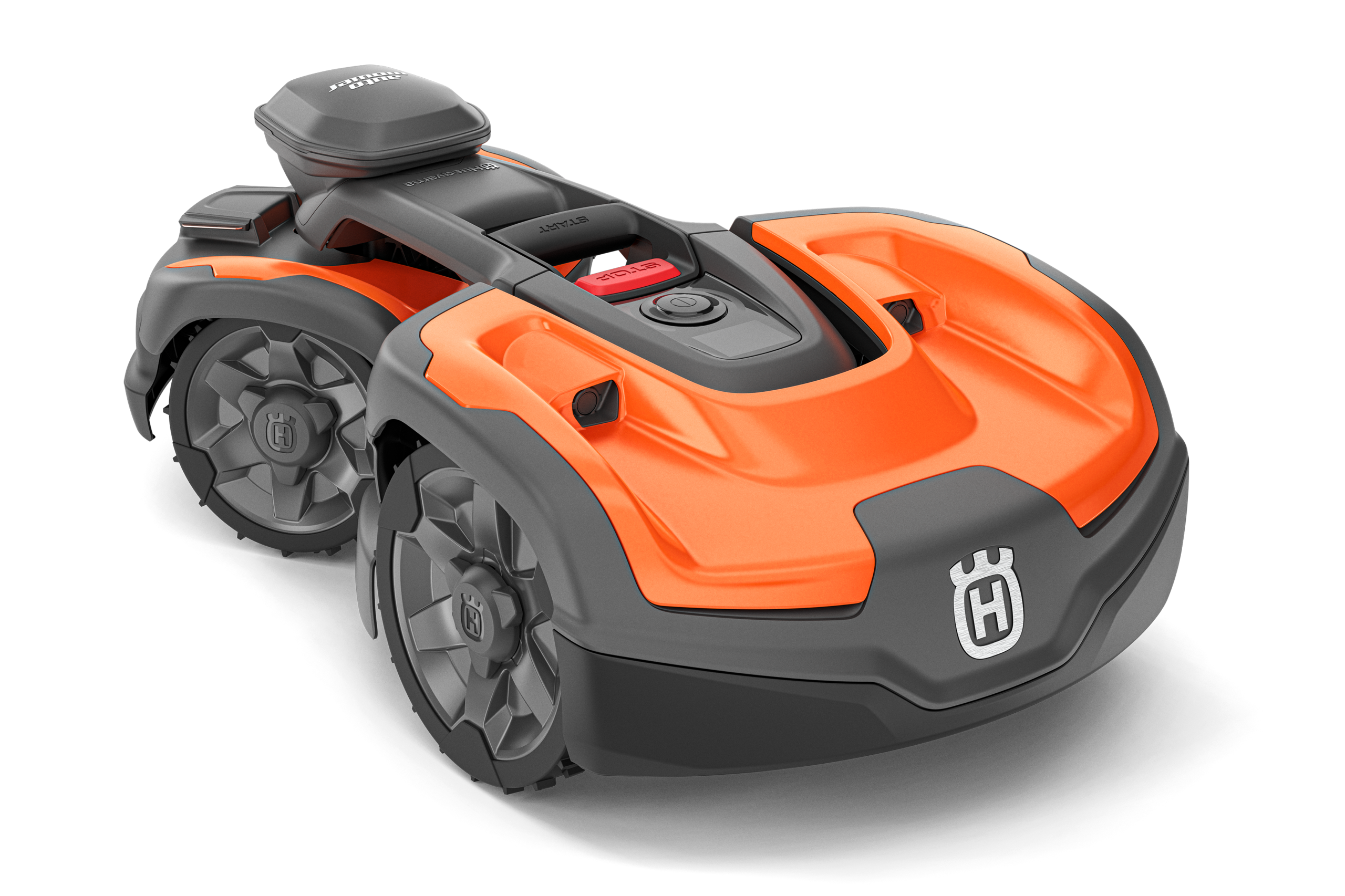

Husqvarna Automower® 535 AWD EPOS®
Commercial robotic mower with all-wheel drive for demanding terrain and EPOS® wire-free technology (virtual boundaries). Also supports physical wire if required.
Working area: 6,000 m² (±20)
Boundary type: Virtual wire + physical wire
Slopes up to 70% (inside)
App: Husqvarna Fleet Services™
EPOS®: RS5 Reference Station required for wire-free
All-wheel drive, wire-free flexibility — built for steep, complex commercial turf.
Automower® 535 AWD EPOS® is developed for challenging areas in professional turf care — steep slopes, uneven ground, rough terrain and multiple scattered work areas. The AWD system controls each wheel for traction and stability, while the articulated rear body improves manoeuvrability.
You can install it wire-free using EPOS® (virtual boundaries with ~2 cm accuracy) or run it with physical wire if your site demands it. Manage zones, cutting height and patterns, and add temporary stay-out areas via Husqvarna Fleet Services™.
Key features & benefits
- AWD traction + articulated body for tough terrain, obstacles and steep slopes.
- EPOS® wire-free boundaries (virtual map) with ~2 cm accuracy — no perimeter wire to cut or repair.
- Hybrid capable: boundary type supports virtual wire and physical wire.
- Manages slopes up to 70% (35°) inside the installation; up to 50% at the boundary.
- Selectable mowing patterns with EPOS® (parallel lines, diamonds, triangles, checkerboard) for a cleaner visual finish.
- Customised work areas — unique schedules, cutting heights and patterns per zone.
- Temporary stay-out zones for events, reseeding, construction work, or sensitive areas.
- EPOS® guidance calculates efficient routes to/from the docking point.
- Maintenance point — send the mower to a marked service/cleaning parking spot on command.
- appDrive remote operation for moving between areas during installation or service.
- Warning lights (pulsating/solid) for visibility during night operation.
- Remote object detection (ultrasonic) helps reduce hard collisions.
- Electric cutting height adjustment via app.
If you’re choosing wire-free EPOS®, plan for an EPOS® RS5 Reference Station (required) and good sky view over the mowing area.
Quick overview
- Working area capacity (±20)6,000 m²
- Boundary typeVirtual wire / Physical wire
- Max slope (inside installation)70%
- Max slope (at boundary)50%
- Cutting height30–70 mm (electric)
- Cutting width22 cm
- Cutting system5 pivoting razor blades
- ConnectivityBluetooth® + Cellular
- Typical mow / charge145 min
- Typical charge time45 min
- Sound level (perceived)60 dB(A)
- Weight18.1 kg
Installation and what you need
Option A: Wire-free (EPOS® virtual boundaries)
- Define boundaries, work areas, transport paths and stay-out zones in the app.
- EPOS® RS5 Reference Station is required for wire-free operation (not included).
- Best performance with a clear view of the sky across the mowing area (stable satellite positioning).
- Ideal when you expect boundary changes, multiple zones, or frequent temporary restrictions.
Option B: Physical wire (traditional boundary)
- Install boundary wire (and guide wire(s) if required) to define the mowing area.
- Useful where satellite conditions are limited or where you prefer a fixed perimeter.
- Requires an installation kit (wire, pegs, connectors) — typically sold separately.
If you’re unsure which boundary type fits your site, share a simple lawn plan (areas, slopes, passages, obstacles) and we’ll recommend the cleanest setup.
What’s included
Included
- Charging station
- Power supply unit
- Low voltage cable (10 m)
Not included (common add-ons)
- EPOS® RS5 Reference Station (required for wire-free EPOS®)
- Extra blades
- Wheel brushes
- Installation kit (for wired setups)
FAQs
Is this model wire-free, hybrid, or fully wired?
It’s hybrid capable: boundary type supports virtual wire (EPOS®) and physical wire. Most professional installs choose EPOS® for flexibility, but wired setups are possible where needed.
Do I need an EPOS® reference station?
For wire-free EPOS® operation, yes — EPOS® RS5 Reference Station is required and is not included. If you plan a physical wire installation instead, we’ll confirm the best approach for your site.
What makes 535 AWD EPOS® different from non-AWD commercial mowers?
The all-wheel drive and articulated rear body are designed for steep slopes and rough terrain. It’s rated for up to 70% incline inside the installation.
Can it manage multiple zones and temporary no-mow areas?
Yes. You can create customised work areas with different schedules/heights/patterns, and set temporary stay-out zones for events, reseeding, or works.
How is it controlled day-to-day?
This model is built for professional use with Husqvarna Fleet Services™ (Bluetooth® + cellular connectivity), plus a pro interface on the mower for START/STOP and status indication. Firmware updates are delivered via FOTA.
Technical specifications
Capacity
| Working area capacity (±20) | 6,000 m² |
|---|---|
| Boundary type | Physical wire, Virtual wire |
| Maximum slope performance at boundary | 50% |
| Maximum slope performance inside installation | 70% |
| Max active time | 24 h |
| Follow guide | Virtual transport path |
| Charging system | Automatic |
| Area capacity – Standard 48 | 6,000 m² |
| Area capacity – Sports 24 | 3,000 m² |
Overall dimensions
| Weight | 18.1 kg |
|---|---|
| Length | 93 cm |
| Width | 55 cm |
| Height | 33 cm |
Product data & battery
| Colour | Orange |
|---|---|
| Sound level (perceived) | 60 dB(A) |
| Protection Index (IP Code) | IPX4 |
| Battery chemistry | Lithium Ion |
| Battery capacity | 8 Ah |
| Charging current | 7 |
| Typical mow time on one charge | 145 min |
| Typical charging time | 45 min |
| Mean energy consumption per month (max use) | 25 kWh |
Cutting system
| Cutting system | 5 pivoting razor blades |
|---|---|
| Cutting height (min–max) | 30–70 mm |
| Cutting width | 22 cm |
| Cutting height adjustment | Electric |
| Skid plate | Yes |
| Dual cutting direction | Yes |
Control & connectivity
| User interface | Professional User Interface/App |
|---|---|
| Display | None |
| Connectivity | Bluetooth®, Cellular |
| App controlled | Husqvarna Fleet Services |
| Smart Home integration | Yes |
| Firmware update | FOTA |
Safety
| GPS theft tracking | Yes |
|---|---|
| GeoFence | Yes |
| PIN code | Yes |
| Alarm | Yes |
| Lift sensor | Yes |
| Tilt sensor | Yes |
| Object detection | Ultrasonic |
Boundary types — quick comparison
Wire-free EPOS® (virtual)
- Fast boundary changes in-app (ideal for seasonal adjustments and temporary restrictions).
- Multiple work areas and transport paths without laying wire.
- Requires EPOS® RS5 Reference Station.
Physical wire
- Fixed perimeter defined by cable (changes typically mean moving/re-laying wire).
- Useful where satellite conditions are limited or a wired approach is preferred.
Ready to check suitability?
Send your site size, slope areas, and how many zones you need. We’ll confirm whether wire-free EPOS® (with RS5) or a wired setup is the best fit — and list any required accessories.
For steep or rough areas, this AWD platform is designed specifically to keep traction and deliver a consistent finish.
Automower® 535 AWD EPOS®
AWD + EPOS® wire-free • Up to 6,000 m²
