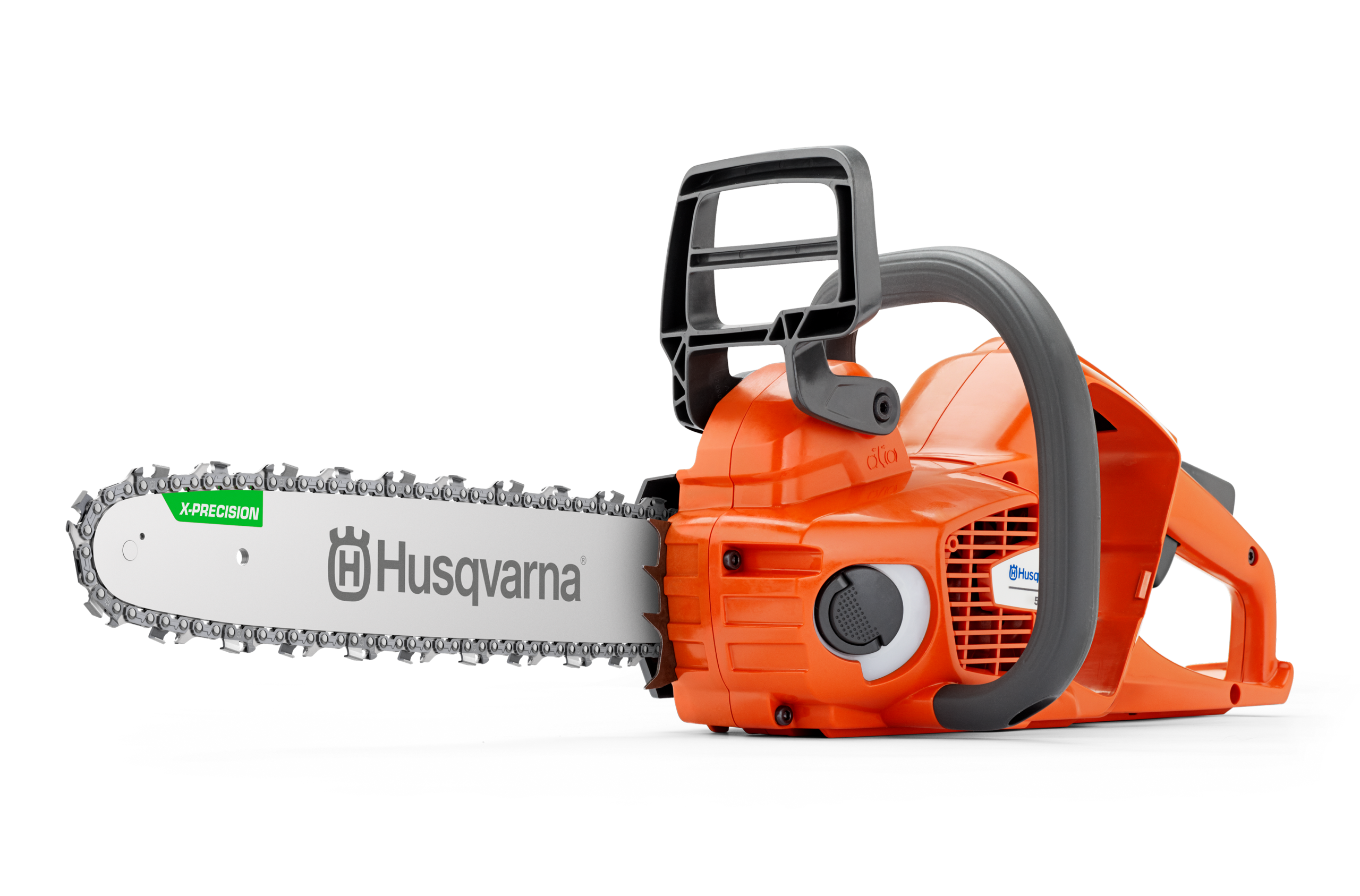

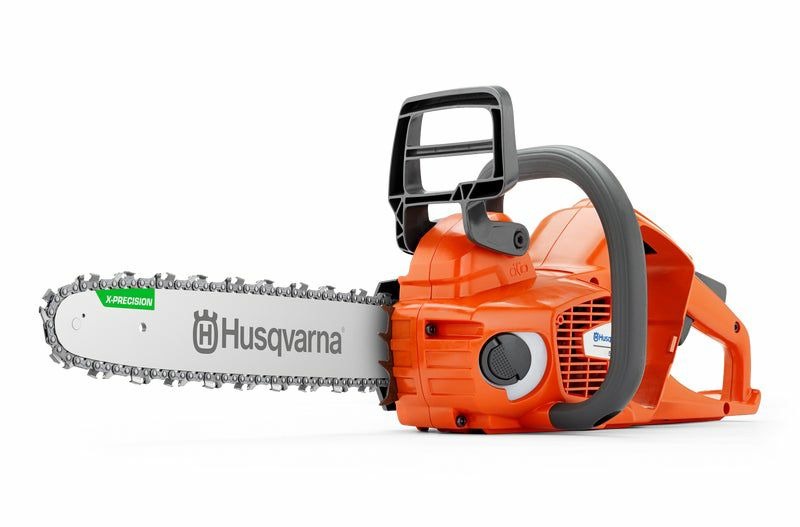

Husqvarna 535i XP® Chainsaw

SKU: 970716514 Category:

£424.15 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

A professional 36 V battery cordless chainsaw designed for tree care and carpentry. The 535i XP® is lightweight yet delivers high chain speed and petrol-comparable performance for demanding tasks. Supplied as body only with a 14 in (35 cm) guide bar — battery and charger are not included. Compatible with Husqvarna lithium‑ion batteries on the same platform.

Lightweight and ergonomic

At 2.6 kg (excl. battery and cutting equipment) it’s easy to manoeuvre for pruning, crown work and overhead cutting, reducing operator fatigue on long jobs.

Petrol-like performance

The brushless motor delivers 1.45 kW output and a high chain speed (20 m/s), giving cutting performance comparable to a small petrol saw but without direct emissions during use.

Efficient battery system

Uses Husqvarna’s interchangeable 36 V lithium‑ion batteries which are durable and quick to swap. savE™ mode extends run time and reduces noise for less demanding cuts.

Key specification
Article ID 970716514
Power output 1.45 kW
Weight 2.6 kg
Bar / blade / cutting length 35 cm
Full specification
Product size height 23 cm
Product size length 43 cm
Product size width 25.5 cm
Battery Chemistry Lithium Ion
Battery voltage 36 V
Output shaft power (metric) 1.45 kW
Sound pressure level at operators ear (LpA) 97 dB(A)
Sound power level, guaranteed (LWA) 108 dB(A)
Weight (excl. battery and cutting equipment) (metric) 2.6 kg
Packaging length 472 mm
Packaging width 252 mm
Packaging height 269 mm
WEEE Classified Yes
Battery charger Not included
Battery Not included
Number of batteries included 0
Equivalent vibration level (ahv, eq) rear handle 2.8 m/s²
Chain speed at max power (m/s) (metric) 20 m/s
Power/fuel type Battery
Recommended bar length, min (metric) 25 cm
Recommended bar length, max (metric) 35 cm
Equivalent vibration level (ahv, eq) front handle 2.5 m/s²
Chain pitch .325″ mini
Chain type SP21G
Bar length (metric) 35 cm
Bar length (inch) 14 in
Spikes Mounted
Nose type Sprocket nose
Chainsaw sub-group Full time professional use chainsaws

Key features

Interchangeable Battery System

Interchangeable Battery System

Able to be used in all Husqvarna battery tools, our lithium-ion batteries are durable, easy to swap and recharge quickly

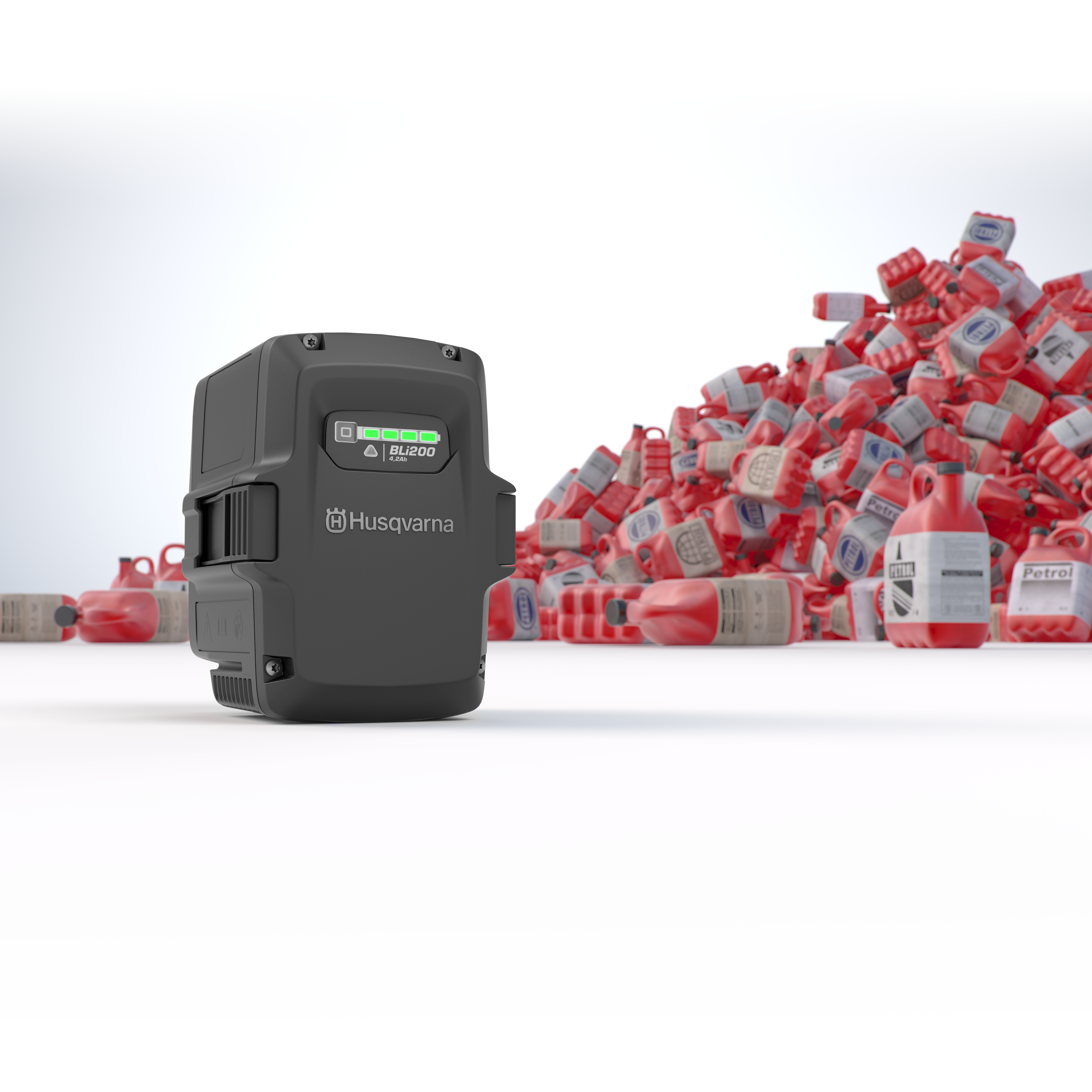

Petrol performance

Petrol performance

The battery back provides an equally high power, reliable operation and long lifetime as petrol-driven machines – without any direct emissions. Also, you get as much done on a single charge, as you would manage on one tank of petrol.

Made for professional use

Made for professional use

Engineered for professional use, offering power, performance and durability for demanding tasks.

Low Carbon Emissions

Low Carbon Emissions

By choosing this product, you can feel confident that it produces lower carbon emissions during active use compared to a traditional petrol product. This battery-driven product does not emit any CO₂ during use while still providing the power and quality that you expect from a Husqvarna product. However, it’s important to note that CO₂ emissions are generated during other stages of the product´s lifecycle, such as production, charging and end-of-life disposal.

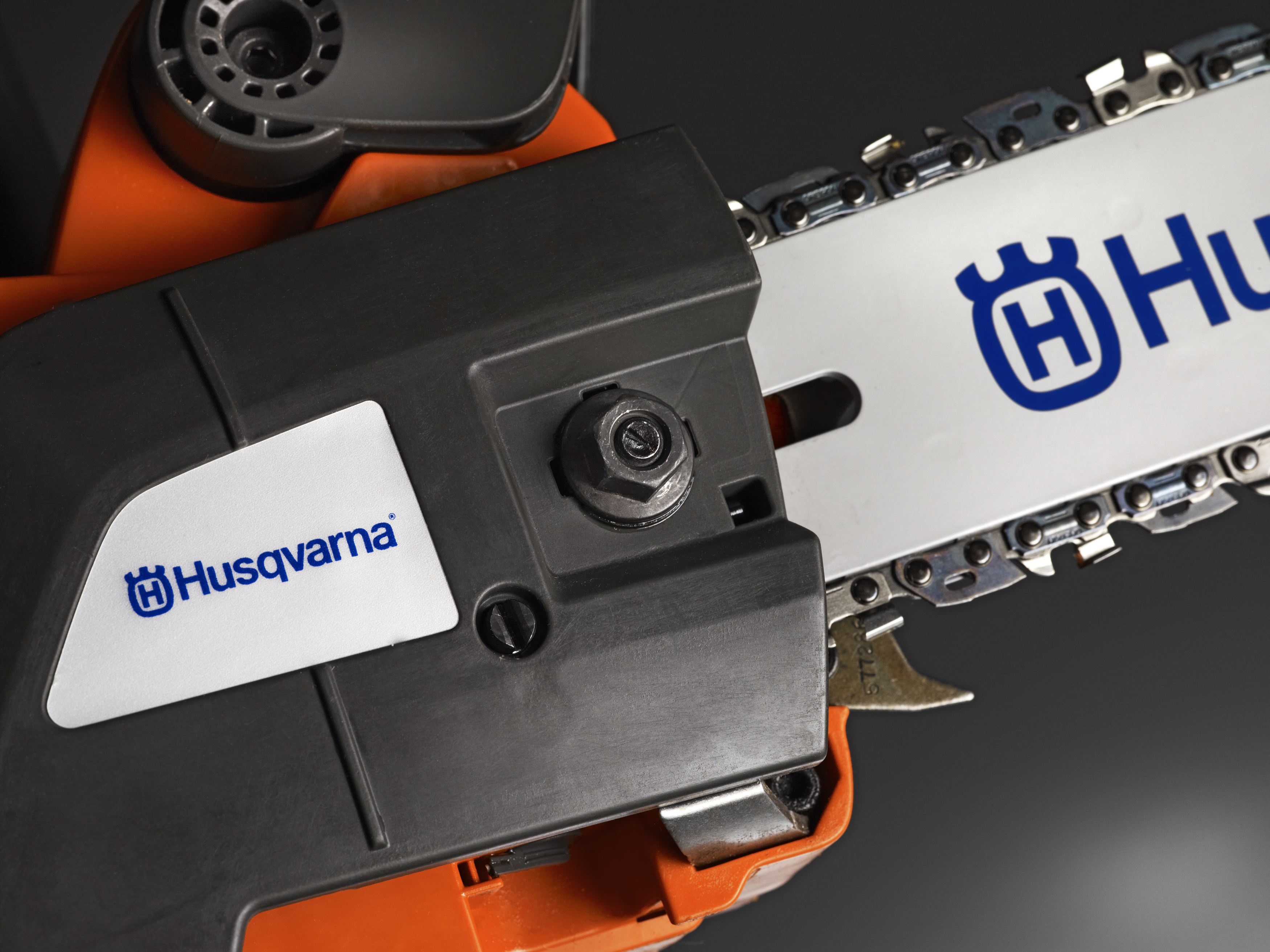

Retained bar nuts

Retained bar nuts

The retaining function prevents loosing the bar nuts.

Intuitive key pad

Intuitive key pad

The keypad is intuitive to operate, and you can easily adjust the settings with just the push of a button.

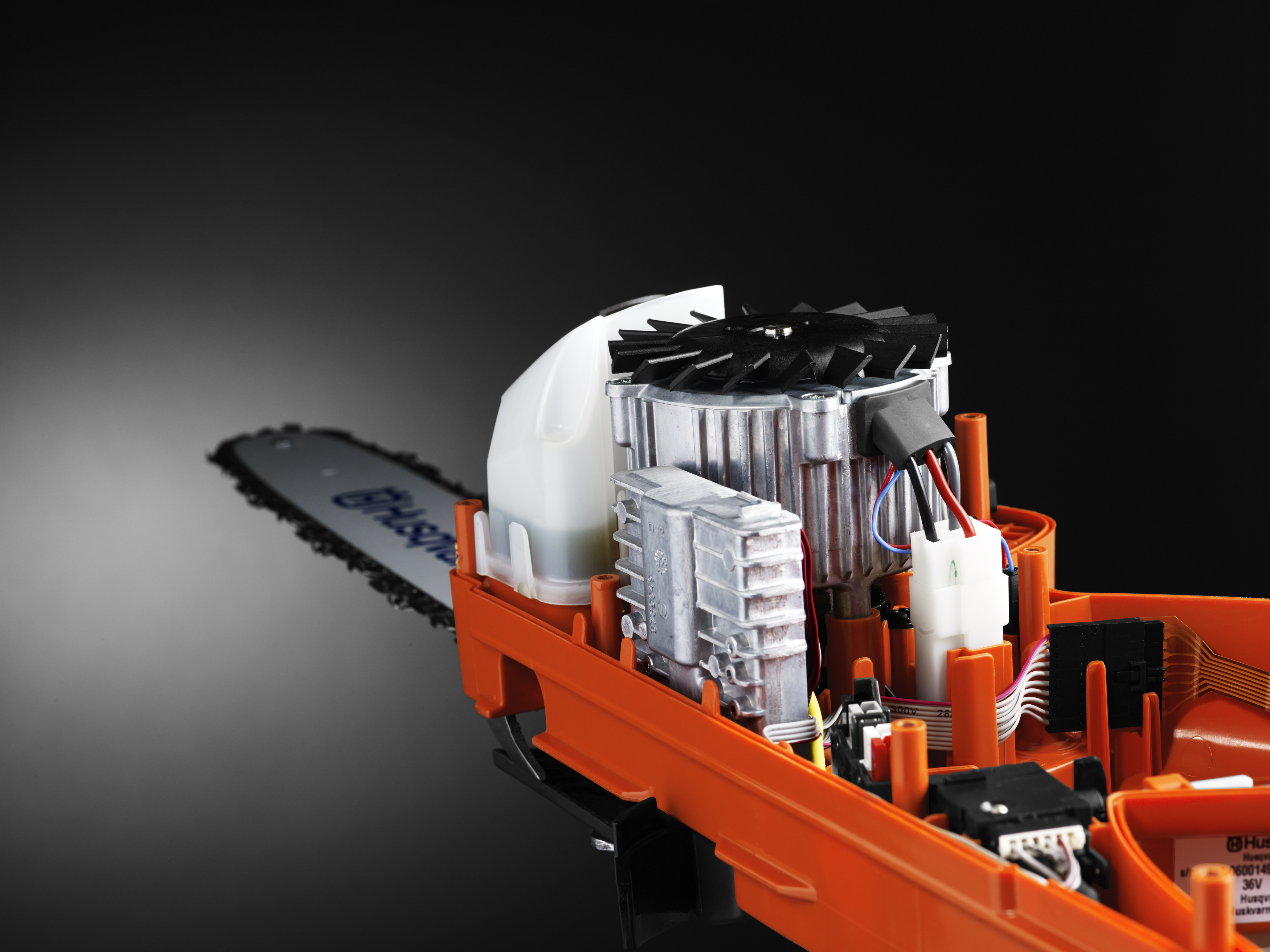

Efficient brushless motor

Efficient brushless motor

Our in-house developed, advanced brushless motor is 25 % more efficient than a standard brush motor. This means that the motor provides a high and consistent torque.

Flip-up tank cap

Flip-up tank cap

The flip-up tank cap is easy to open.

Inertia chain brake

Inertia chain brake

Effective inertia-activated chain brake.

Gear up for nonstop operation

Gear up for nonstop operation

Our battery accessories allow you to carry on and get the job done as quickly and efficiently as possible.

Low Maintenance

Low Maintenance

No fuel refilling, fewer parts and electronically-controlled drive system for less downtime

High chain speed

High chain speed

High chain speed for fast, smooth cutting

Power-Conserving savE™ Mode

Power-Conserving savE™ Mode

SavE™ mode maximises the run time, reduces noise levels and preserves product battery life by lowering the rpm. Ideal for tasks that do not require full power. Just press the button to turn savE™ mode on and off.

Automatic shutdown

Automatic shutdown

The product is automatically shut down after 3 minutes of being idle, which prolongs the life of the battery and also lower the risk for injuries when left unattended. With the chainbrake activated, the shutdown occurs after 30 minutes.

Features

Product video

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

Which batteries fit the 535i XP®?

The 535i XP® uses Husqvarna 36 V lithium‑ion batteries from the same interchangeable battery system. Batteries and chargers are sold separately — check compatibility with your existing Husqvarna batteries.

What guide bar lengths can I use?

Recommended bar length is 25–35 cm (10–14 in). This listing is supplied with a 14 in (35 cm) guide bar fitted.

What routine checks and maintenance should I do?

Check chain tension and sharpness before use, keep the bar nose sprocket lubricated, ensure the chain brake operates correctly and use the correct chain type (SP21G). Follow the operator manual for battery care and scheduled inspections — the electric drive reduces routine service compared with petrol models but regular checks remain essential for safe operation.

Additional information

Weight 3.331 g
UPC|EAN

7333377464018
