Husqvarna Depth Gauge (.325″)

SKU: 505698100 Category:

£4.99 (Inc VAT) - incl. VAT

9 in stock

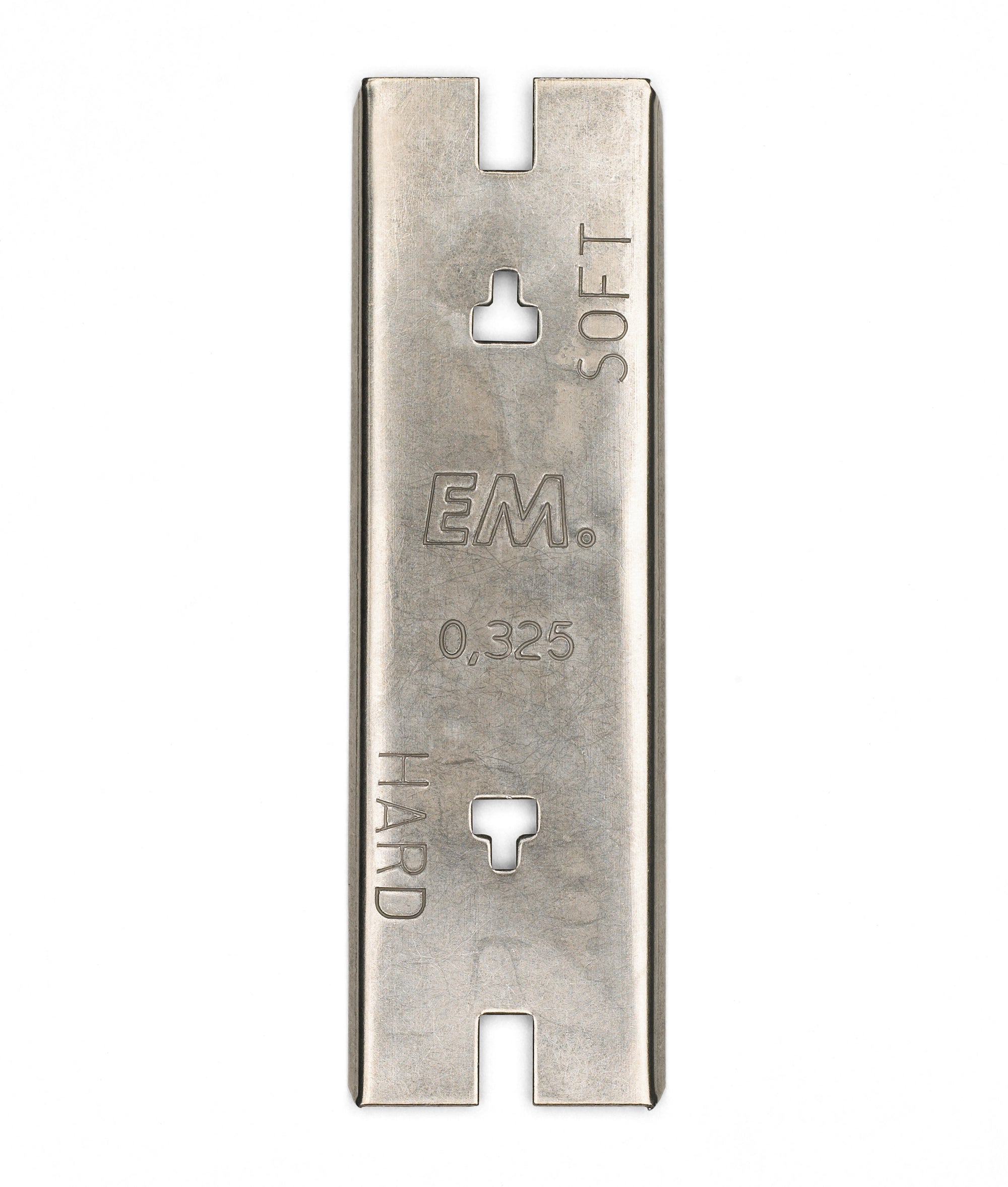

Specially designed .325″ depth gauge that sets the correct raker (depth) angle when filing. Use together with a Husqvarna flat file to achieve consistent raker clearance and maintain maximum cutting performance on compatible chains.

Correct raker clearance

The gauge controls the raker height relative to the cutter so you get consistent clearance every time you file.

Designed for .325″ chains

Made to suit .325″ pitch chains used on a range of Husqvarna chain types for straightforward compatibility.

Works with flat files

Intended to be used in combination with a flat file — it gives a simple stop for setting the raker before you file the cutters.

Key specification
Article ID 505698100
Full specification
File (mm) 4.8
Fits chain H21, H23, H25, H22

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

Which chains does this gauge fit?

It fits Husqvarna chains specified as H21, H22, H23 and H25. Check your chain marking to confirm compatibility before use.

What file size should I use with the gauge?

Use a 4.8 mm flat file alongside the depth gauge. The gauge provides the stop for setting the raker; the flat file is used to remove material to that level.

How do I use the depth gauge correctly?

Place the gauge over the chain so it rests against the raker. File the raker down until it is level with the gauge face, working along the chain consistently. Follow up by checking cutter filing as normal. Refer to Husqvarna guidance for any model-specific maintenance notes: https://www.husqvarna.com/uk/filing-equipment/depth-gauge/?article=505698100

Additional information

Weight 0.018 g
UPC|EAN

7391736003810
