Depth gauge
Husqvarna authorised dealer

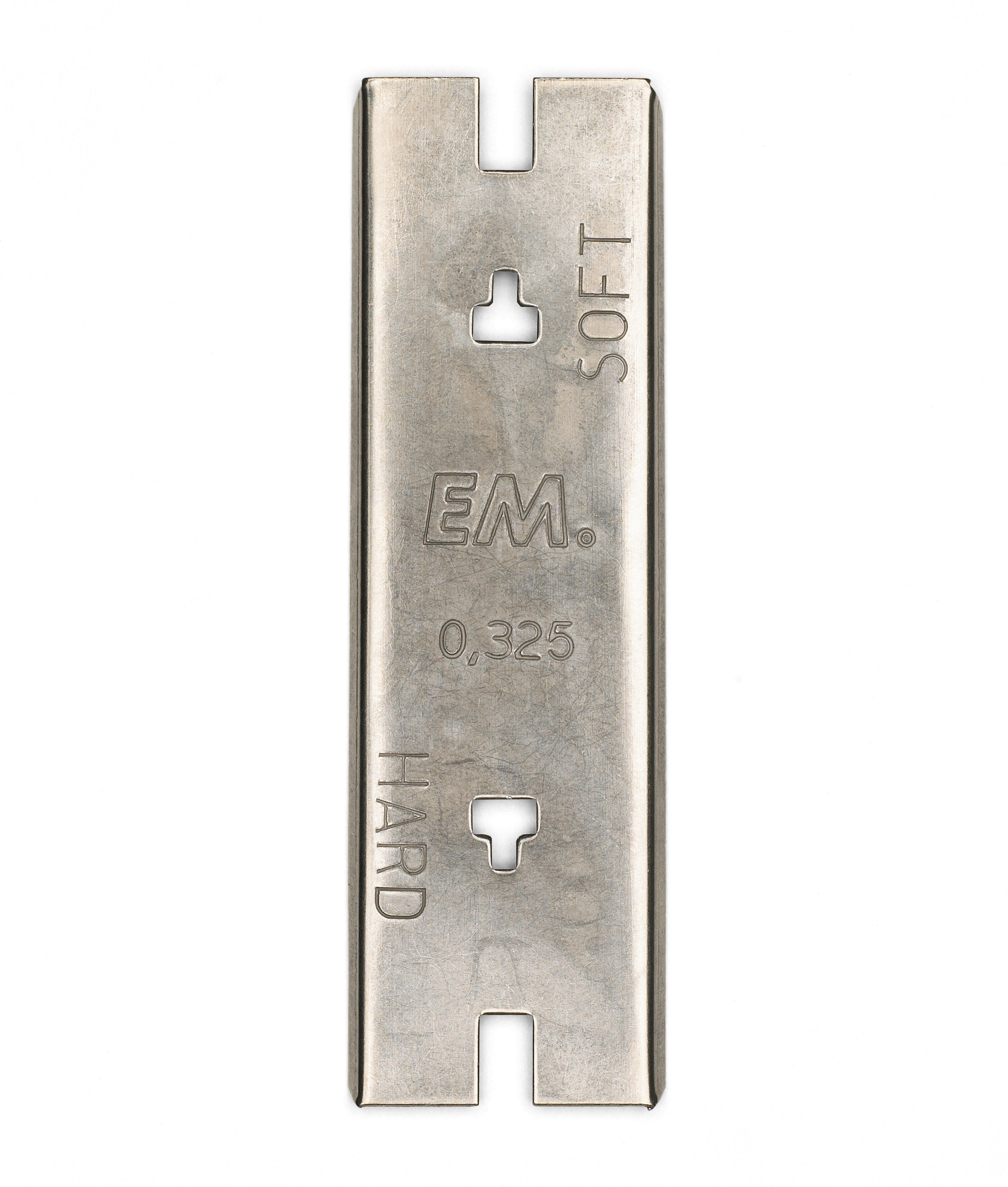

Depth gauge

SKU: 505698101 Category:

£4.99 (Inc VAT) - incl. VAT

4 in stock

Specially designed .325″ depth gauge that sets the correct filing angle and raker clearance for Husqvarna chains. Use together with a flat file to maintain consistent cutter geometry and restore chain performance. Suitable for the listed Husqvarna chain types and intended as a simple, repeatable jig for routine sharpening.

Correct filing angle

Built to the .325″ specification so you get the correct raker clearance and consistent cutting geometry when used with a flat file.

Chain compatibility

Compatible with Husqvarna chain types H42, H46, H47, H48, H80 and H81, covering a wide range of standard chains.

Simple to use

Designed as a straightforward guide for installers and owners — aligns with the raker for repeatable results without specialist equipment.

Key specification
Article ID 505698101
Full specification
File (mm) 5.5
Fits chain H42, H46, H47, H48, H80, H81

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

Which chains does this depth gauge fit?

It is suitable for Husqvarna chain types H42, H46, H47, H48, H80 and H81 as listed in the product specifications.

What file should I use with this gauge?

Use a 5.5 mm flat file as specified. The gauge is designed to be used together with a flat file to set the correct raker clearance.

How often should I check raker height?

Check raker height whenever performance drops, after any resharpening where cutters have been lowered, or as part of your regular maintenance routine. Use the gauge to confirm the raker clearance is correct before final filing.

Additional information

Weight 0.019 g
UPC|EAN

7391736003827
