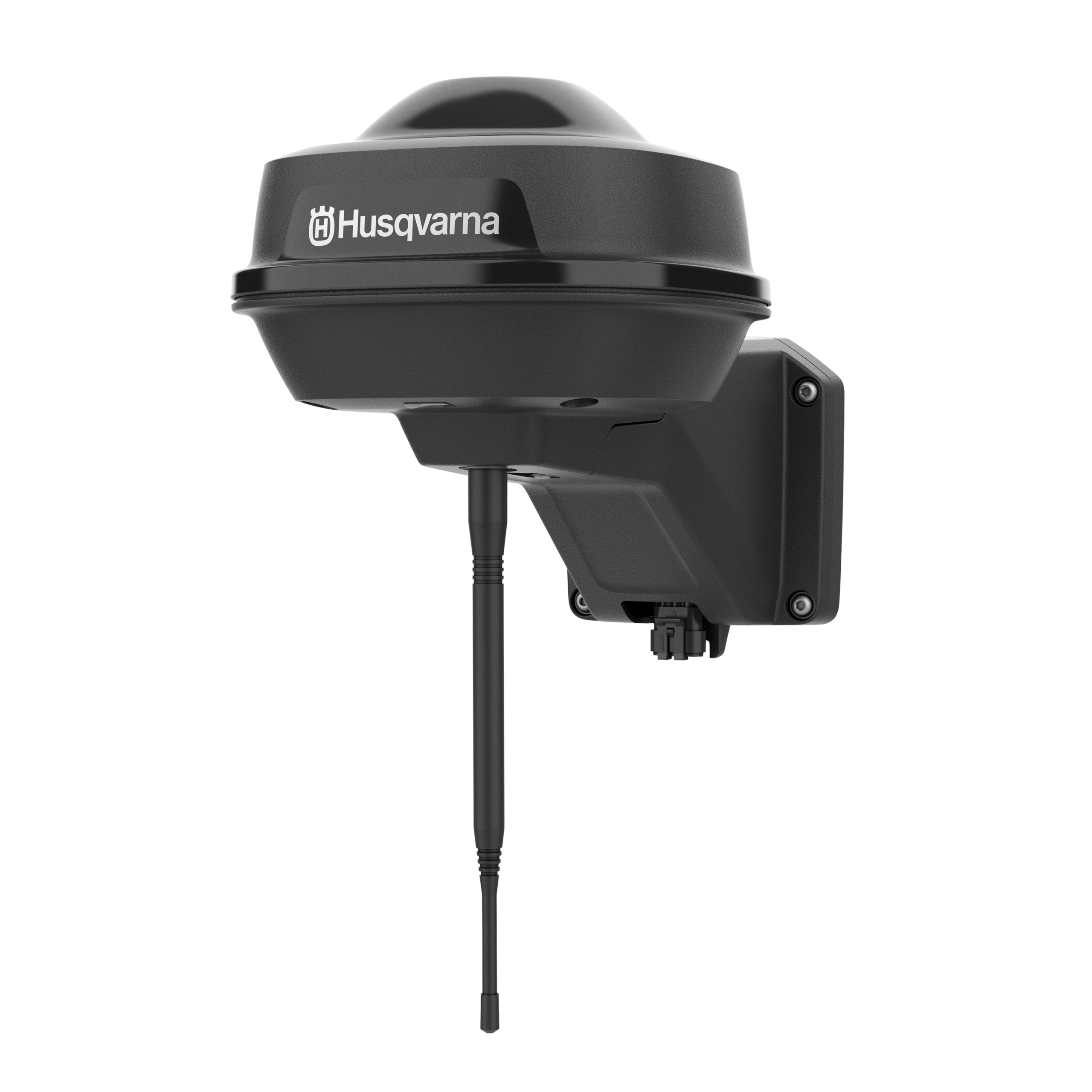

Husqvarna EPOS™ RS5 Reference Station

SKU: 970468203 Category:

£899.00 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

As an installer I’d specify the EPOS™ RS5 Reference Station where you need precise, wire‑free boundaries for Automower® systems. It handles RTK‑GNSS signals between mowers and satellites, supports multiple EPOS units per site and provides a work area with up to a 500‑metre radius.

Wide coverage

Provides a work area of up to 500‑metre radius from the reference station, suitable for large properties or grouped installations.

Wire‑free virtual boundaries

Enables virtual boundaries that remove the need for perimeter wire; boundaries and stay‑out zones are created and adjusted in the Husqvarna Automower® Connect app.

Multi‑unit capable

Designed to handle several EPOS units per installation, allowing you to scale coverage across larger sites or distinct work areas.

Key specification
Article ID 970468203
Full specification
Product size height 36 cm
Product size length 36 cm
Product size width 19 cm
Weight (complete product w/o side packed articles) (metric) 1.2 kg
Colour Grey
Protection Index (IP Code) IPX5
Firmware Update Dealer Service
Power supply unit Yes
Low voltage cable 20 m

Key features

Adjustable virtual boundaries

Adjustable virtual boundaries

Customisable lawn maintenance thanks to wire free installation with virtual boundaries.
The virtual boundaries are easy to install and adjust in the Husqvarna Automower® Connect app, and you can create stay-out zones and multiple work areas with different settings.

Adjustable virtual boundaries

Adjustable virtual boundaries

Adjustable virtual boundariesCustomisable lawn maintenance thanks to wire free installation with virtual boundaries.View more

Customisable lawn maintenance thanks to wire free installation with virtual boundaries.

Colour

Accessories

Accessories(1)AttachmentsEPOS™ attachment kit4.0(3)

EPOS™ attachment kit

AttachmentsEPOS™ attachment kit4.0(3)

Fits to model

Robot lawn mower

Robot lawn mowerAutomower® 535 AWD EPOS®Automower® 550 EPOS®Automower® 560 EPOS®Automower® 580 EPOS®Automower® 580L EPOS®CEORA® 544 EPOS® / RZ 43L / CS4CEORA® 544 EPOS® / RZ 43M / CS4CEORA® 546 EPOS® / RZ 43L / CS4CEORA® 546 EPOS® / RZ 43M / CS4Automower® 520 EPOS®Husqvarna Automower® 540 EPOS®Robotic Lawn MowersCEORA® 546 EPOS® / RZ 43M / CS4AttachmentsEPOS™ attachment kitCEORA™ – modulesCEORA® 544 EPOS®CEORA® 546 EPOS®

Robotic Lawn Mowers

Attachments

CEORA™ – modules

Manuals & Documents

Operator’s manualsOM. EPOS RS5. 2024OM. EPOS Reference station. 2023OM. EPOS Reference station. 2022

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

What area does one reference station cover?

The RS5 provides a work area of up to a 500‑metre radius. Actual coverage will depend on siting, local obstructions and GNSS signal quality.

Can it be left outside in UK weather?

Yes. The unit has an IPX5 protection rating and is built for outdoor use, but install it in a location that avoids obvious water pooling and provides reasonable access for maintenance.

How are firmware updates handled?

Firmware updates for the RS5 are performed through dealer service, so arrange updates via your authorised Husqvarna installer.

Additional information

Weight 3.000 g
UPC|EAN

7392930511620
