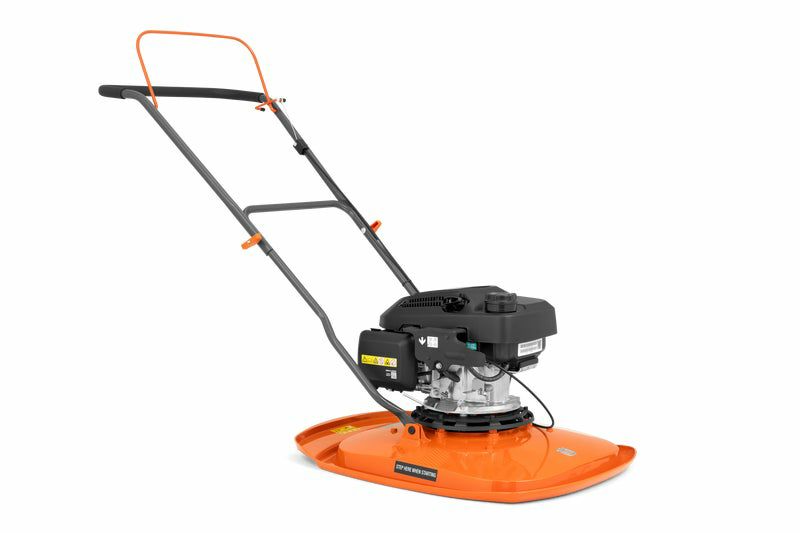

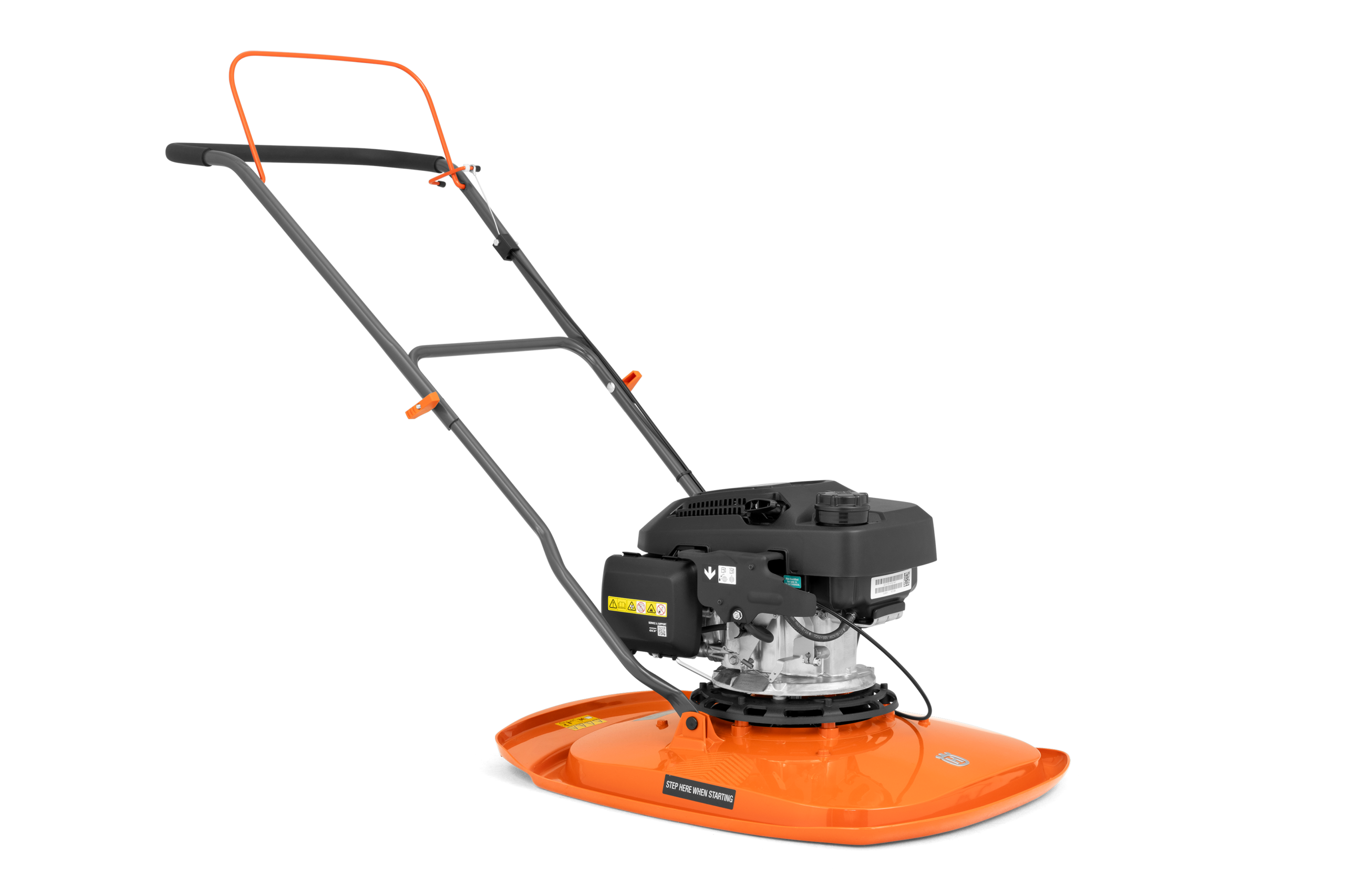

Husqvarna GX 560 Walk Behind Mower

Name: Husqvarna GX 560 Walk Behind Mower
SKU: 970617501
Availability: OutOfStock

SKU: 970617501 Category: WALK BEHIND LAWNMOWER

£755.16 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

Description
Additional information

The Husqvarna GX 560 is a commercial walk‑behind mower designed for steep and complicated areas where a ride‑on or conventional walk‑behind mower struggles. It uses air cushion technology to float and cut in any direction, is fitted with a Honda GCVX‑170 engine and is built to work on steep slopes and precise edges such as golf bunker surrounds.

Air cushion flotation

The deck floats on a cushion of air so the machine cuts easily in any direction and follows contours closely — useful on uneven, sensitive turf.

Exceptional slope capability

Rated for continuous cutting on slopes up to 40° thanks to an oil‑throw engine lubrication system; designed for steep and complicated areas such as bunker edges.

Manoeuvrable design

Compact 50.5 cm cutting width, push drive and a foldable, soft‑grip handle make it straightforward to move around flower beds, trees and tight edges.

Key specification

Article ID	970617501
Cutting width	50.5 cm
Drive system	Push

Full specification

Product size height	145 cm
Product size length	164 cm
Product size width	59 cm
Cylinder displacement (metric)	166 cm³
Cutting width (metric)	50.5 cm
Connectivity	Not applicable
Exhaust emissions (CO₂ EU V)	549 g/kWh
Sound pressure level at operators ear (LpA)	86 dB(A)
Sound power level, guaranteed (LWA)	97 dB(A)
Packaging length	765 mm
Packaging width	610 mm
Packaging height	425 mm
Power source	Petrol
Sound power level, measured	96 dB(A)
Weight (complete product w/o side packed articles) (metric)	18 kg
Cutting height max (metric)	30 mm
Cutting height min (metric)	10 mm
Cutting height adjustment	Spacers
Net power at preset rpm Energy	3.4 kW
Engine brand	Honda
Net power at preset rpm	3150 rpm
Engine name	GCVX-170
Engine cooling	Air
Engine lubrication type	Splash
Drive system	Push
Vibrations handlebar	3.3 m/s²
Handle type	Comfort
Handle height adjustment	None
Foldable handle	Yes
Soft grip	Yes
Cutting methods	BioClip®
Cutting deck material	ABS plastic
Cutting height steps	3
Cutting width (imperial)	20 in
Blade brake clutch (BBC)	No

Key features

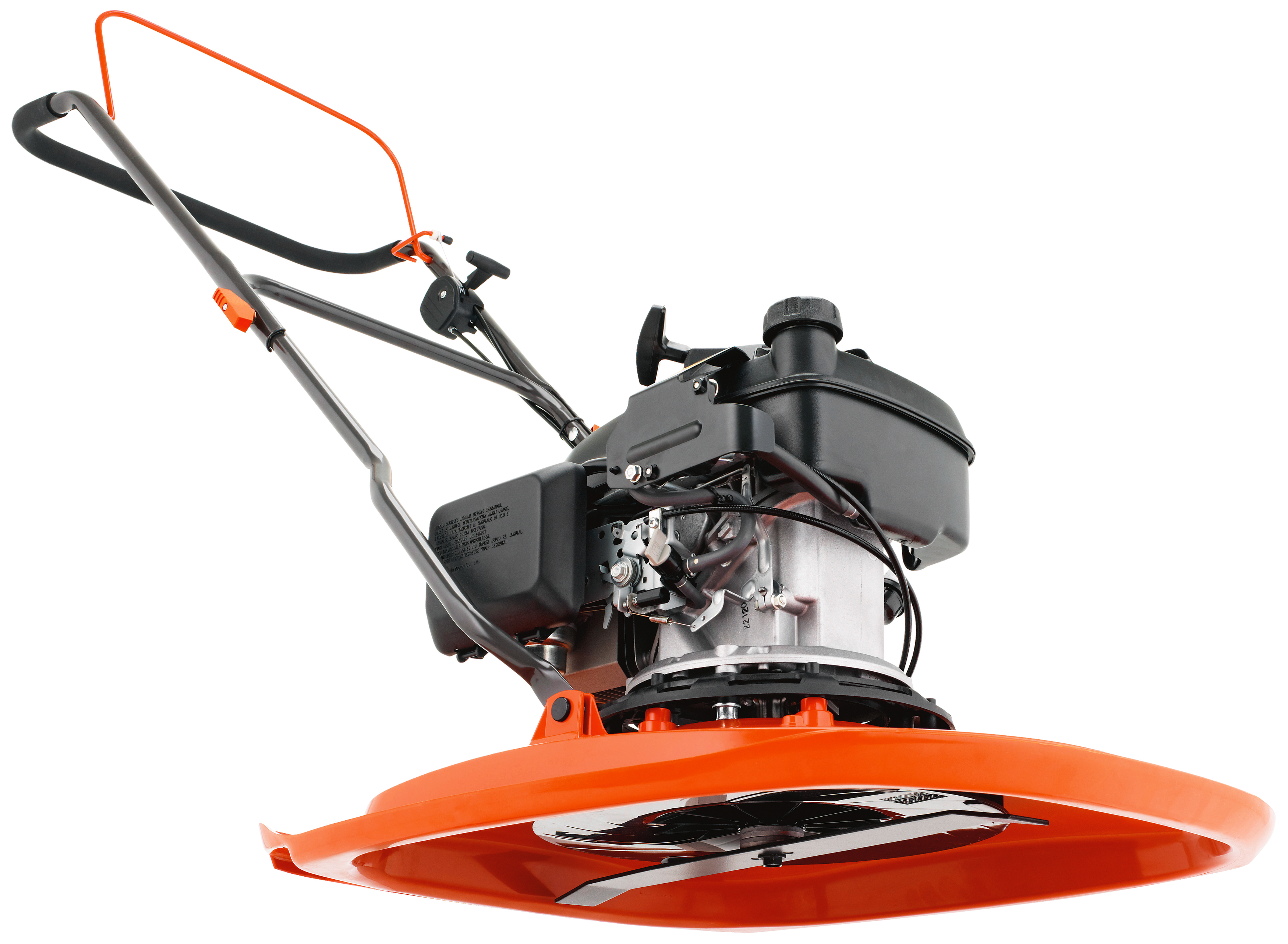

Air cushion

Floats on a cushion of air and cuts easily in any direction.

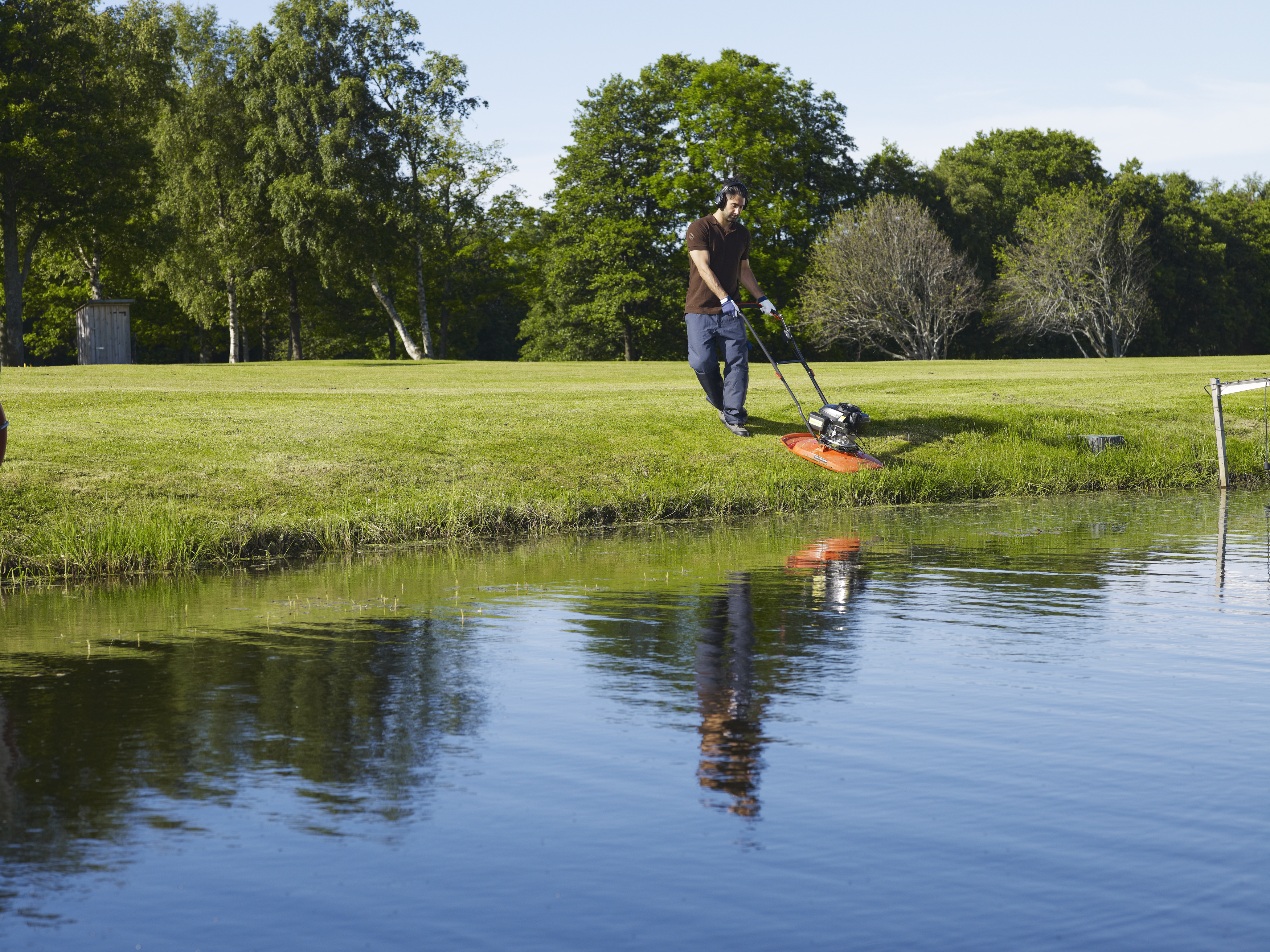

Manoeuvrable

Easy to move around obstacles in the landscape such as flower beds, trees and up to edges.

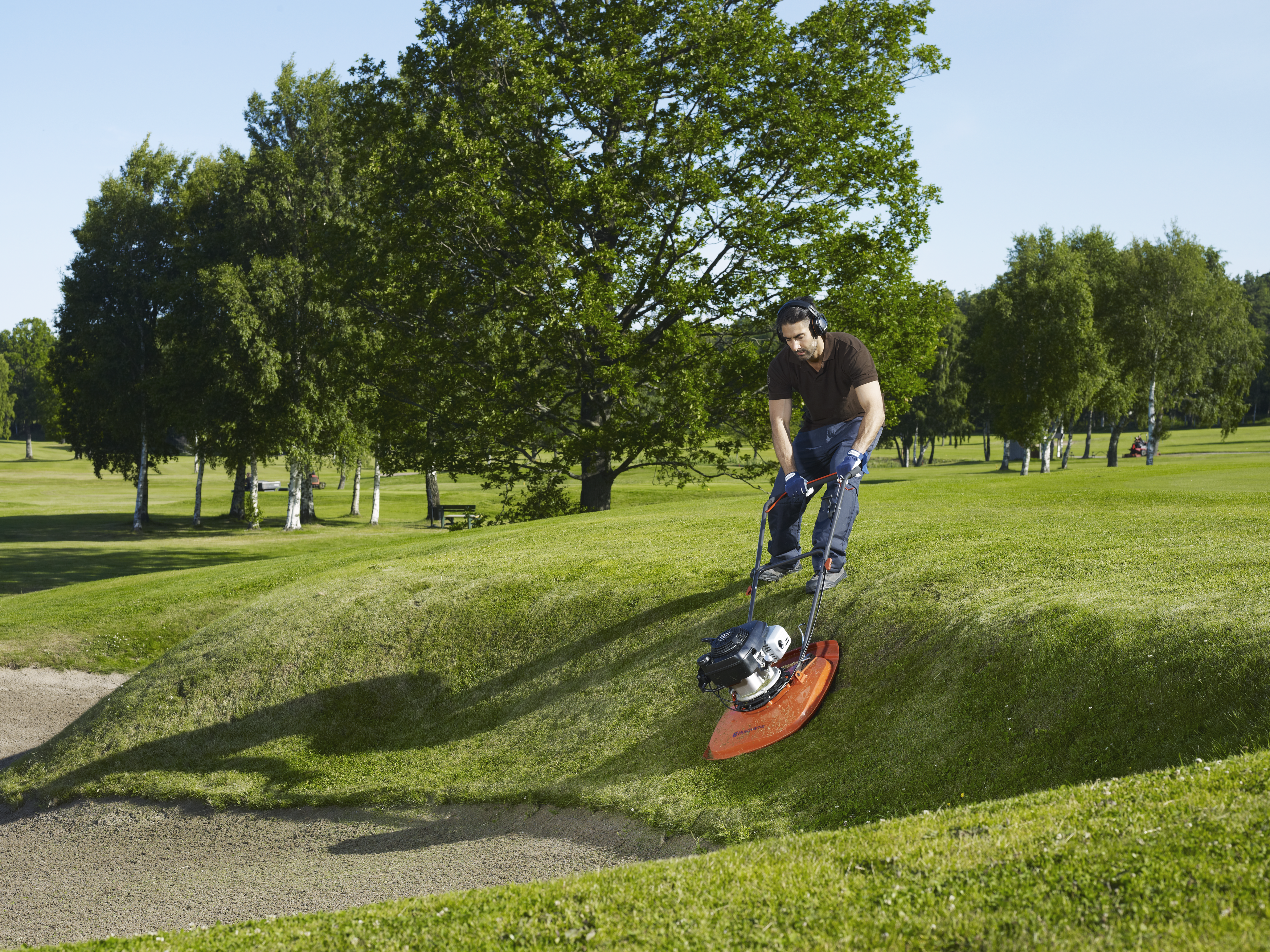

Cuts on slopes up to 40°

Cuts continuously on slopes up to 40° due to the oil throw engine lubrication system.

Features

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

What slope can the GX 560 handle?

The GX 560 is rated for continuous cutting on slopes up to 40° thanks to its oil‑throw engine lubrication system. It is intended for steep and complicated areas such as bunker edges.

What are the cutting width and height options?

Cutting width is 50.5 cm (20 in). Cutting height is adjustable between 10 mm and 30 mm using spacers, with three cutting height steps. The mower uses BioClip® mulching as its cutting method.

How heavy is it and how do I move or store it?

Complete product weight is 18 kg. The handle is foldable and features a soft grip, making the mower easier to carry, store and manoeuvre around obstacles. Drive system is push.

Additional information

Weight	18.000 g
UPC\|EAN	7333377049871
