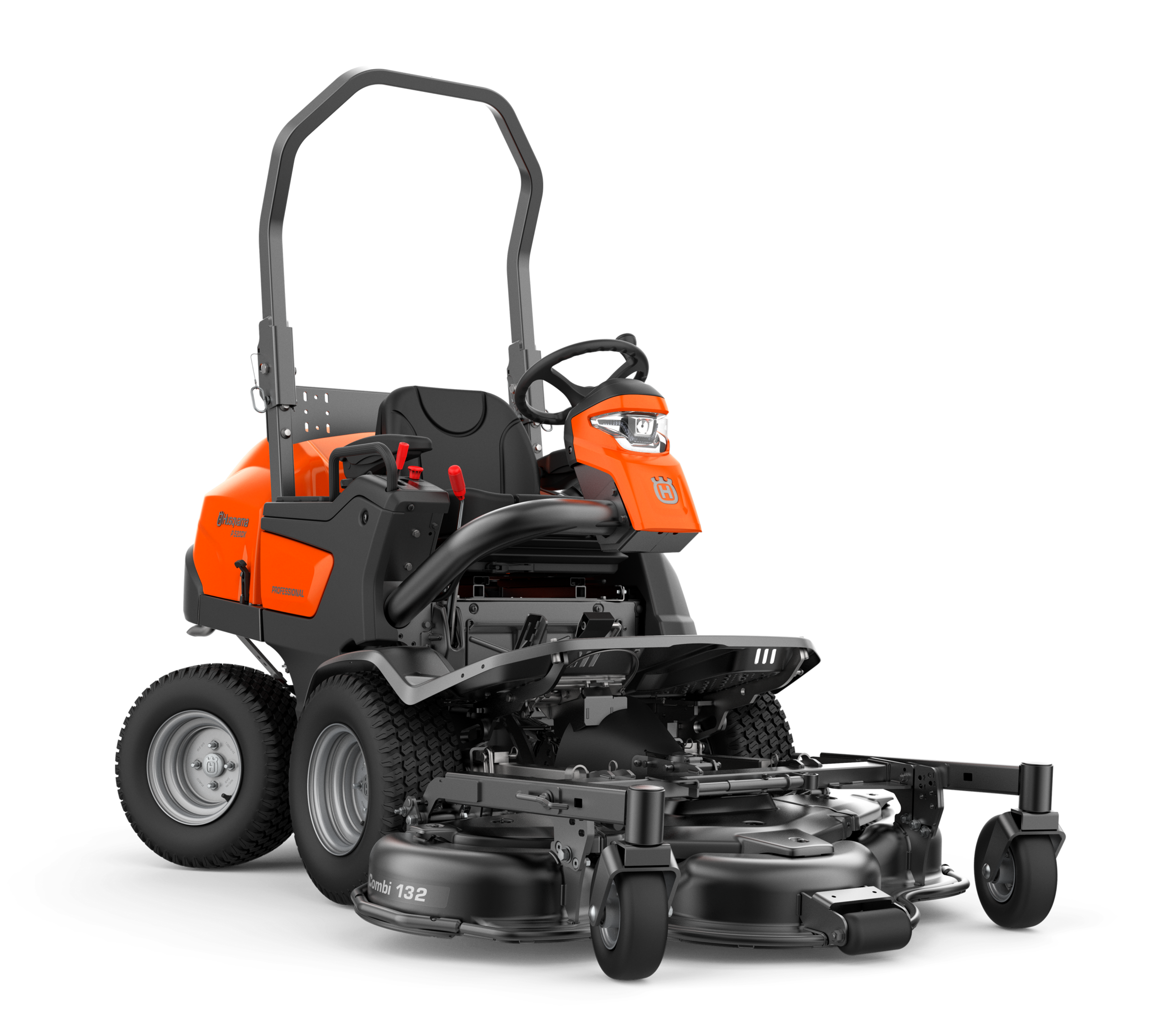

Husqvarna P 520DX Front Deck Mower
£18,629.19 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk
Practical, diesel-powered front mower designed for operators who need precise trimming in confined or complex sites. The P 520DX is supplied deckless and gives you a clear working view from the front-mounted cutting area, making close work under benches, around furniture and along fences straightforward. It combines a commercial-grade hydrostatic transmission, Kubota D 902 3-cylinder diesel engine and all-wheel drive for dependable traction and durable daily use. Choose cutting deck size and attachments to suit your applications — we fit and commission units to site requirements.
Exceptional manoeuvrability
Articulated steering lets the rear wheels swing underneath the machine for a very small turning radius. The compact layout and professional steering make it easy to work in narrow passages and around obstacles.
Precise, close-up trimming
Front-mounted, low-profile cutting access gives the operator an unobstructed view of the cutting line, so trimming close to benches, fences and shrubs is faster and more accurate.
Traction and slope stability
All‑wheel drive with a low centre of gravity and commercial graded transmission provides reliable traction on uneven, wet or slippery surfaces and improved hillside stability in everyday use.
Key specification
| Article ID | 967985201 |
| Transmission | Hydrostatic |
Full specification
| Weight (excl. cutting equipment) | 649 kg |
| Battery Chemistry | Lead-Acid |
| Cylinder displacement (metric) | 898 cm³ |
| Connectivity | BLE-HAPP |
| Exhaust emissions (CO₂ EU V) | 1047 g/kWh |
| Sound pressure level at operators ear (LpA) | 88 dB(A) |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound power level, measured | 104 dB(A) |
| Battery capacity | 62 Ah |
| Cutting height max (metric) | 112 mm |
| Cutting height min (metric) | 30 mm |
| Power/fuel type | Diesel |
| Serie | 500-serie |
| Cylinders | 3 |
| Net power at preset rpm Energy | 14.5 kW |
| Engine brand | Kubota |
| Net power at preset rpm | 3000 rpm |
| Engine name | D 902 |
| Transmission type | Hydrostatic |
| Motor/engine manufacturer | Kubota |
| Base machine, length (metric) | 207.8 cm |
| Base machine, width (metric) | 113.2 cm |
| Base machine, height (metric) | 133 cm |
| Engine cooling | Liquid |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
| PTO (Power Take Off) | Shaft drive |
| Transmission manufacturer, rear | Kanzaki |
| Drive method | Dual pedal-operation |
| Speed forward max (metric) | 17.5 km/h |
| Speed reverse max (metric) | 13.5 km/h |
| Transmission manufacturer, front | Kanzaki |
| Transmission model, front | KTM 23LA |
| Transmission model, rear | KTM 23SA |
| Uncut circle (metric) | 55 cm |
| Cutting width, min (metric) | 132 cm |
| Cutting width, max (metric) | 155 cm |
| Blade engagement | Electric clutch |
| Seat suspension | Yes |
| Seat type | Full suspension, arm rests |
| Hour meter type | Digital |
| Seat material | Vinyl |
| Seat back height | High |
| Foldable seat | Yes |
| Steering wheel type | Professional |
| Parking brake, type | Disc |
| Tyre dimensions, front | 20×8-10 |
| Tyre dimensions, rear | 20×8-10 |
| Wheelbase (metric) | 106 cm |
| Ground clearance (metric) | 140 mm |
| Gross weight towed (metric) | 350 kg |
| Vibration level steering wheel | 1.26 m/s² |
| Vibration level seat | 0.32 m/s² |
| Drive system | All-wheel drive |
| Steering knob | Standard |
Key features
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
Trimming ability
The front-mounted cutting deck gives excellent overview of the working area, enabling precise, close-up trimming.
Mowing accessibility
The low profile front-mounted cutting deck gives unbeatable accessibility in under fences, bushes, park benches etc.
Compact design
The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.
Commercial graded transmission
High-specified variable piston pumps with separate gear boxes for front and rear axle.
All-Wheel Drive (AWD)
The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.
Versatile usage
A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

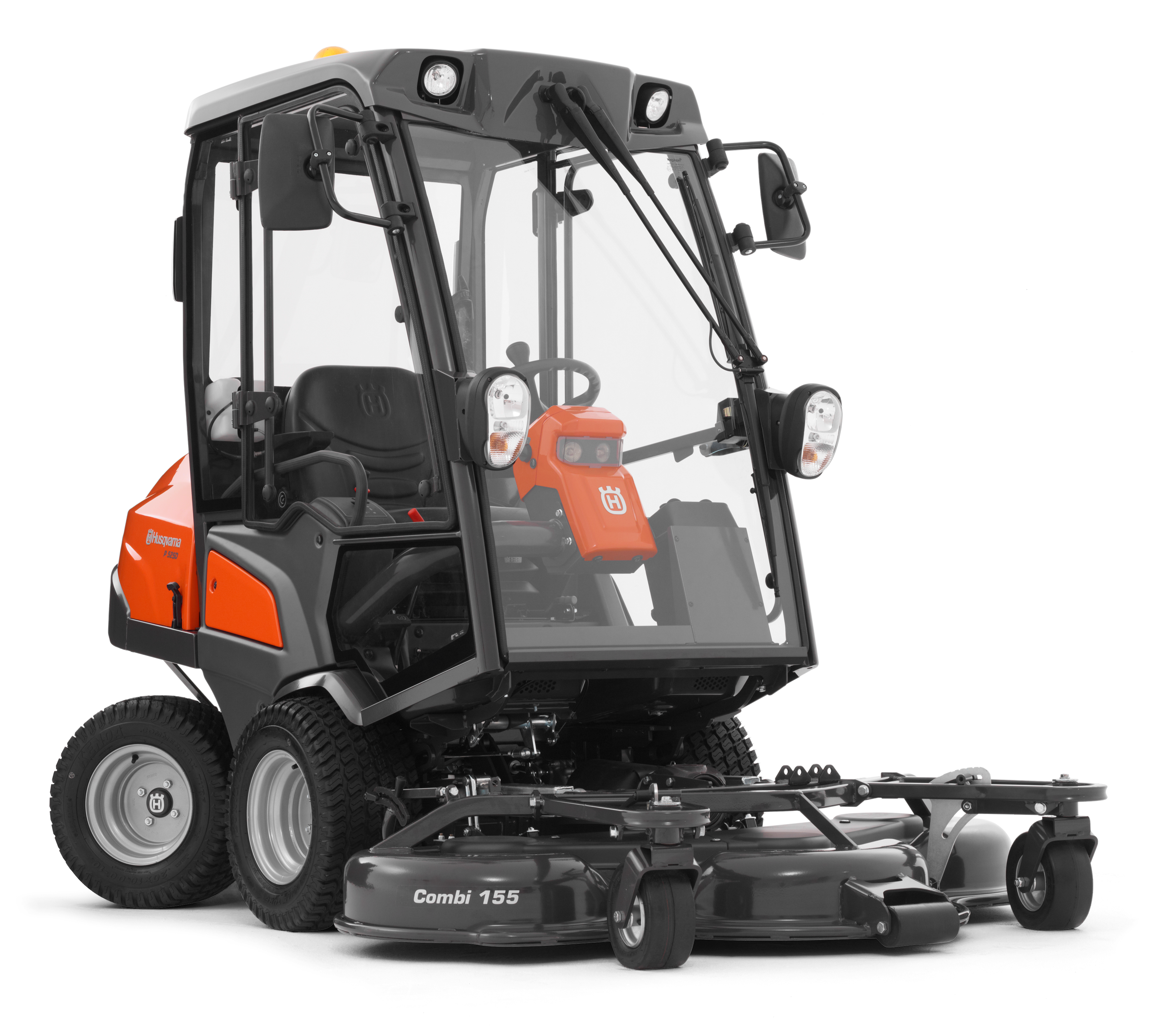

Cabin
Optional cabin for increased comfort during all seasons.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Shaft PTO
Solid and hardened PTO axle for maximum efficiency and durability.
Quick coupling
Unique quick coupling allows attachments to be changed quickly and efficently without tools.
Kubota diesel engine
High performance 3-cylinder Kubota diesel engine with full pressure lubrication. Combines exceptional power and torque with fuel efficiency and reduced emissions.
Ergonomic operation
Ergonomic operator’s interface for a comfortable ride during long working hours.
Hydraulic power steering
Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.

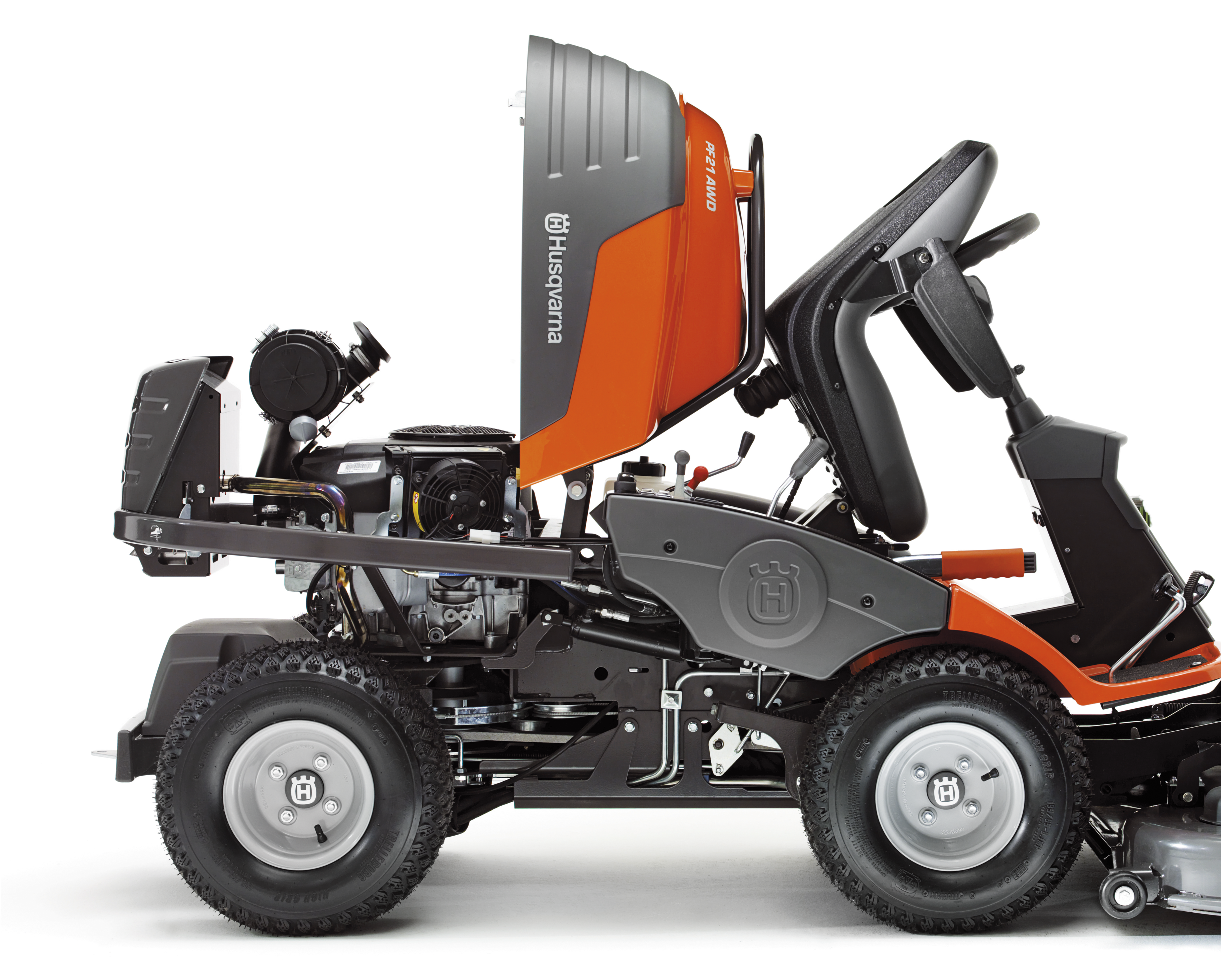

Easy access
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Greasable mandrels
For easy maintenance and longer lifetime.

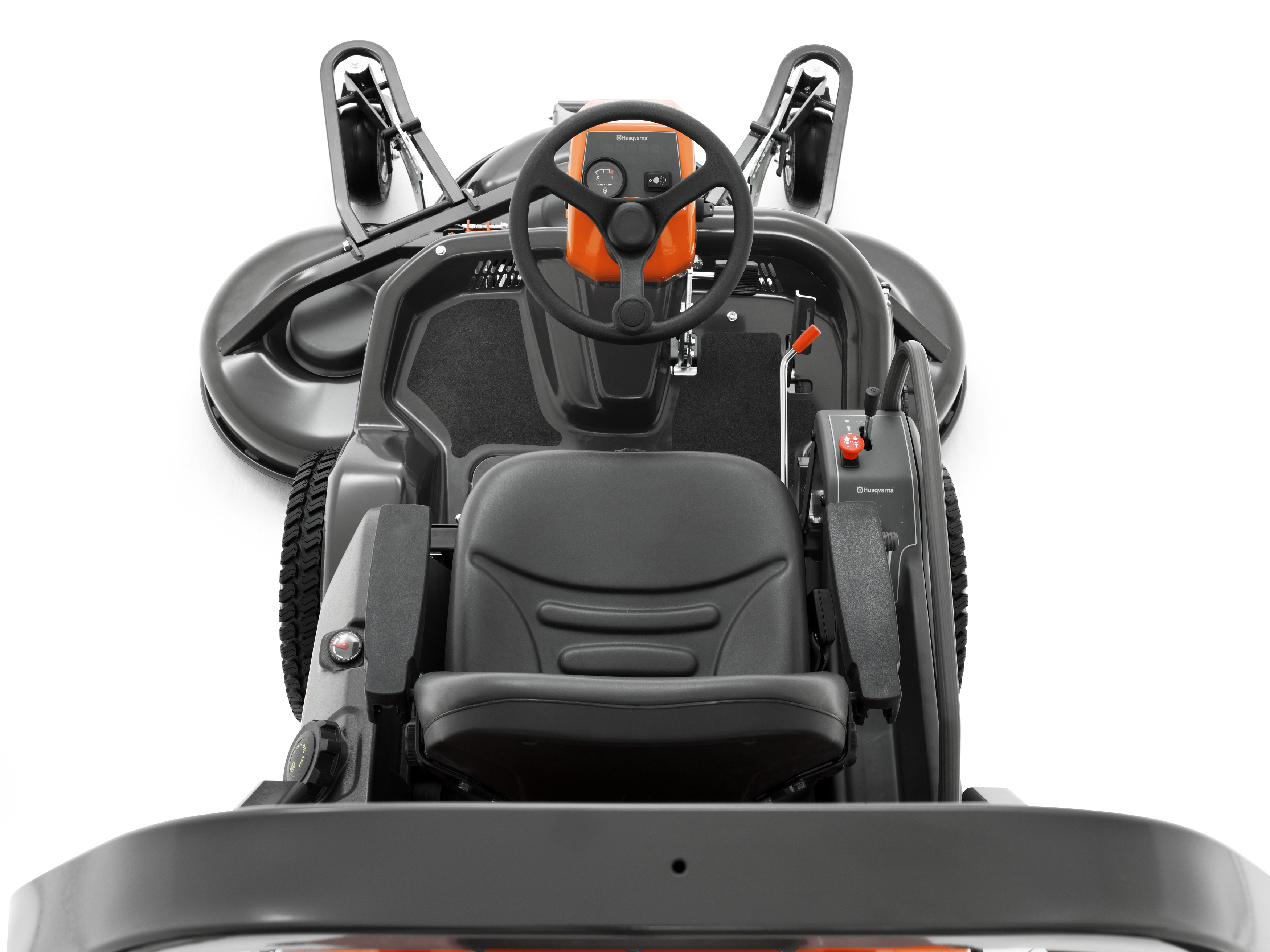

Off-set cutting deck
For easy handling of corners and close-up trimming against walls and fences.
Service position
Service postion on the cutting deck facilitates cleaning and service.
Durable ladder frame
Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.
Product video
FAQs
Will this fit my machine?
Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.
Do I need any extra brackets or fitting kits?
Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.
Can you fit it for me?
Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).
Is the P 520DX supplied with a cutting deck?
No. The P 520DX is delivered deckless. It accepts 132 cm and 155 cm Combi cutting decks — we can fit and commission the deck size you need before handover.
Can it cope with slopes and slippery ground?
Yes. The machine uses All‑Wheel Drive and a low centre of gravity together with commercial graded transmission to provide good traction and hillside stability. Always follow safe working practices and local slope guidelines when operating.
How straightforward is maintenance?
Maintenance is designed to be practical: the tilting hood and accessible service points speed routine checks, greasable mandrels and robust components reduce wear, and the Kubota engine is specified for reliable service intervals. We offer installation and servicing if you prefer workshop support.
