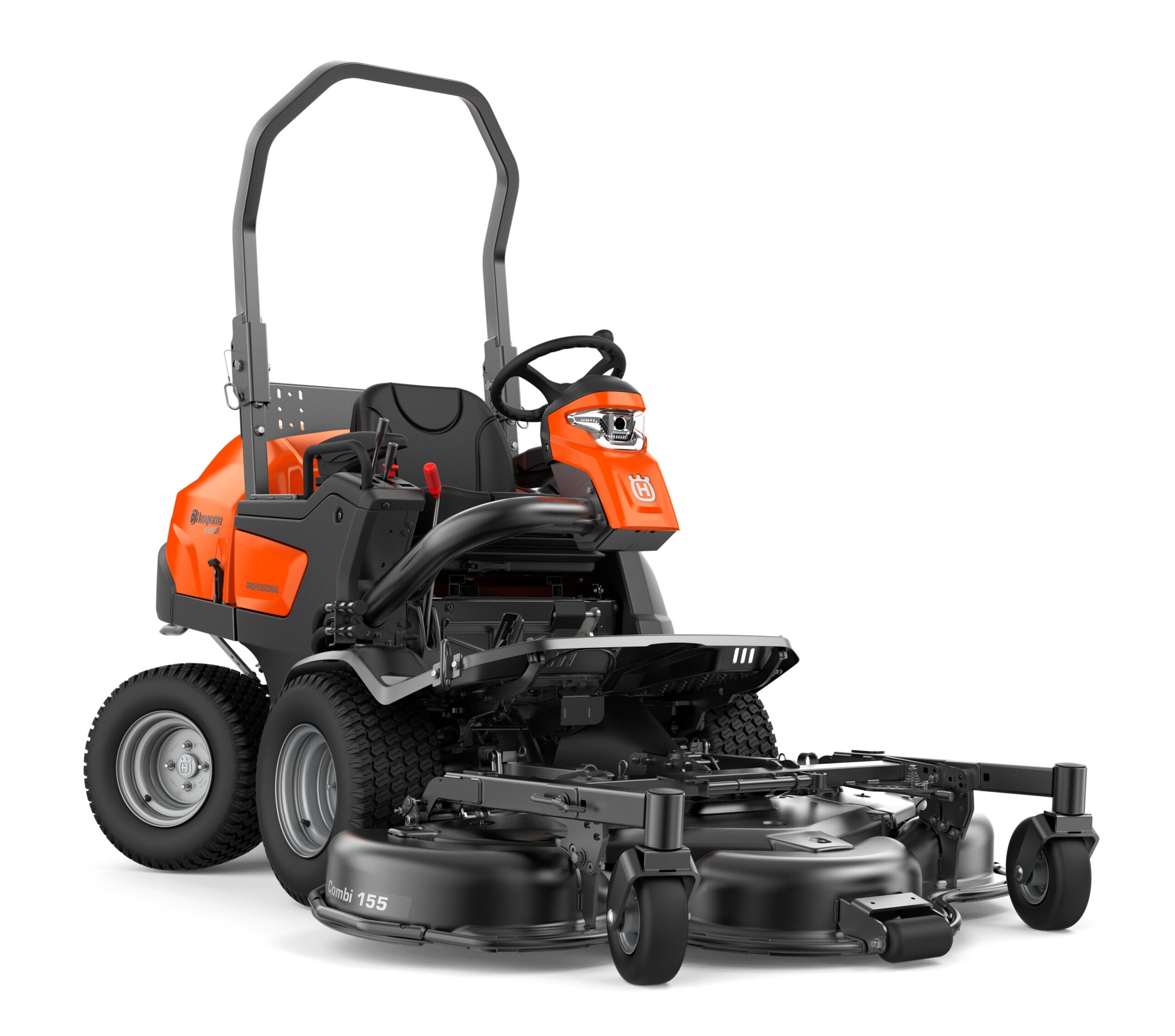

Husqvarna P 525DX Front Deck Mower
£20,249.19 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk
Practical diesel-powered front mower delivered deckless and intended for contractors, municipalities and housing teams that need high productivity in confined and complex areas. The front-mounted cutting deck gives the operator a clear view for close trimming and access under benches and foliage. Robust components, all-wheel drive and a commercial-grade transmission provide traction and slope stability for both stationary and mobile tasks. Supplied without a cutting deck — fits 132 cm and 155 cm Combi decks.
Exceptional manoeuvrability
Articulated steering lets the rear wheels tuck under the machine for a very small turning radius, making the P 525DX easy to work in narrow passages and around obstacles.
Precise front-mounted cutting
The front-mounted, low-profile deck offers excellent visibility of the working area for accurate trimming close to edges, walls and under benches.
Durable drivetrain and stability
Commercial‑graded hydrostatic transmission, shaft PTO and all‑wheel drive combine with a low centre of gravity to deliver reliable traction and slope stability in demanding conditions.
Key specification
| Article ID | 967985301 |
| Transmission | Hydrostatic |
Full specification
| Weight (excl. cutting equipment) | 684 kg |
| Battery Chemistry | Lead-Acid |
| Cylinder displacement (metric) | 1123 cm³ |
| Connectivity | BLE-HAPP |
| Exhaust emissions (CO₂ EU V) | 1018 g/kWh |
| Sound pressure level at operators ear (LpA) | 91 dB(A) |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound power level, measured | 104 dB(A) |
| Battery capacity | 62 Ah |
| Cutting height max (metric) | 112 mm |
| Cutting height min (metric) | 30 mm |
| Power/fuel type | Diesel |
| Serie | 500-serie |
| Cylinders | 3 |
| Net power at preset rpm Energy | 17.8 kW |
| Engine brand | Kubota |
| Net power at preset rpm | 3000 rpm |
| Engine name | D1105 |
| Transmission type | Hydrostatic |
| Motor/engine manufacturer | Kubota |
| Base machine, length (metric) | 207.8 cm |
| Base machine, width (metric) | 115.3 cm |
| Base machine, height (metric) | 133 cm |
| Engine cooling | Liquid |
| Engine lubrication type | Pressure with Oilfilter |
| Oil filter | Yes |
| PTO (Power Take Off) | Shaft drive |
| Transmission manufacturer, rear | Kanzaki |
| Drive method | Dual pedal-operation |
| Speed forward max (metric) | 19 km/h |
| Speed reverse max (metric) | 15 km/h |
| Transmission manufacturer, front | Kanzaki |
| Transmission model, front | KTM 23LC |
| Transmission model, rear | KTM 23SC |
| Uncut circle (metric) | 58 cm |
| Cutting width, min (metric) | 132 cm |
| Cutting width, max (metric) | 155 cm |
| Blade engagement | Electric clutch |
| Seat suspension | Yes |
| Seat type | Full suspension, arm rests |
| Hour meter type | Digital |
| Seat material | Vinyl |
| Seat back height | High |
| Foldable seat | Yes |
| Steering wheel type | Professional |
| Parking brake, type | Disc |
| Tyre dimensions, front | 20×10-10 |
| Tyre dimensions, rear | 20×10-10 |
| Wheelbase (metric) | 106 cm |
| Ground clearance (metric) | 140 mm |
| Gross weight towed (metric) | 350 kg |
| Vibration level steering wheel | 1.7 m/s² |
| Vibration level seat | 0.7 m/s² |
| Drive system | All-wheel drive |
| Steering knob | Standard |
Key features
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
Trimming ability
The front-mounted cutting deck gives excellent overview of the working area, enabling precise, close-up trimming.
Mowing accessibility
The low profile front-mounted cutting deck gives unbeatable accessibility in under fences, bushes, park benches etc.
Compact design
The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.
Commercial graded transmission
High-specified variable piston pumps with separate gear boxes for front and rear axle.
All-Wheel Drive (AWD)
The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.
Versatile usage
A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.
Cabin
Optional cabin for increased comfort during all seasons.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Shaft PTO
Solid and hardened PTO axle for maximum efficiency and durability.
Quick coupling
Unique quick coupling allows attachments to be changed quickly and efficently without tools.
Kubota diesel engine
High performance 3-cylinder Kubota diesel engine with full pressure lubrication. Combines exceptional power and torque with fuel efficiency and reduced emissions.
Ergonomic operation
Ergonomic operator’s interface for a comfortable ride during long working hours.
Hydraulic power steering
Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Easy access
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Greasable mandrels
For easy maintenance and longer lifetime.
Off-set cutting deck
For easy handling of corners and close-up trimming against walls and fences.
Service position
Service postion on the cutting deck facilitates cleaning and service.
Durable ladder frame
Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.
Product video
FAQs
Will this fit my machine?
Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.
Do I need any extra brackets or fitting kits?
Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.
Can you fit it for me?
Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).
Does the P 525DX come with a cutting deck?
No. The machine is supplied deckless. It can be fitted with 132 cm or 155 cm Combi cutting decks, which are available separately.
What attachments are available and how easy are they to change?
A range of attachments is supported, including a utility bucket, broom, folding plough and an optional cabin. The unique quick coupling system lets you change attachments quickly and efficiently without tools.
Is the machine suitable for slopes and slippery conditions?
Yes. The P 525DX has all‑wheel drive and a low centre of gravity combined with a commercial‑grade transmission to give good traction and hillside stability in uneven and wet conditions.
Additional information
| Weight | 684.000 g |
|---|---|
| UPC|EAN | 7392930295315 |
