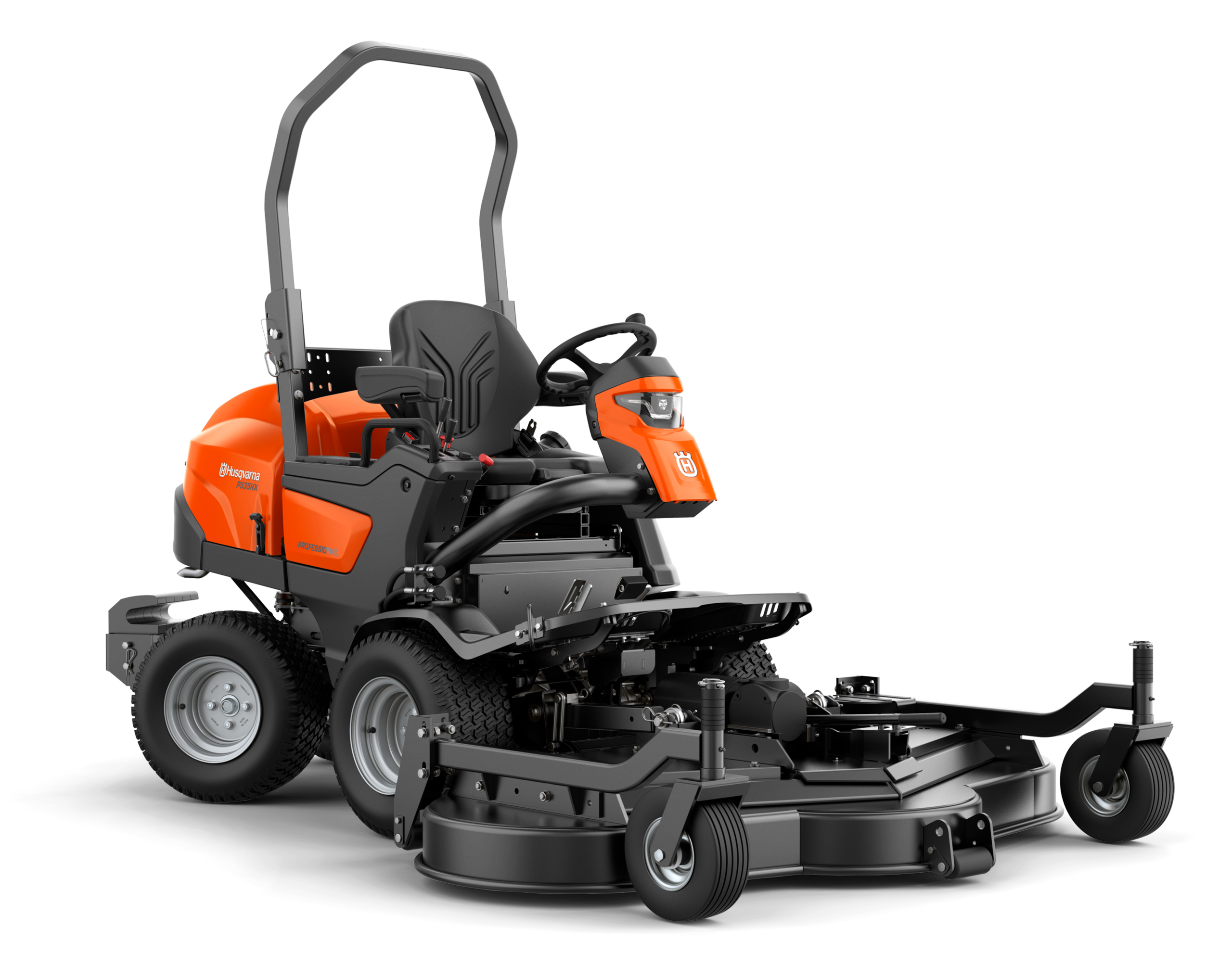

Husqvarna P 535HX Front Deck Mower

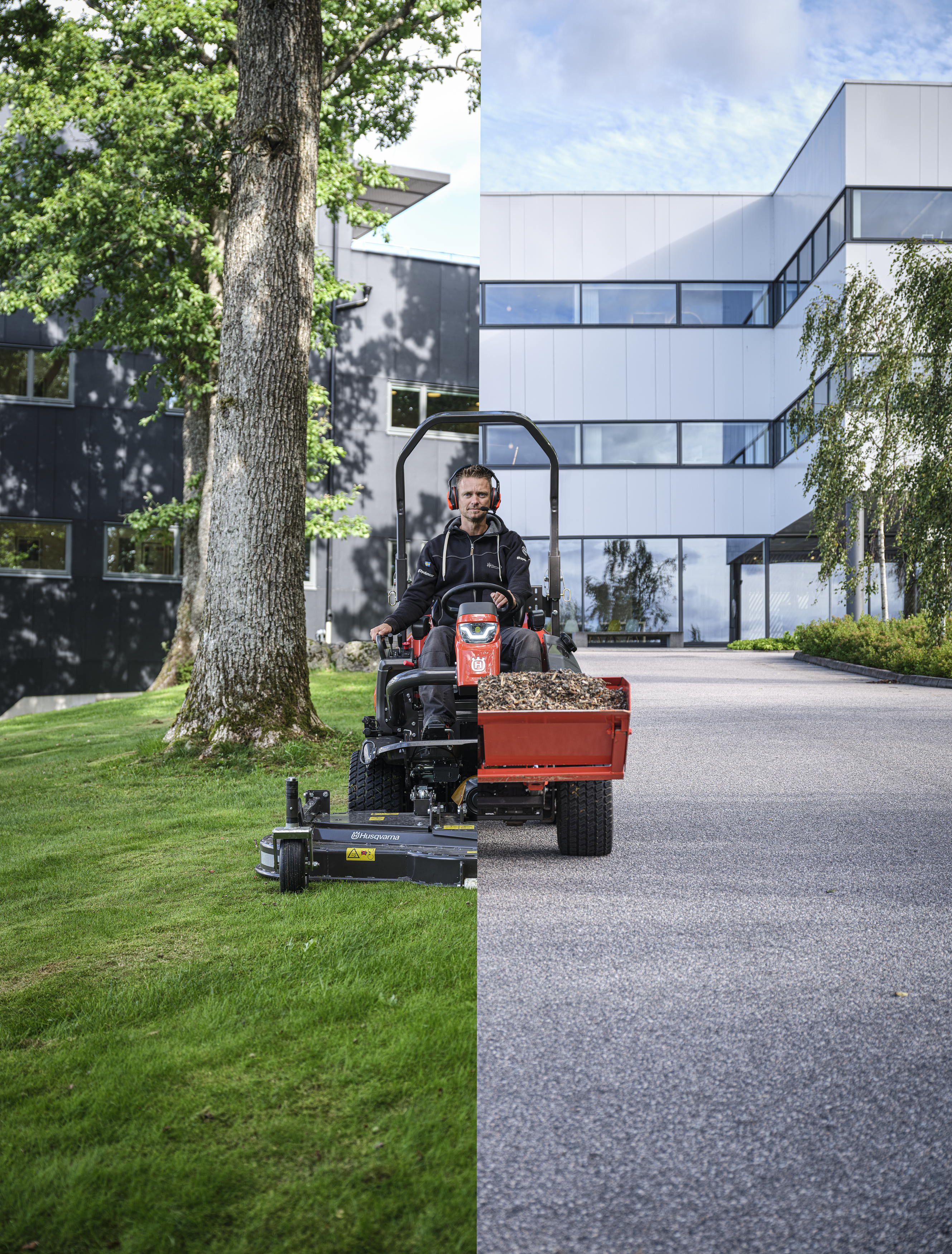

Equipped with a hybrid drive system that can be operated in two different drive modes; electric mode (used during transportation) and hybrid mode (diesel engine running and battery buffer active) where the modes continuously interact depending on cutting conditions:
– normal conditions; the power from the diesel engine is used to both operate the front attachment through the PTO, the propulsion and recharging of the batteries if needed
– hard conditions; the power from the diesel engine is used to just operate the front attachment through the PTO. Power to the propulsion is taken from the battery.

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

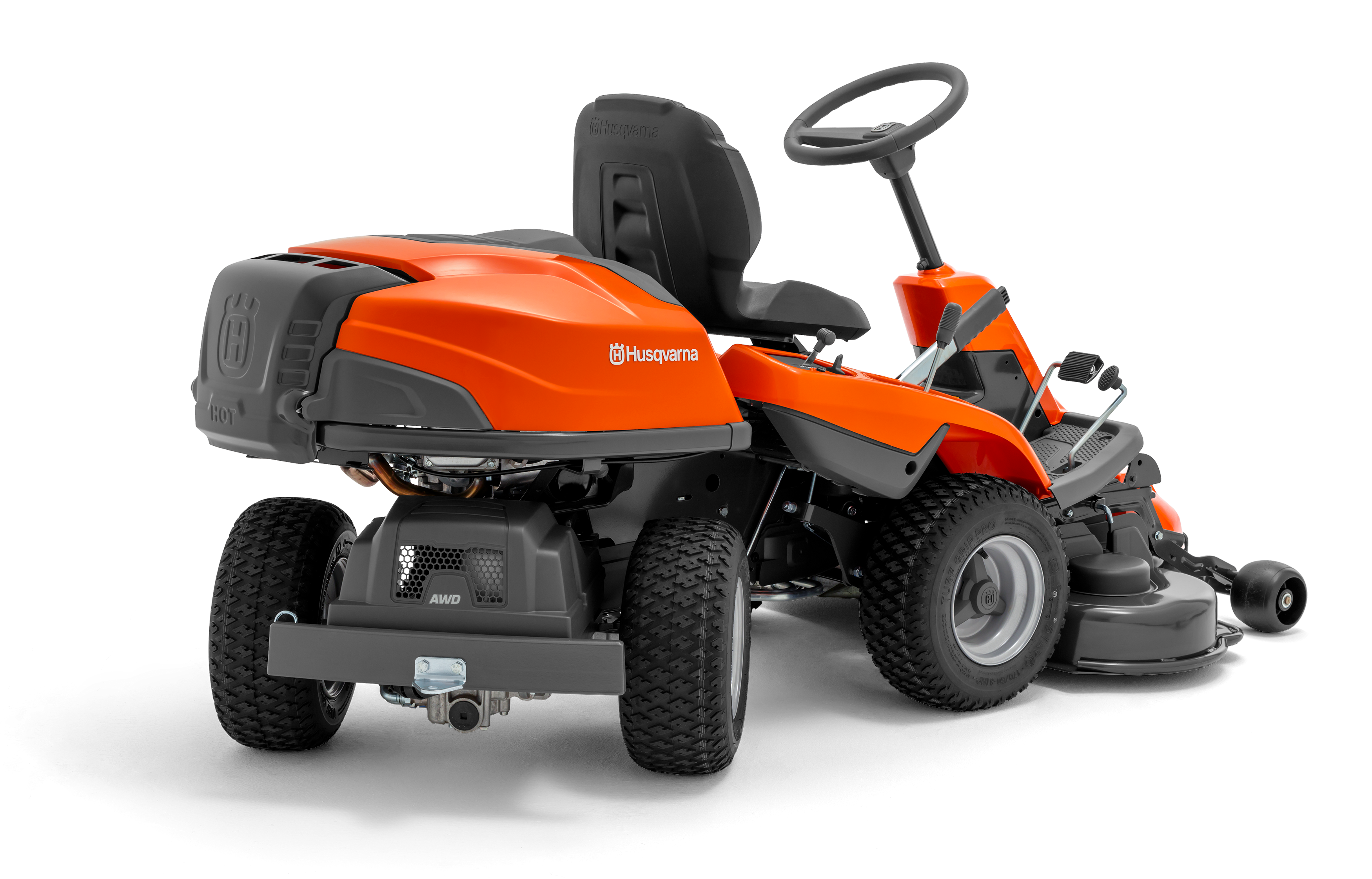

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

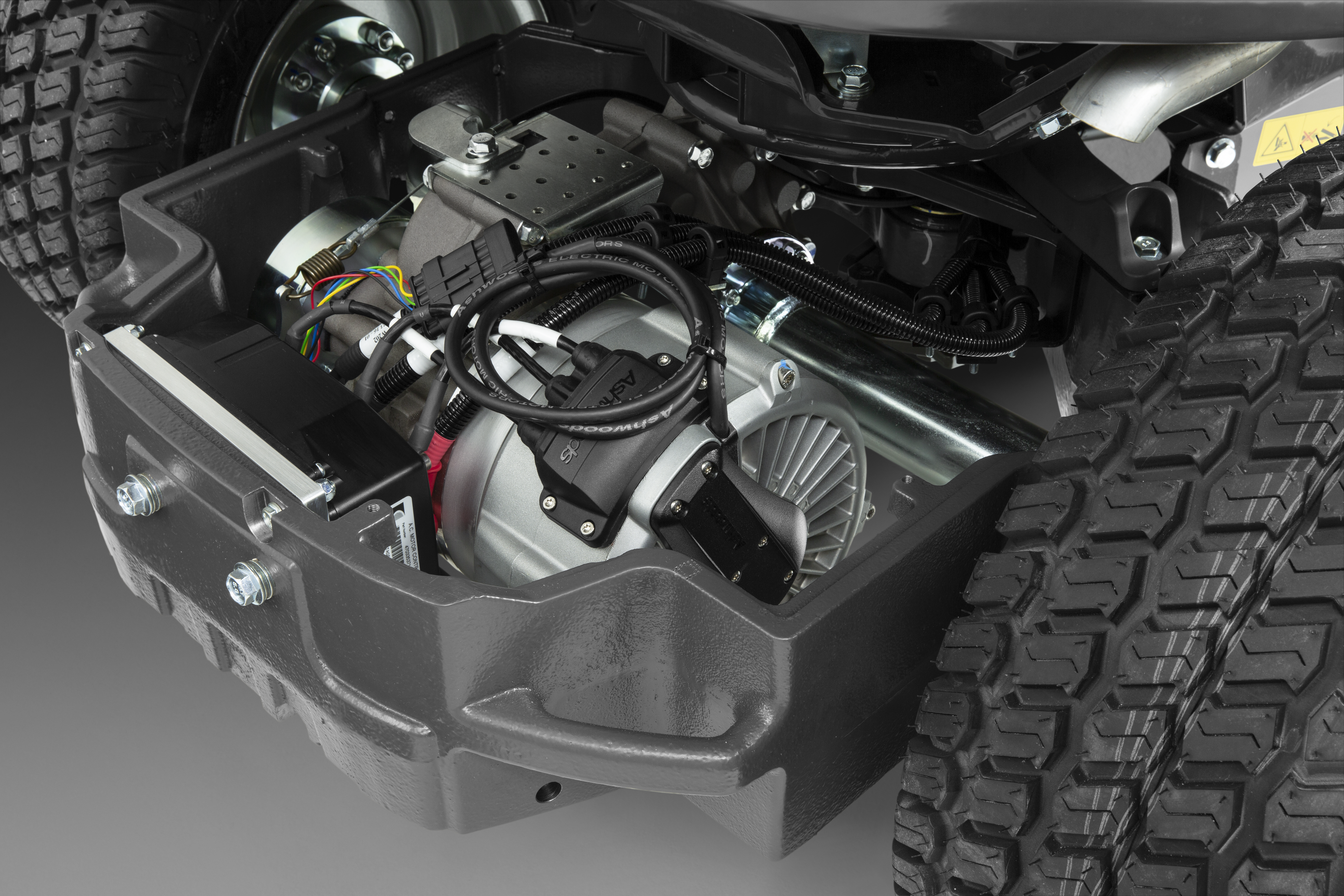

The All-Wheel Drive (AWD) propulsion system is electronically controlled via integrated sensors which ensures optimized traction. The drive wheels individually and automatically set the correct speed in all situations, which eliminates the need of intermittent speed calibration of the drive system.

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.

Intuitive hi-resolution touch color screen. The 5-inch capacitive touch display communicates with the driver through dynamical graphic information, assists in handling and gives real time data and warnings. Clear visibility even in full sunlight. (Interaction with touch can only be used during machine standstill).

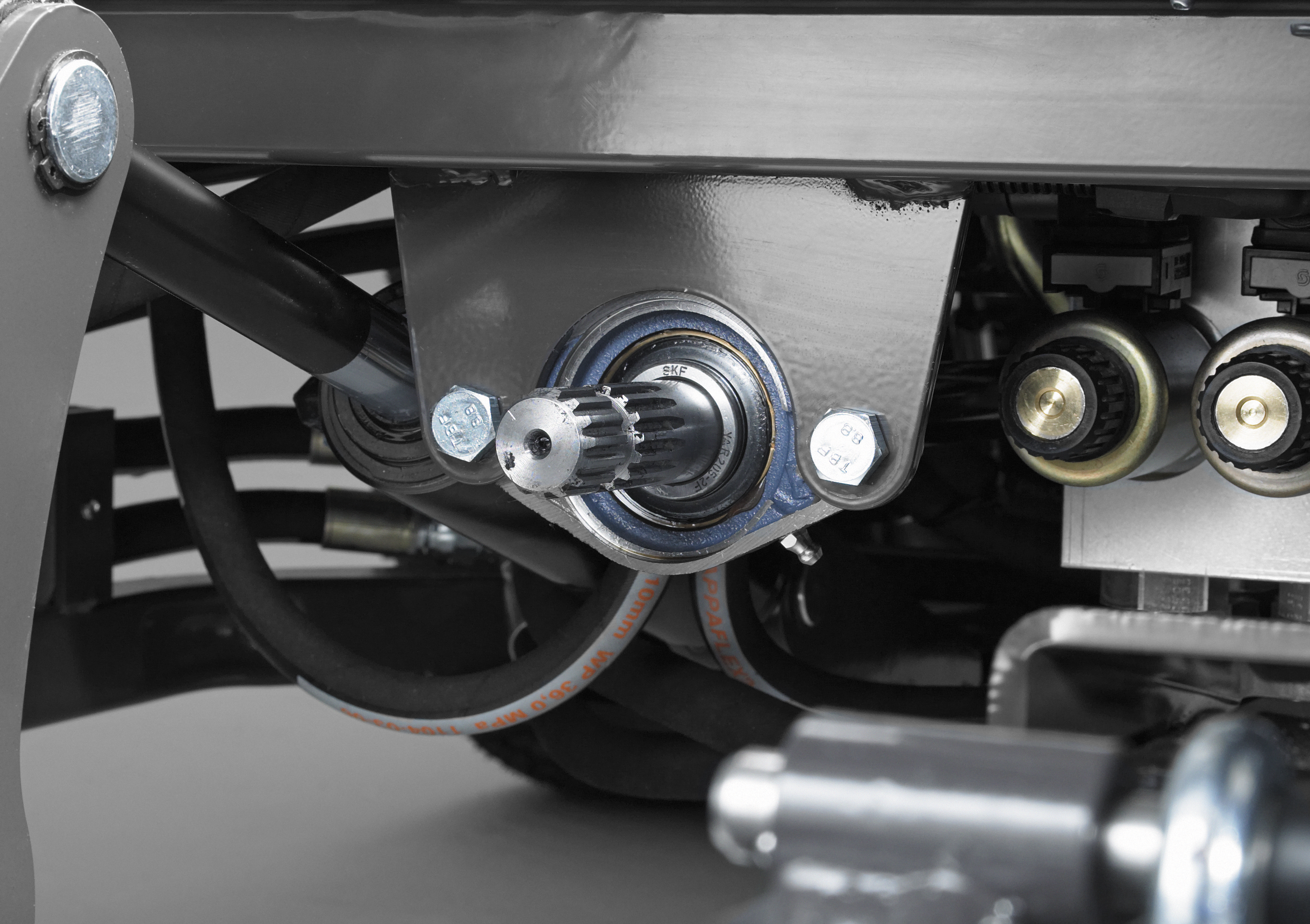

Solid and hardened PTO axle for maximum efficiency and durability.

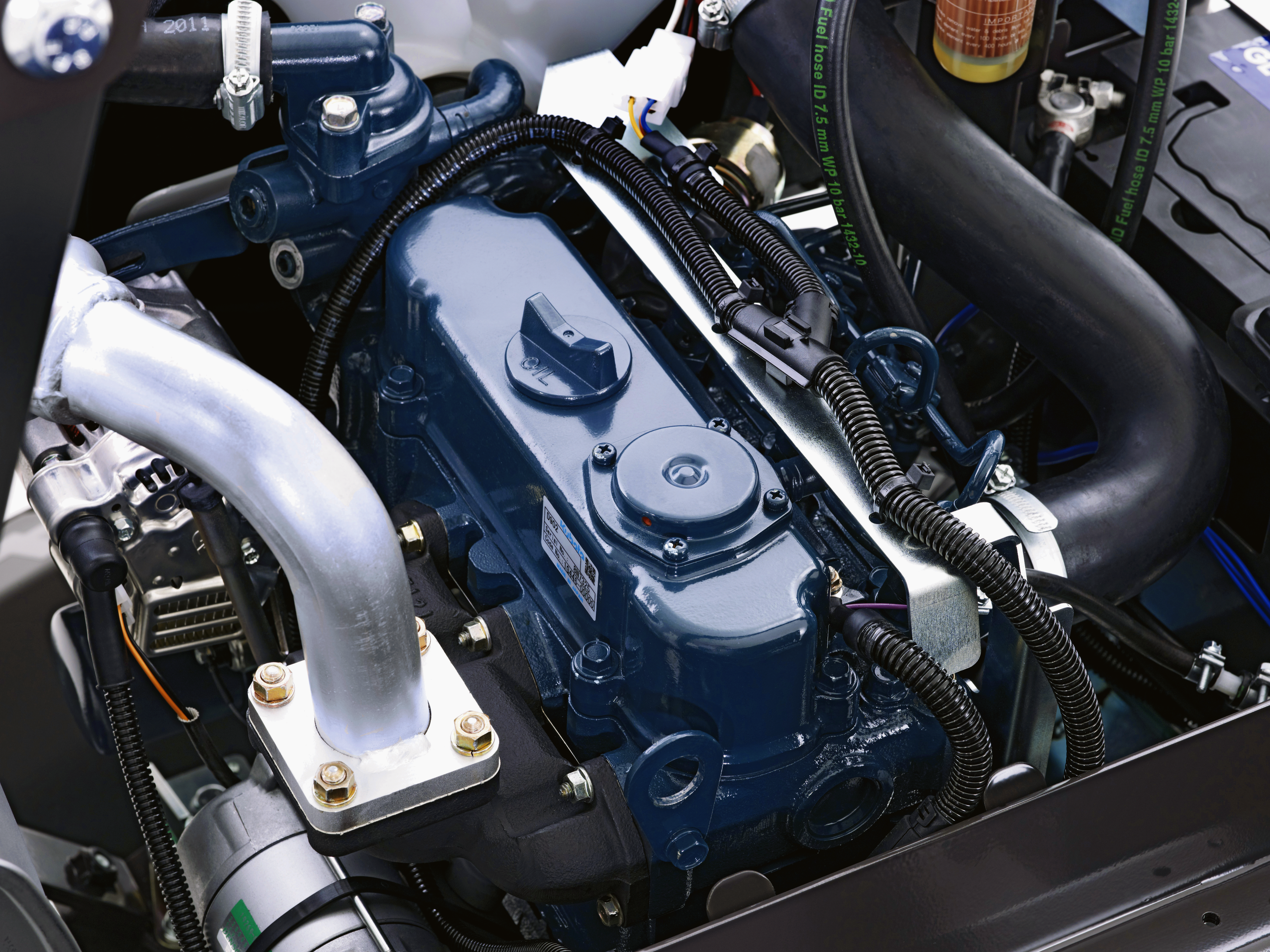

High performance 3-cylinder Kubota diesel engine with full pressure lubrication. Combines exceptional power and torque with fuel efficiency and reduced emissions.

High-specified variable piston pumps with separate gear boxes for front and rear axle.

Through an energy efficient electric drive vs normal hydrostatic drive, the energy efficiency in the machines propulsion system is improved by up to 50%. Hence depending on drive cycle, the fuel consumption is lowered by up to 30% when compared to a 25 hp conventional diesel frontmower working under the same conditions.

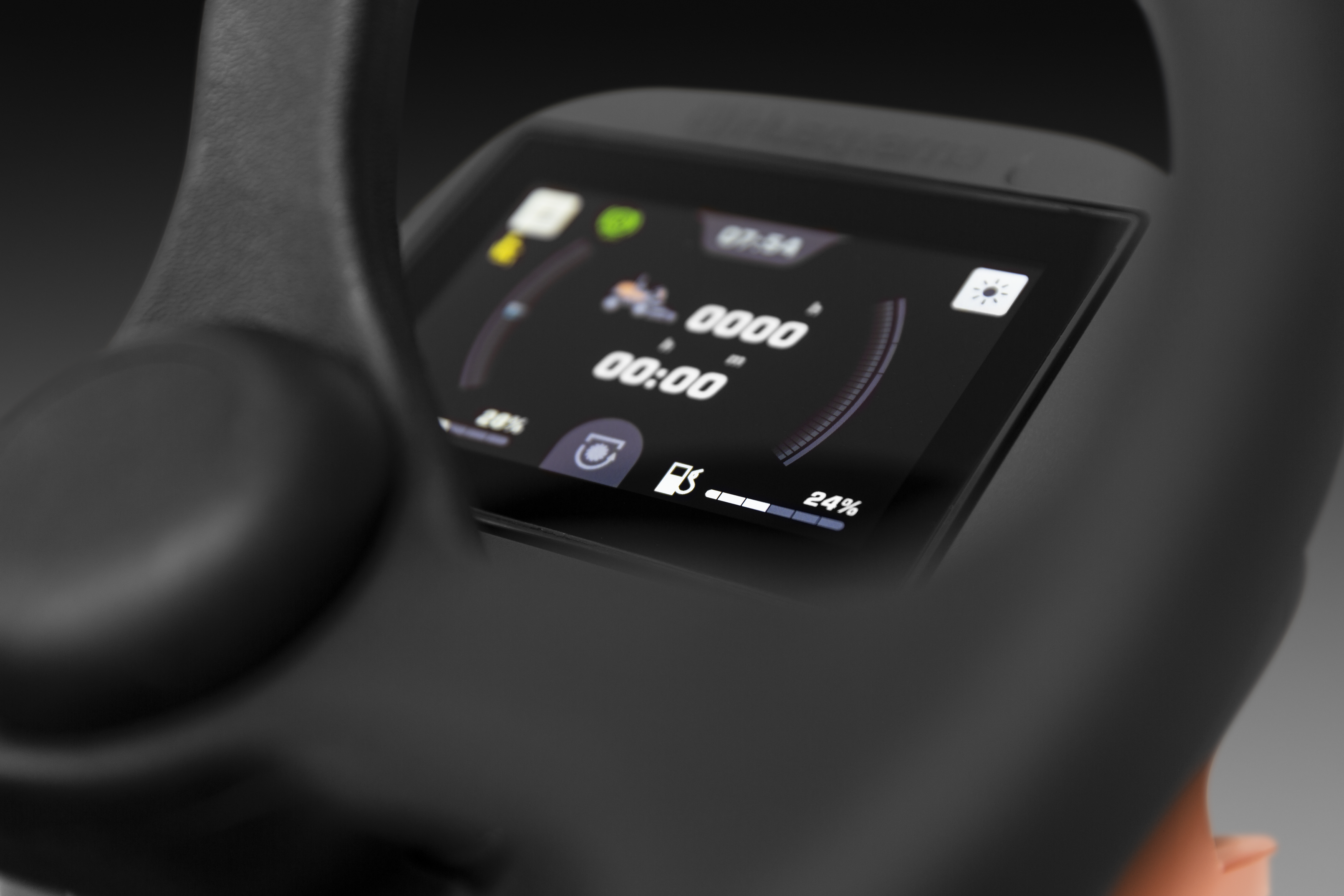

Electronic gauge of fuel volume in tank, built-in low-level warning system. Clear and easily read via the LED display panel.

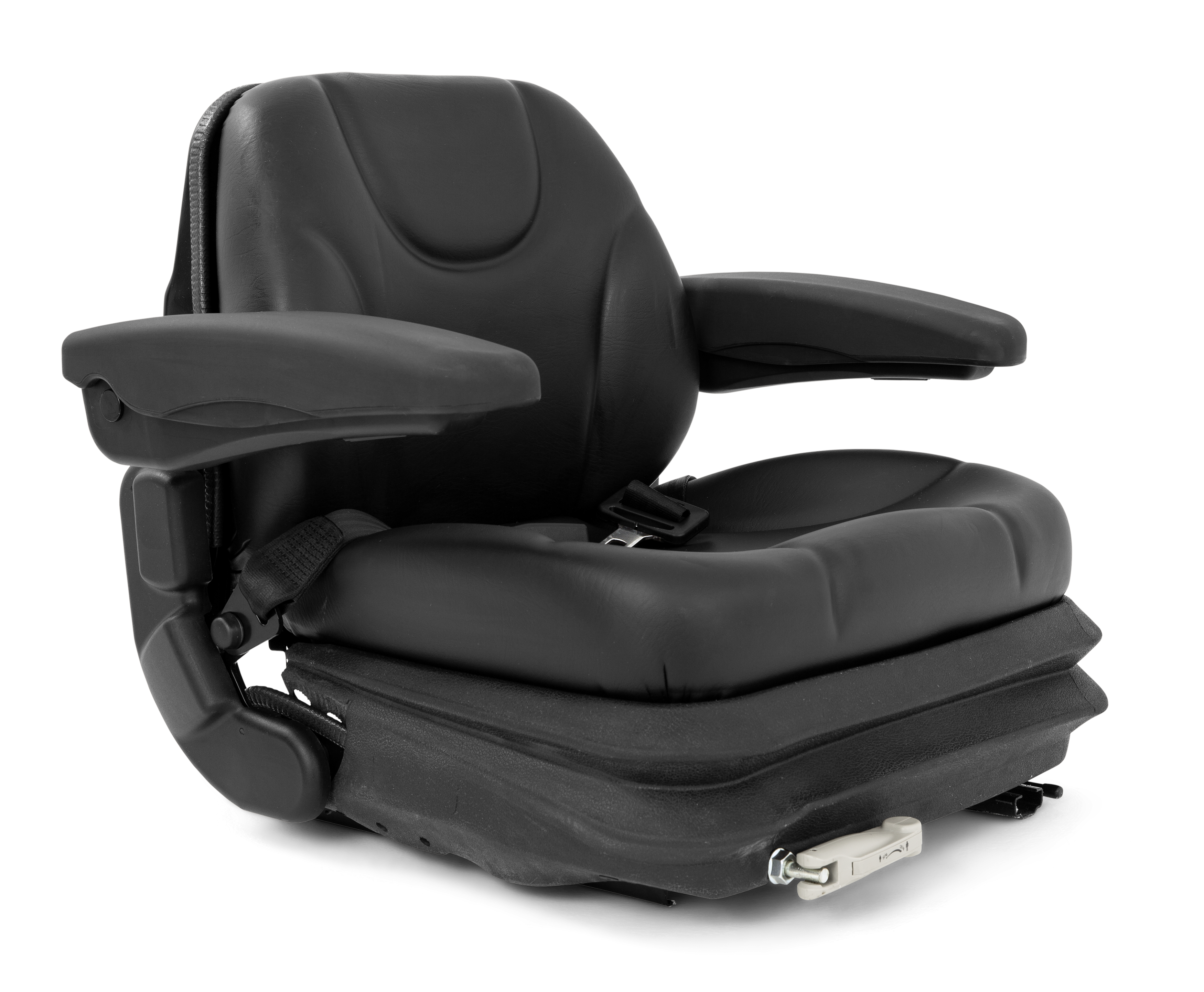

Commercial premium seat with a low-profile suspension and quick weight adjustment. The broad ergonomic seat cushions and the height- and angle adjustable armrests gives great support for the body. Equipped with automatic retractable seat belt and a lumbar support for the sensitive lumbar region.

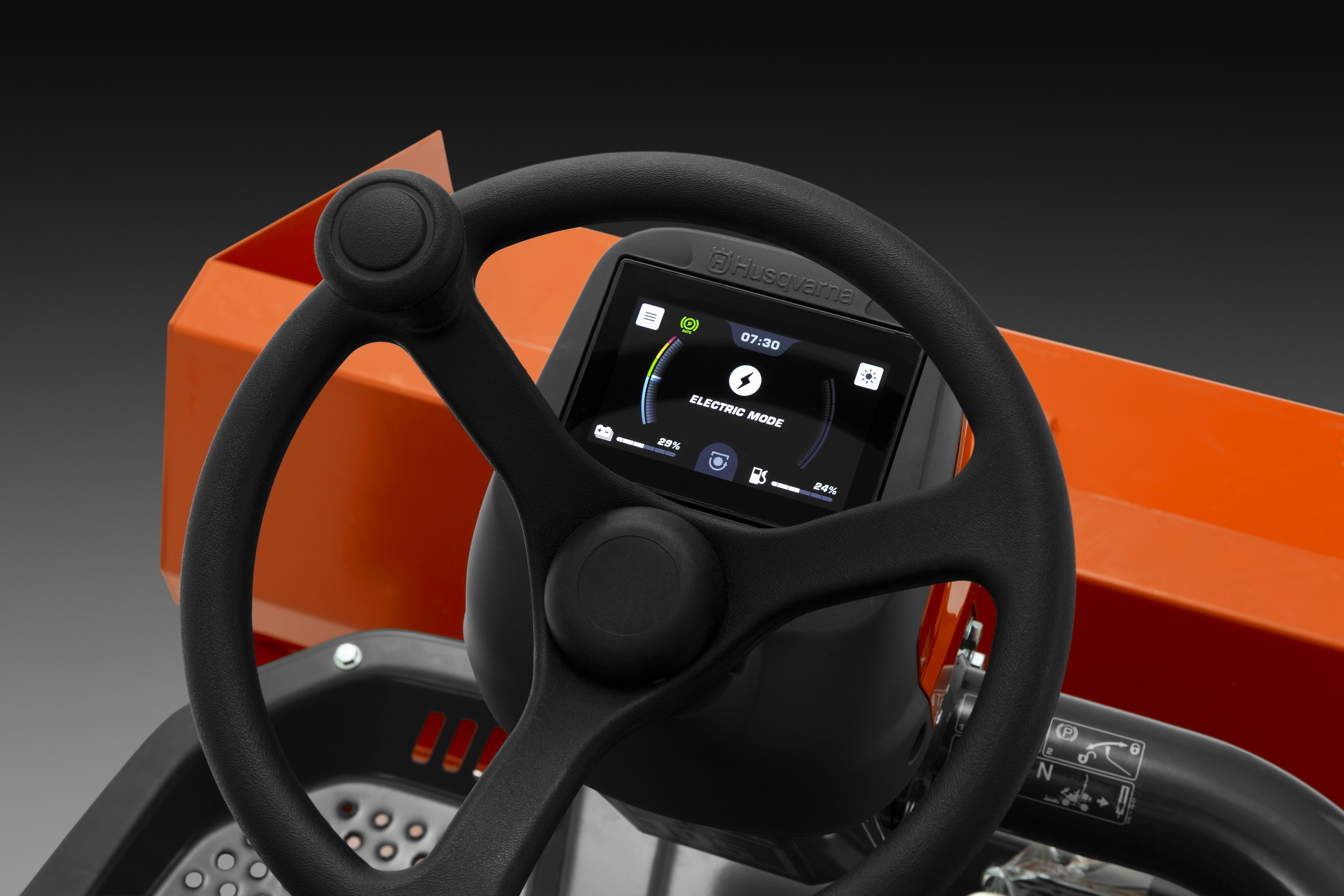

Equipped with electric drivetrain enables the operator to transport almost silently or use as tool carrier in pure electric mode, free from exhausts. Very useful for working with bucket or for assignments with tow-behind tools in residential or in sound sensitive areas.

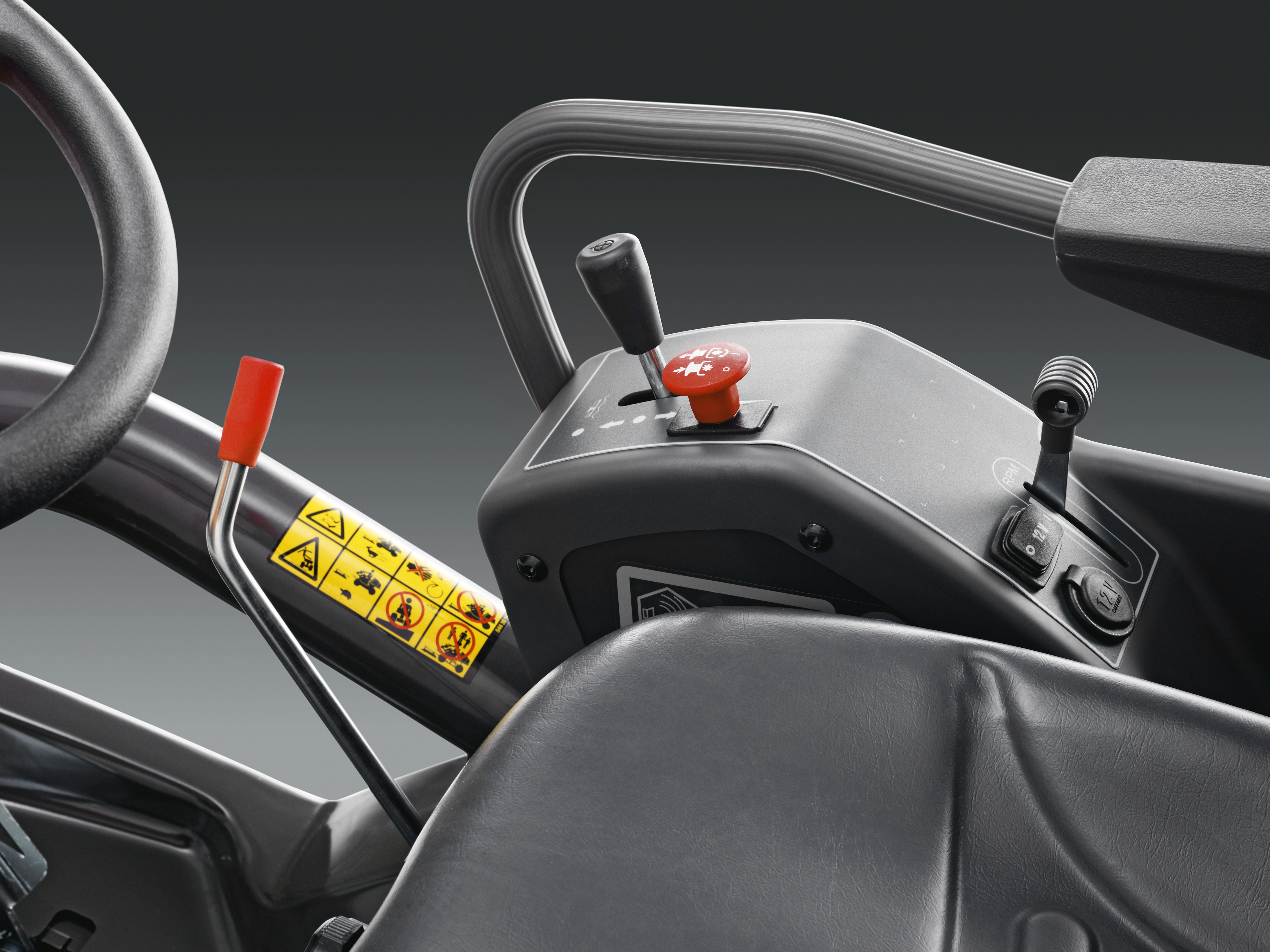

Controls are easy accessible and designed for optimum user comfort.

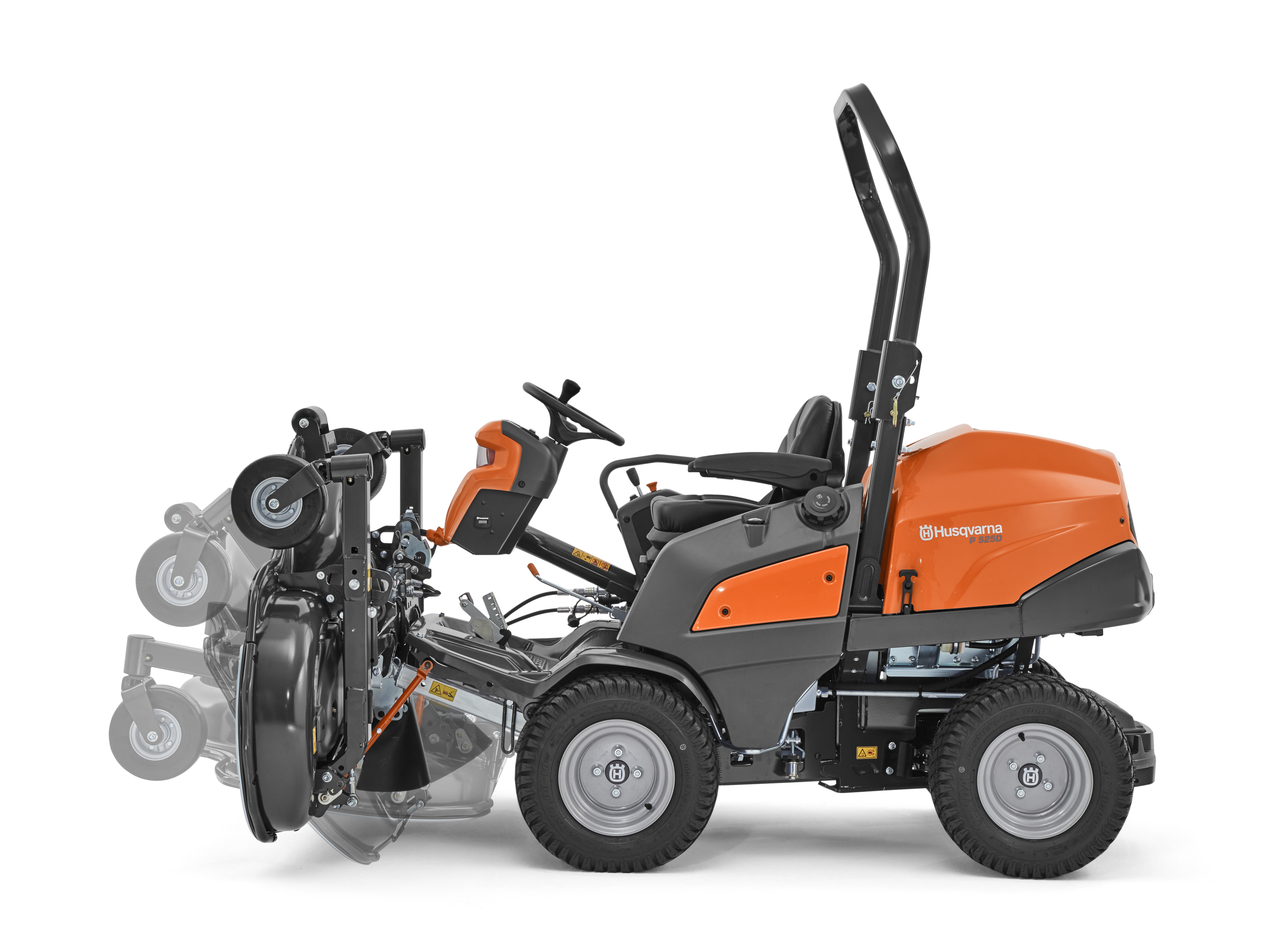

Service postion on the cutting deck facilitates cleaning and service.

Unique quick coupling allows attachments to be changed quickly and efficently without tools.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.

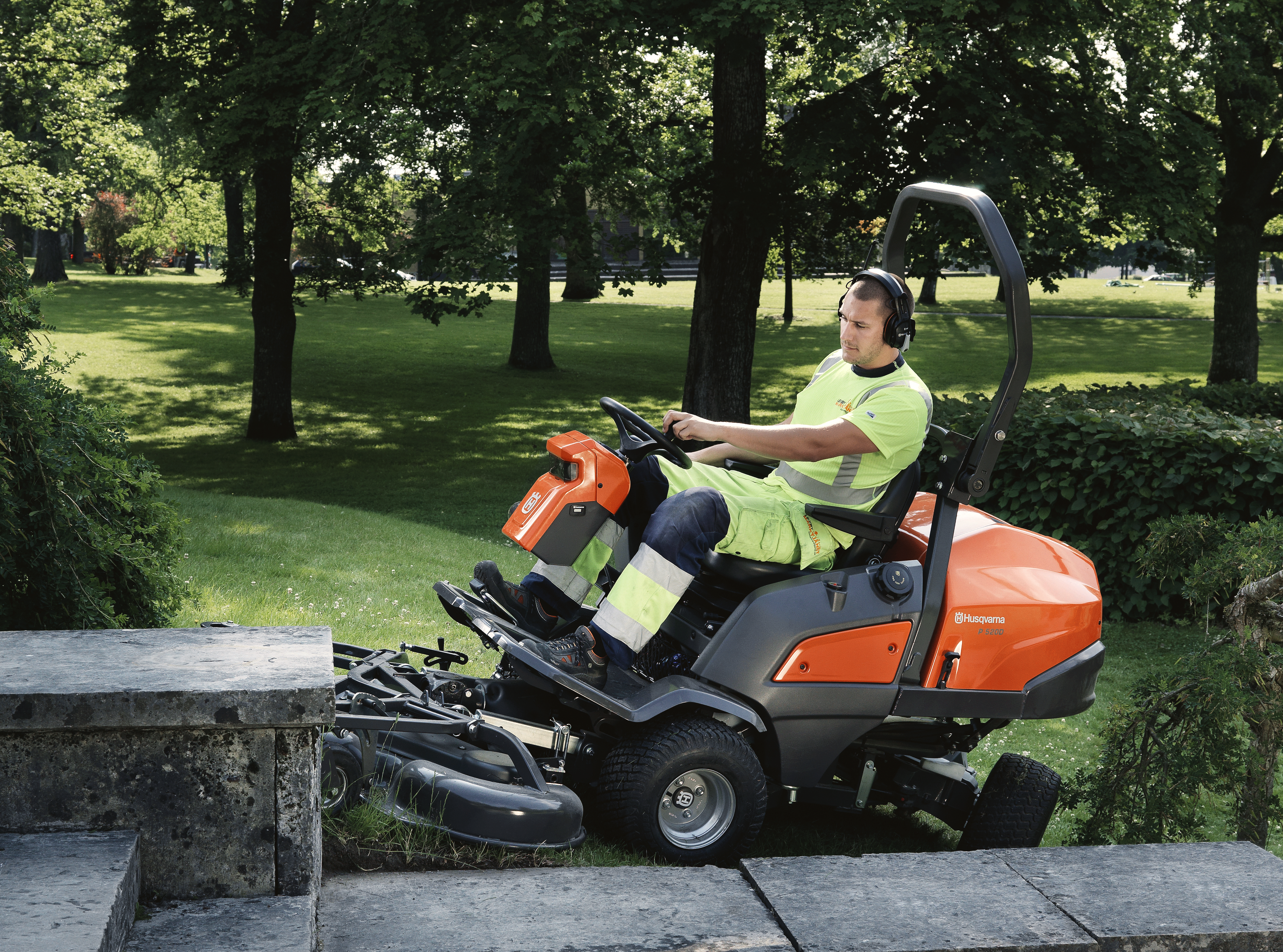

The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.

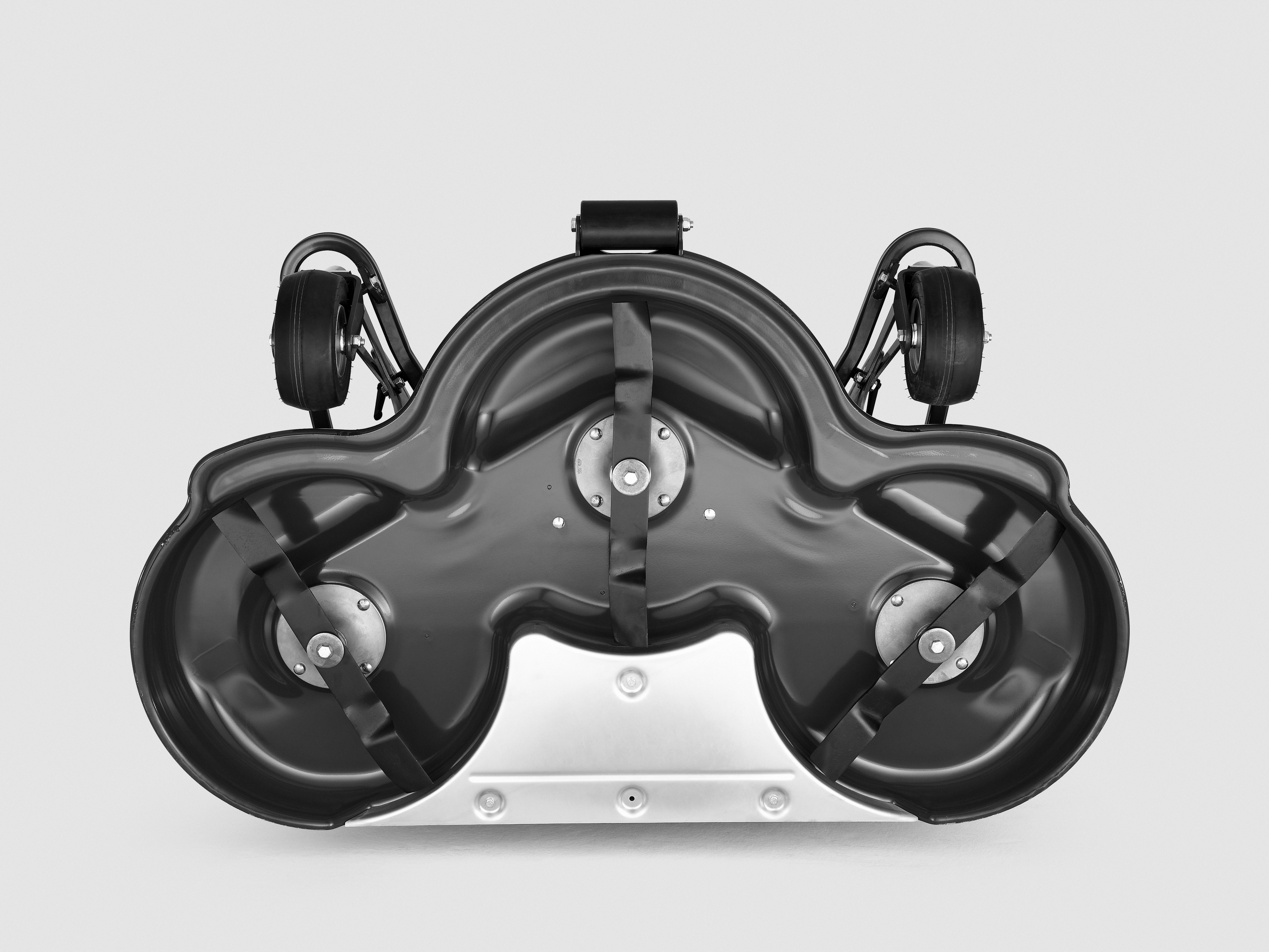

The cutting deck is stamped from one single sheet of 4.5 mm (7 gauge) steel.

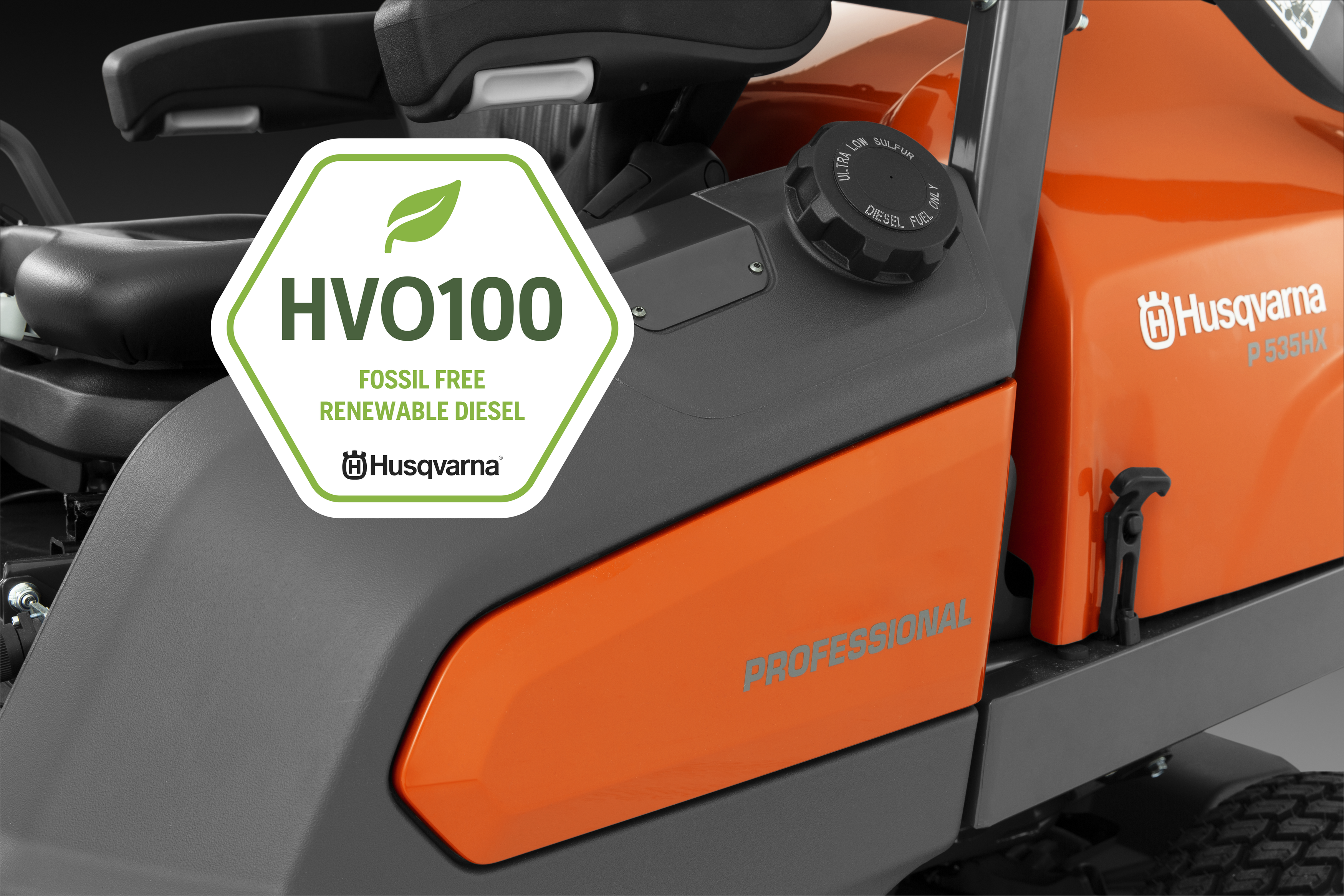

Hydrogenated Vegetable Oils (HVO) is a 100% synthetic diesel made from renewable materials. Reduces carbon emissions by between 30 and 90% compared to regular diesel, depending on the raw material.
