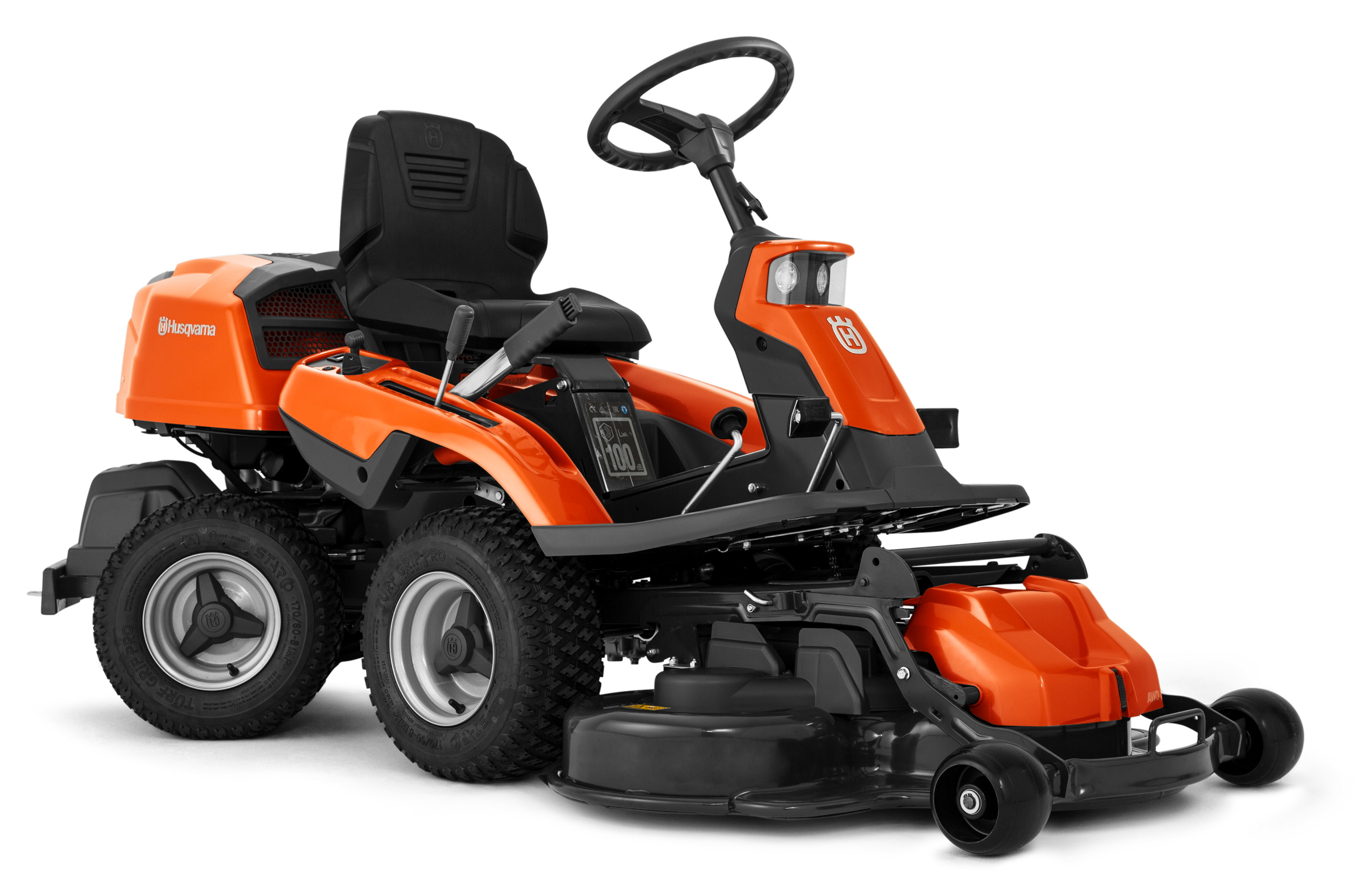

Husqvarna R 216T AWD Front Deck Mower

SKU: 970542401 Category:

£4,955.16 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

As an installer, I recommend the Husqvarna R 216T AWD where you need a robust, comfortable ride‑on for larger or more challenging lawns. It’s an all‑wheel‑drive Rider with articulated steering, pedal‑operated hydrostatic transmission and the option of a 94 cm or 103 cm Combi cutting deck for BioClip® (mulching) or rear ejection.

All‑wheel drive and traction

AWD and a pivoting rear axle give improved traction on slippery or uneven ground, helping maintain forward progress and stability where a rear‑wheel only machine might slip.

Cutting versatility

The Combi cutting deck is offered in 94 cm or 103 cm widths and supports BioClip® (mulching) or rear ejection. The three‑blade deck gives consistent trim left and right for an even finish.

Excellent manoeuvrability

Articulated steering and a minimal turning radius let you work tight areas around trees, benches and shrubs without awkward reversing or missing patches.

Key specification
Article ID 970542401
Transmission Hydrostatic
Full specification
Weight (excl. cutting equipment) 225 kg
Battery Chemistry Lead-Acid
Cylinder displacement (metric) 586 cm³
Connectivity Not applicable
Exhaust emissions (CO₂ EU V) 778 g/kWh
Sound pressure level at operators ear (LpA) 85.9 dB(A)
Sound power level, guaranteed (LWA) 99 dB(A)
Power source Petrol
Sound power level, measured 98.1 dB(A)
Battery capacity 24 Ah
Cutting height max (metric) 75 mm
Cutting height min (metric) 25 mm
Serie 200-serie
Cylinders 2
Net power at preset rpm Energy 12.0 kW
Engine brand Husqvarna
Net power at preset rpm 2900 rpm
Engine name HV 586AE
Transmission type Hydrostatic
Motor/engine manufacturer Husqvarna
Base machine, length (metric) 194 cm
Base machine, width (metric) 88 cm
Base machine, height (metric) 113 cm
Engine cooling Air
Engine lubrication type Pressure with Oilfilter
Oil filter Yes
PTO (Power Take Off) Belt Drive
Drive method Dual pedal-operation
Speed forward max (metric) 9 km/h
Speed reverse max (metric) 6 km/h
Uncut circle (metric) 30 cm
Cutting width, min (metric) 94 cm
Cutting width, max (metric) 103 cm
Blade engagement Automatic
Seat suspension Yes
Seat type Comfort
Hour meter type Digital
Seat material PU
Seat back height Medium
Foldable seat Yes
Steering wheel type Ergonomic
Parking brake, type Disc
Tyre dimensions, front 170/60-8
Tyre dimensions, rear 170/60-8
Wheelbase (metric) 89 cm
Ground clearance (metric) 85 mm
Gross weight towed (metric) 110 kg
Vibration level steering wheel 0.29 m/s²
Vibration level seat 1.9 m/s²
Drive system All-wheel drive
Steering knob Optional

Key features

Pivoting rear axle

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Adjustable steering wheel

Adjustable steering wheel

Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

Hour meter

Hour meter

Hour meter for easy control of operating time and service and maintenance intervals.

Four large wheels

Four large wheels

16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Automatic blade engagement

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Transparent fuel tank

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.

Three-blade cutting deck

Three-blade cutting deck

The three-blade cutting deck offers first-class trimming on both left and right side and gives the same uncut circle diameter regardless of direction.

Front-mounted cutting deck

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Pedal-operated hydrostatic transmission

Pedal-operated hydrostatic transmission

Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

Easy-access cutting height lever

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Engine behind driver

Engine behind driver

The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.

Storage compartment

Storage compartment

The open left storage makes it easy to access your items while mowing.

Bottle holder

Bottle holder

Convenient bottle holder for refreshments.

External fuel cap

External fuel cap

Thanks to the external fuel cap, you don’t have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier.

Combi cutting deck

Combi cutting deck

The Combi cutting deck allows you to choose between two cutting systems depending on the conditions. Choose BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.

Unique articulated steering

Unique articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.

Comfortable driver's position

Comfortable driver’s position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider’s low gravity centre contributes to extra good traction as well as a comfortable ‘sit-in’ feeling for the user.

Combi cutting deck with BioClip® (mulching)

Combi cutting deck with BioClip® (mulching)

BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

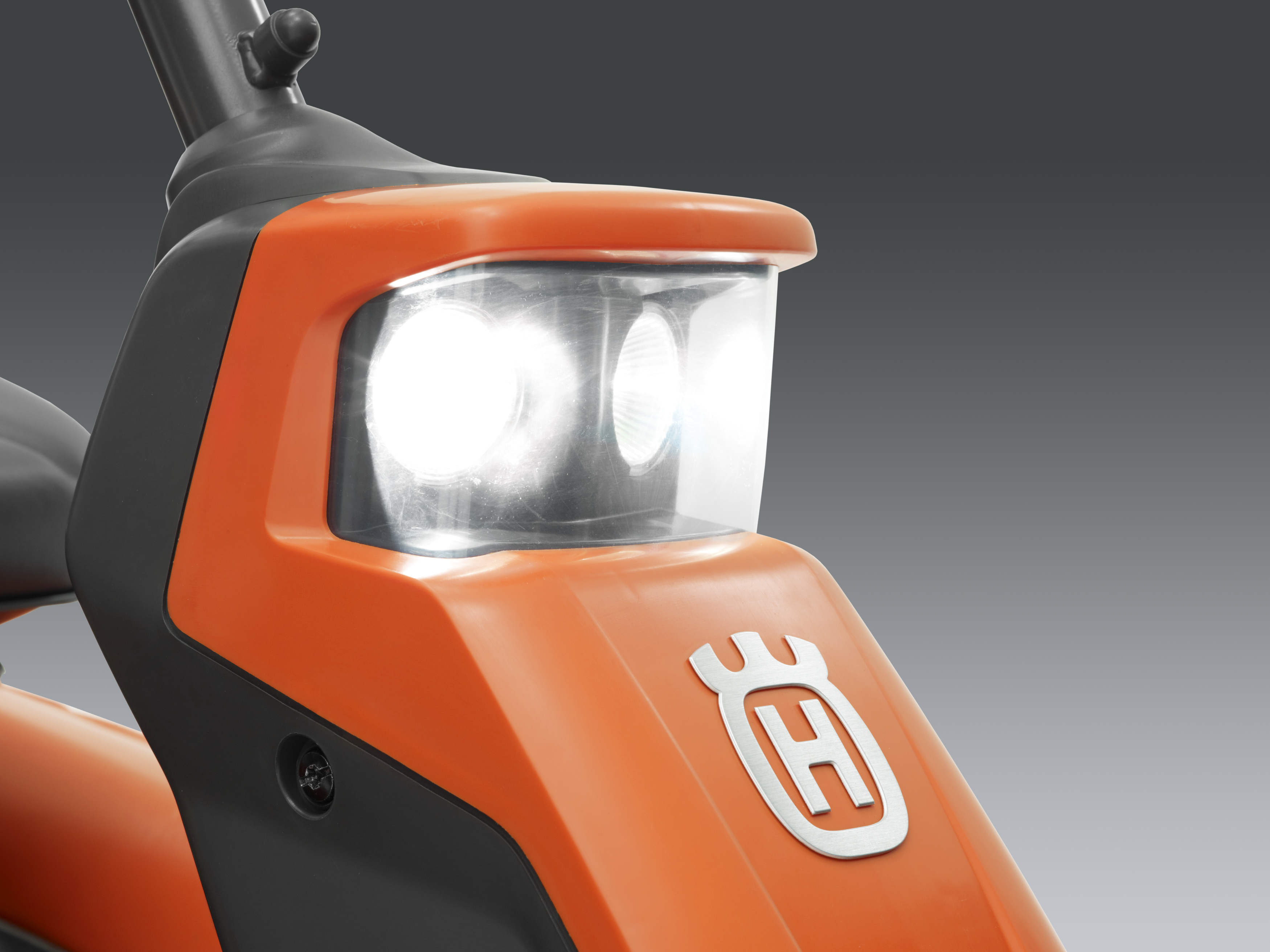

LED head lights

LED head lights

LED lights for improved visibility and enlarged lighted area in darker conditions.

Easy access

Easy access

The tilting hood and easy-access servicing points make maintenance and servicing easy.

Product video

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

What cutting widths are available?

You can fit a 94 cm or 103 cm Combi cutting deck. The Combi deck lets you choose BioClip® (mulching) for frequent lawn fertilisation or rear ejection for longer, coarser grass.

Is this Rider suitable on slopes and slippery ground?

Yes. The all‑wheel drive combined with a pivoting rear axle and low centre of gravity improves traction and stability on slopes and uneven surfaces. Always follow safe working practices for gradients and ground conditions.

How easy is maintenance and servicing?

Service access is straightforward — the hood tilts for easy access, there are dedicated servicing points and a digital hour meter to track intervals. The fuel tank is transparent with an external filler to simplify refuelling.

Additional information

Weight 225.000 g
UPC|EAN

7392930759893
