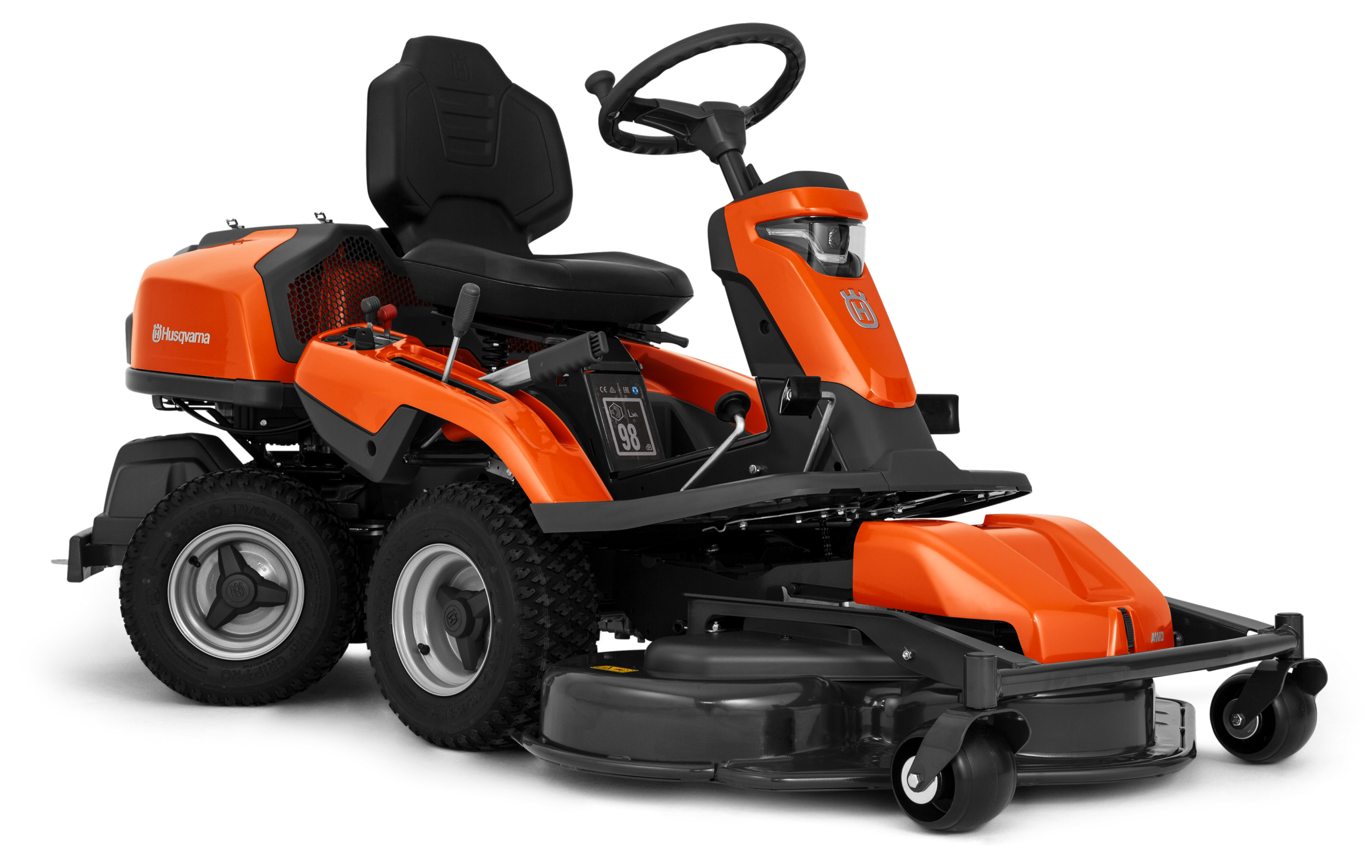

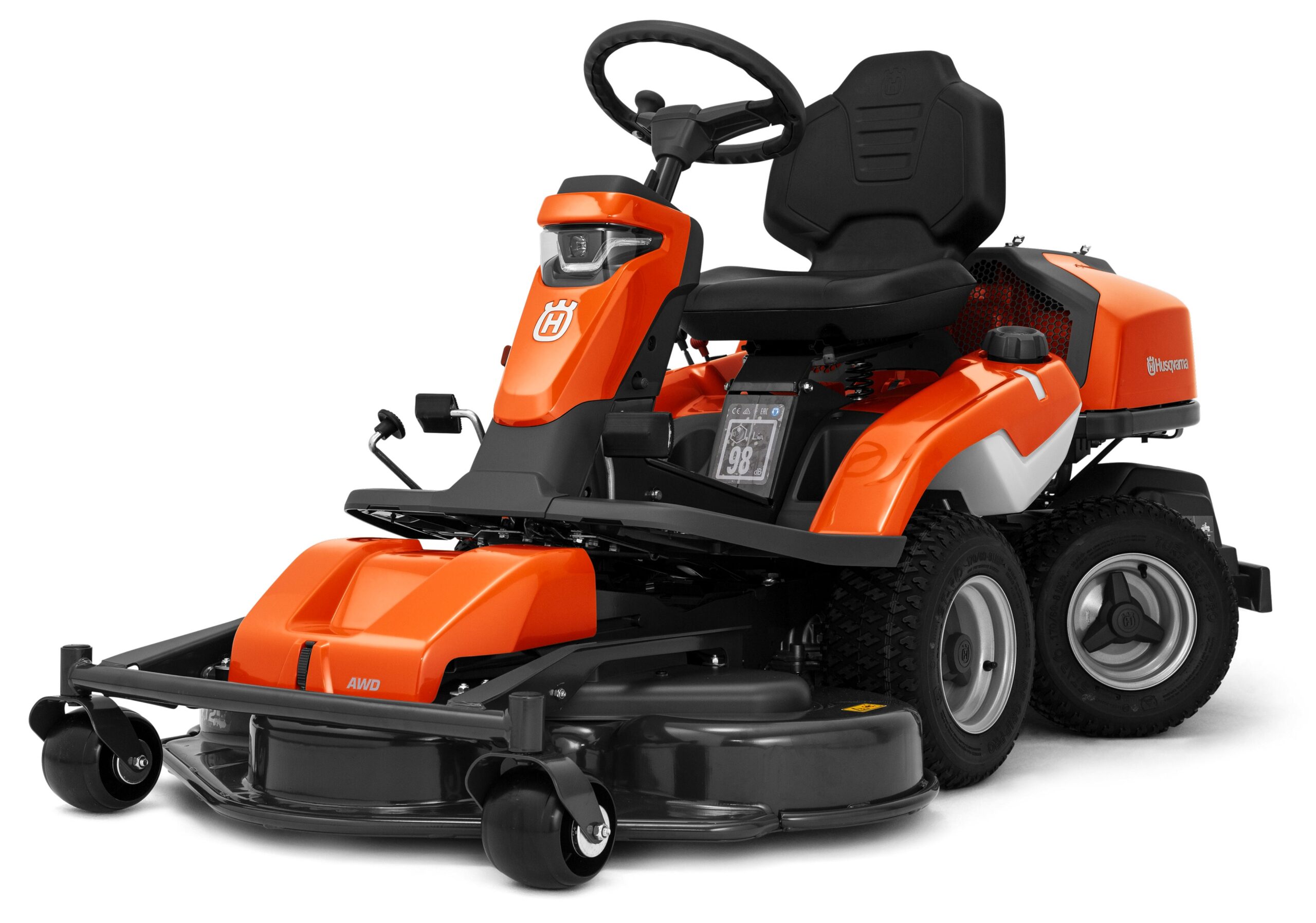

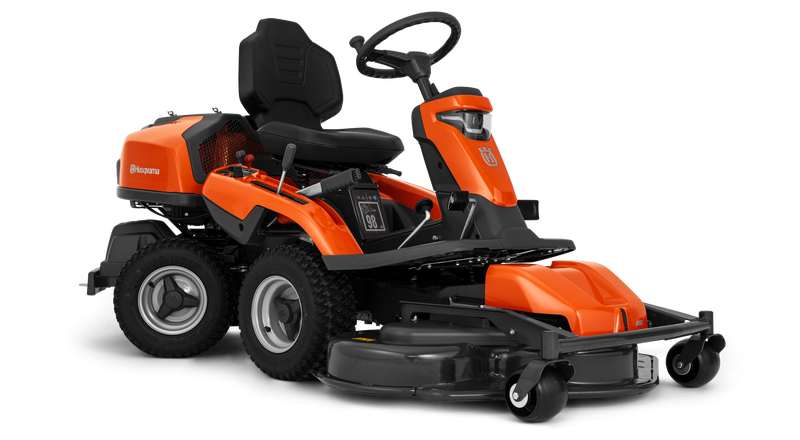

Husqvarna R 316TsX AWD Lawnmower

Versatile all-wheel drive Rider for year-round use
A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth

Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

HMI Display
The intuitive HMI display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver’s work.

Attachment frame
The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.

Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 103 or 112 cm Combi cutting decks for efficient BioClip and rear ejection cutting.

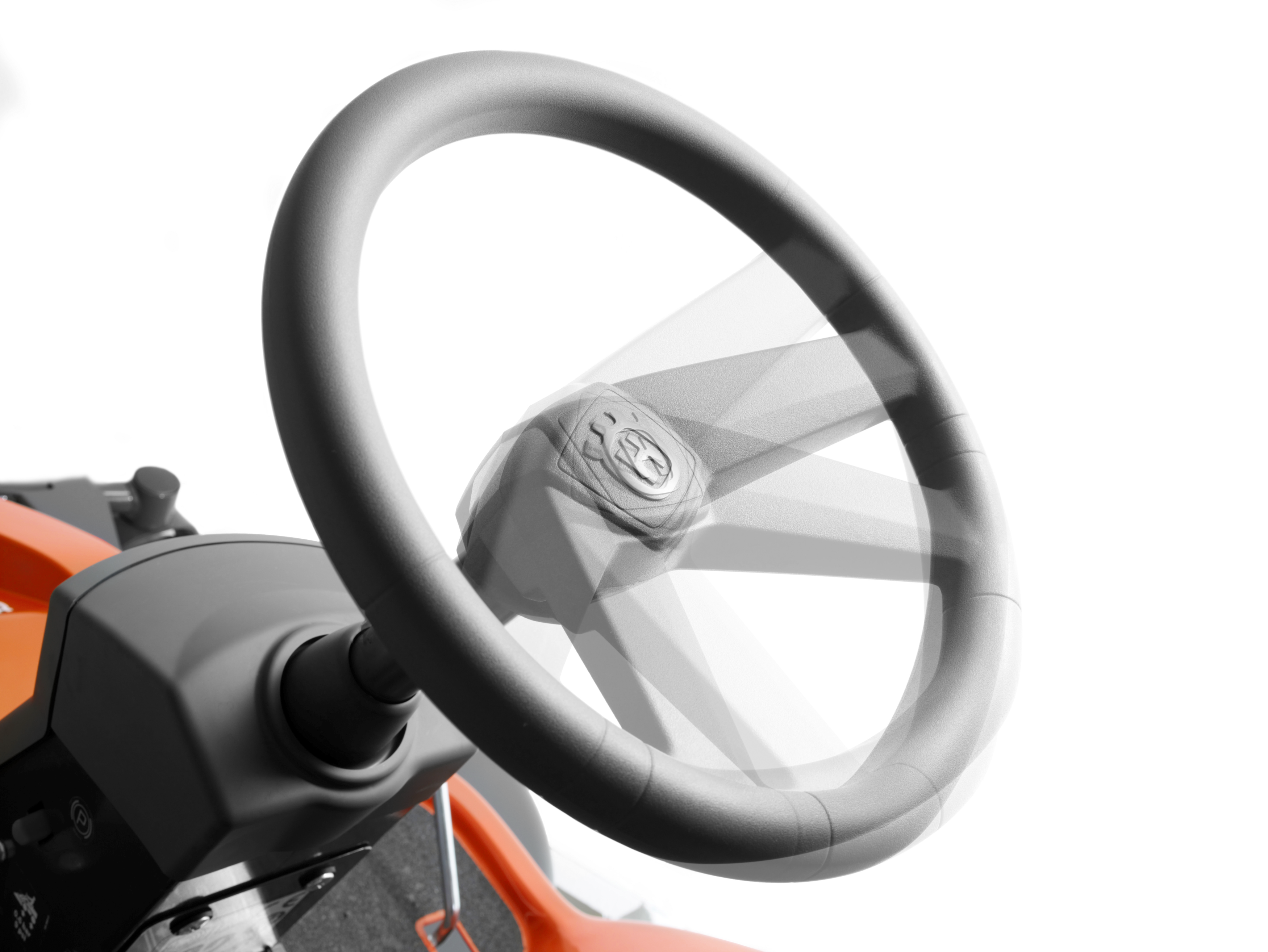

Power-assisted steering
Power-assisted steering makes driving less strenuous and more enjoyable.

Comfortable driver’s position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider’s low gravity centre contributes to extra good traction as well as a comfortable ‘sit-in’ feeling for the user.

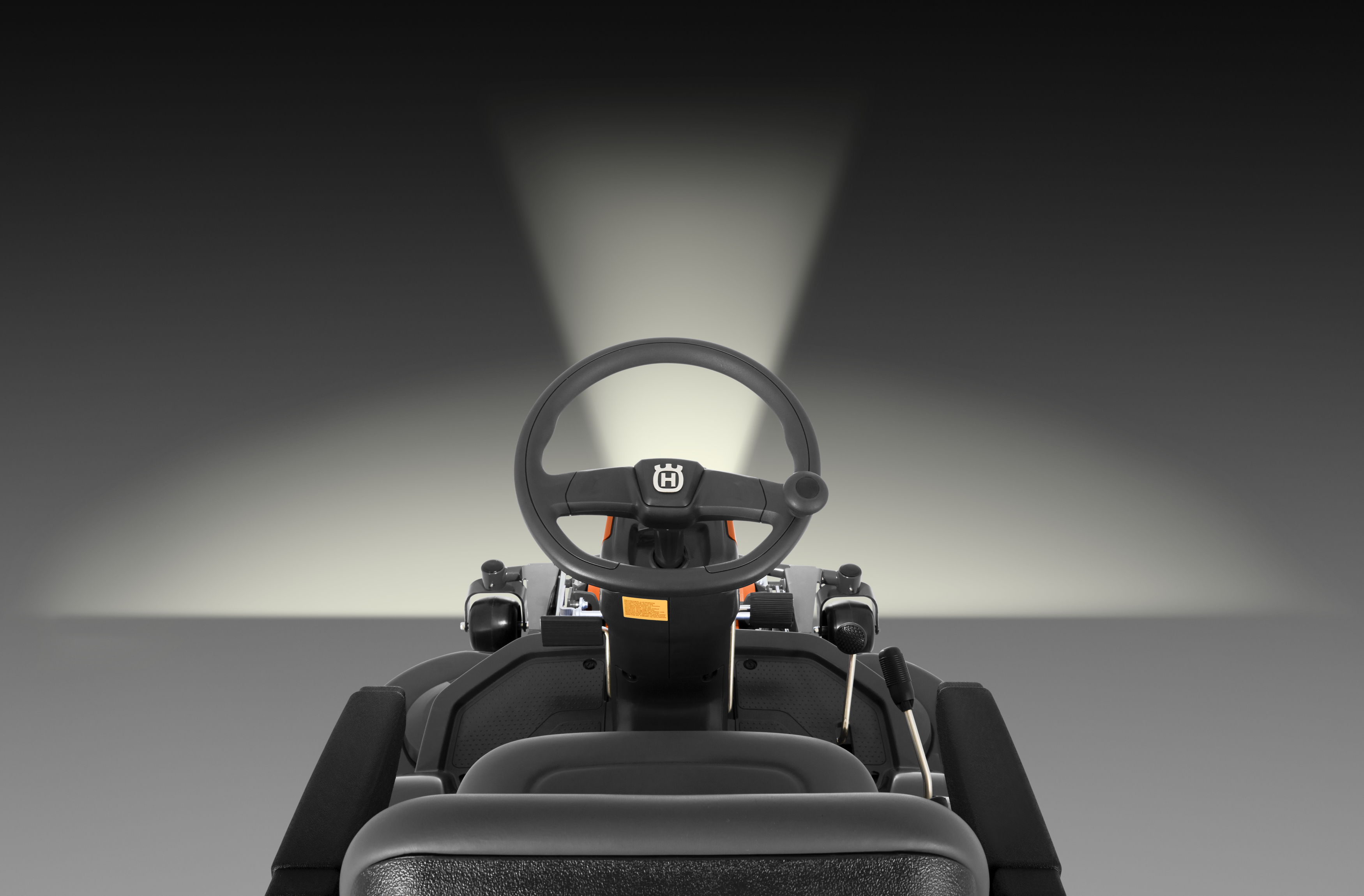

Dual LED lights for improved visibility, both near and remote.
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.

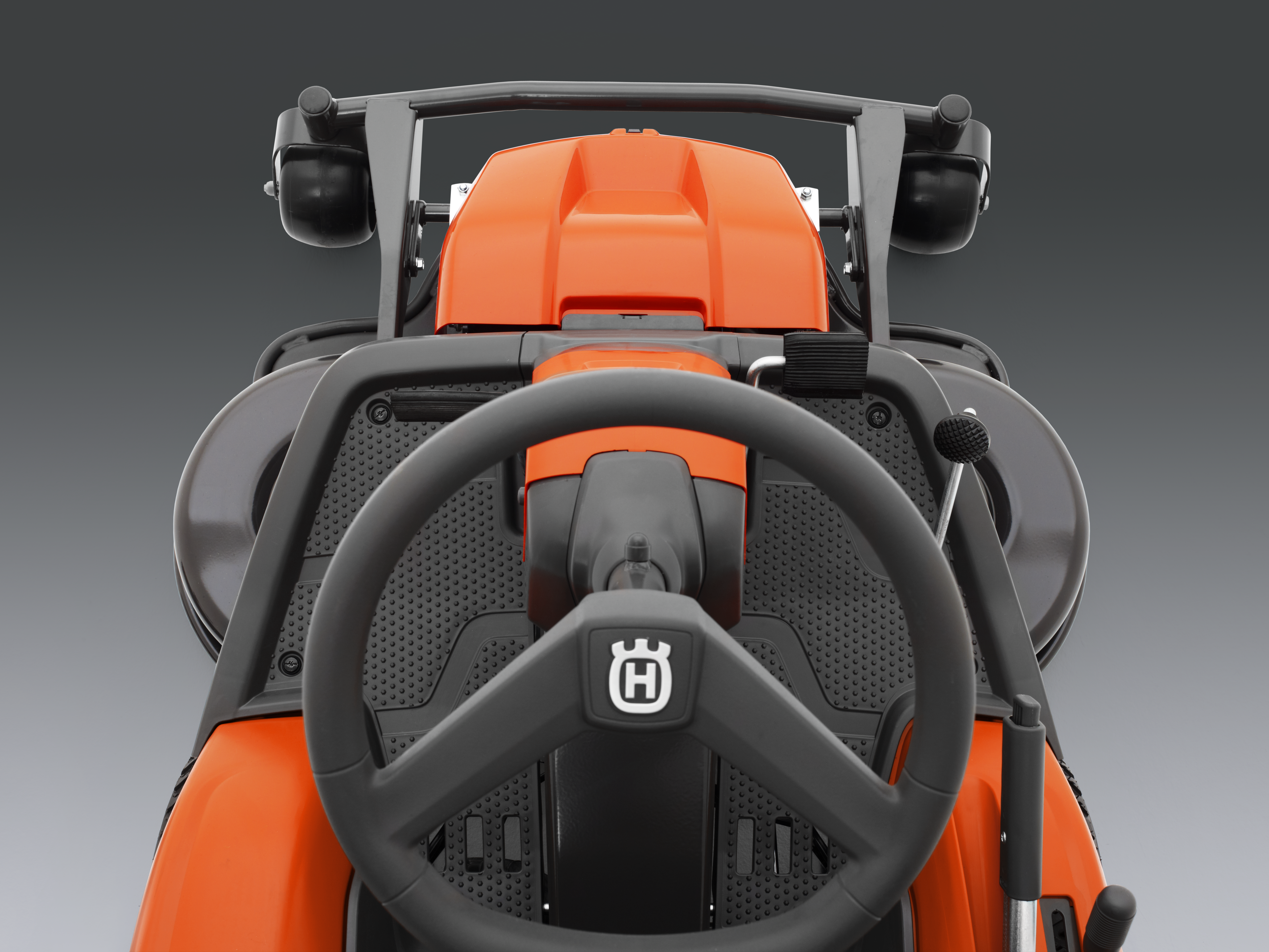

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Unique articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.

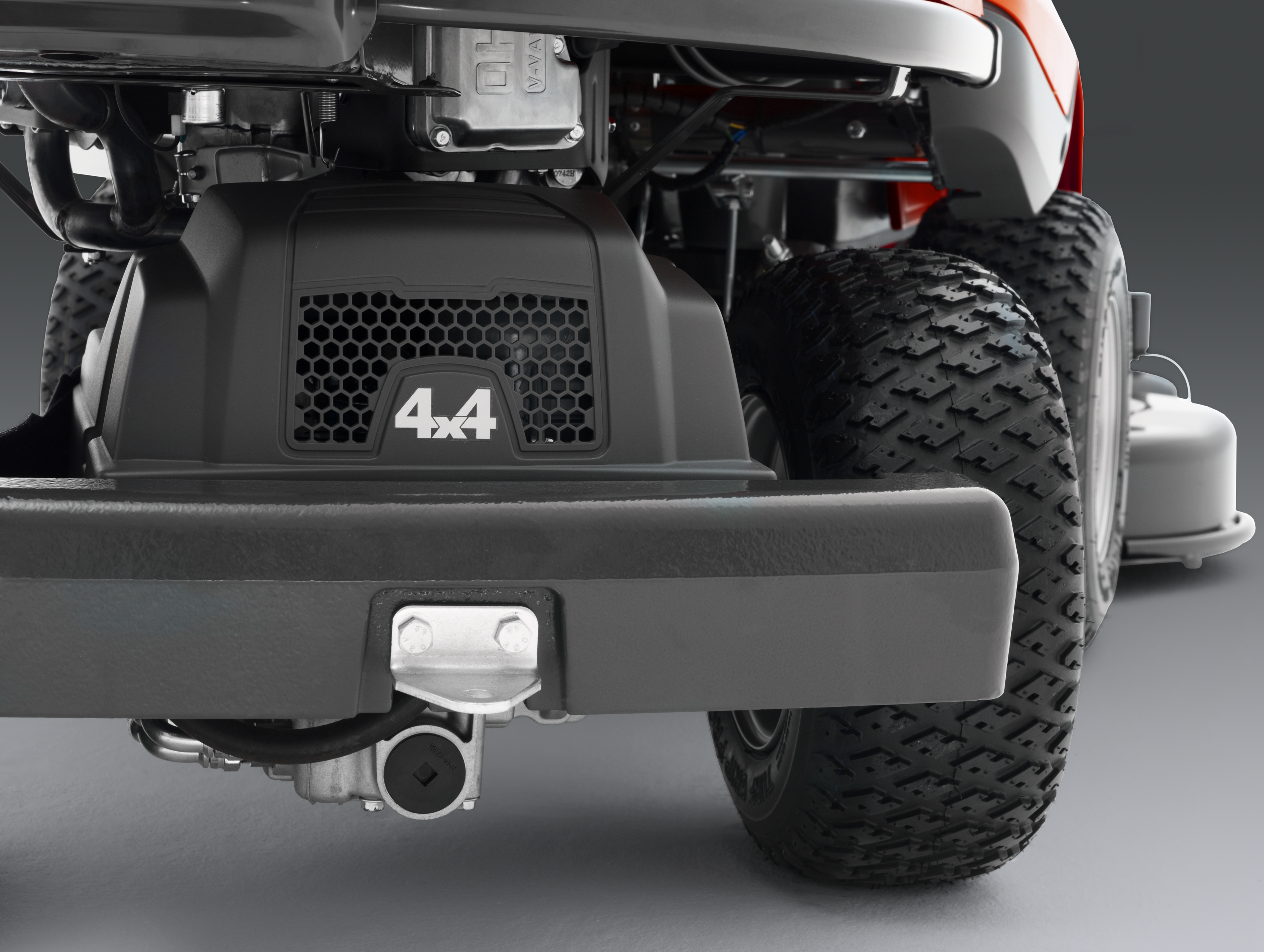

All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.

Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.

Engine
R 316TsX AWD RIDER
Art no: 970 54 29-01

Power/fuel type
Petrol

Net power at preset rpm Energy
9.7 kW

Net power at preset rpm
3,100 rpm

Engine brand
Kawasaki

Motor/engine manufacturer
Kawasaki

Engine name
FS481V

Cylinder displacement
603 cm³

Cylinders
2

Engine cooling
Air

Engine lubrication type
Full pressure

Oil filter
Yes

Emission
R 316TsX AWD RIDER
Art no: 970 54 29-01
Exhaust emissions (CO2 EU V)
2
851 g/kWh

Battery
R 316TsX AWD RIDER
Art no: 970 54 29-01

Battery capacity
24 Ah

Battery Chemistry
Lead-Acid

Battery Weight
7 kg

Battery brand
Global

Cutting deck
R 316TsX AWD RIDER
Art no: 970 54 29-01

Uncut circle
30 cm

Cutting width, min
94 cm

Cutting width, max
112 cm

Cutting height min
25 mm

Cutting height max
75 mm

Blade engagement
Automatic

Dimensions
R 316TsX AWD RIDER
Art no: 970 54 29-01

Tyre dimensions, front
170/60-8

Tyre dimensions, rear
170/60-8

Wheelbase
88.7 cm

Ground clearance
90 mm

Base machine, length
200.8 cm

Base machine, width
88.7 cm

Base machine, height
118.1 cm

Gross weight towed
125 kg

Weight (excl. cutting equipment)
251 kg

Drive system
R 316TsX AWD RIDER
Art no: 970 54 29-01

PTO (Power Take Off)
Belt-driven

Transmission type
Hydrostatic

Drive method
Dual pedal-operation

Speed forward max
9 km/h

Speed reverse max
8 km/h

Equipment
R 316TsX AWD RIDER
Art no: 970 54 29-01

Seat suspension
Yes

Seat type
Premium

Hour meter type
Digital with pre-programmed service intervals

Seat material
Vinyl

Seat back height
High

Foldable seat
Yes

Steering wheel type
Comfort

Parking brake, type
Disc

Vibration
R 316TsX AWD RIDER
Art no: 970 54 29-01

Vibration level steering wheel
2.5 m/s²

Vibration level seat
0.7 m/s² articles

Sound and noise
R 316TsX AWD RIDER
Art no: 970 54 29-01

Sound pressure level at operators ear (LpA)
84 dB(A)

Sound power level, guaranteed (LWA)
99 dB(A)

Sound power level, measured
98 dB(A)
