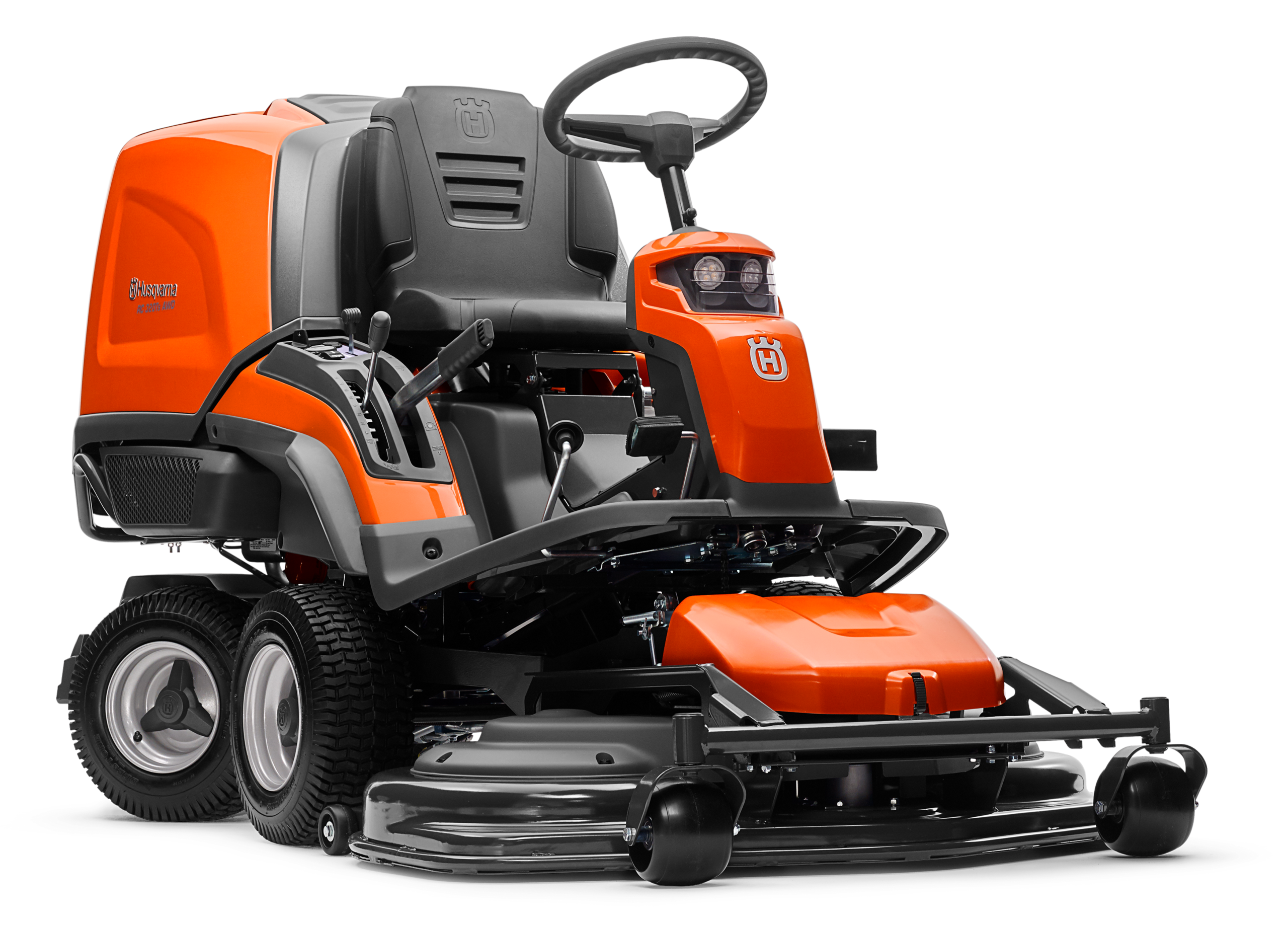

Husqvarna RC 320Ts AWD Lawnmower

All-wheel drive Rider with smart collection system and easy emptying
Husqvarna Rider RC 320Ts AWD offers all-wheel drive and high collection capacity to mow large gardens. This ride-on lawn mower is equipped with an innovative clog-free collection system that feeds the grass clippings directly from the front-mounted cutting deck into the 300-litre bag. Automatic compaction allows more grass in the collector, so you can drive longer before emptying. Cutting height adjustment and emptying can be performed without getting off the machine, contributing to both comfort and efficient work. All-wheel drive provides the power needed to manoeuvrein all types of conditions, and with articulated powered steering, the RC320Ts can also handle tight turns. The cutting deck can be tilted 90 degrees to be easily accessible for service and cleaning.

Non-collecting mode
Switch between collecting and non-collecting mode with the push of a button without leaving the driver’s seat.

Attachment frame
The attachment frame facilitates versatile use and makes it easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.

Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

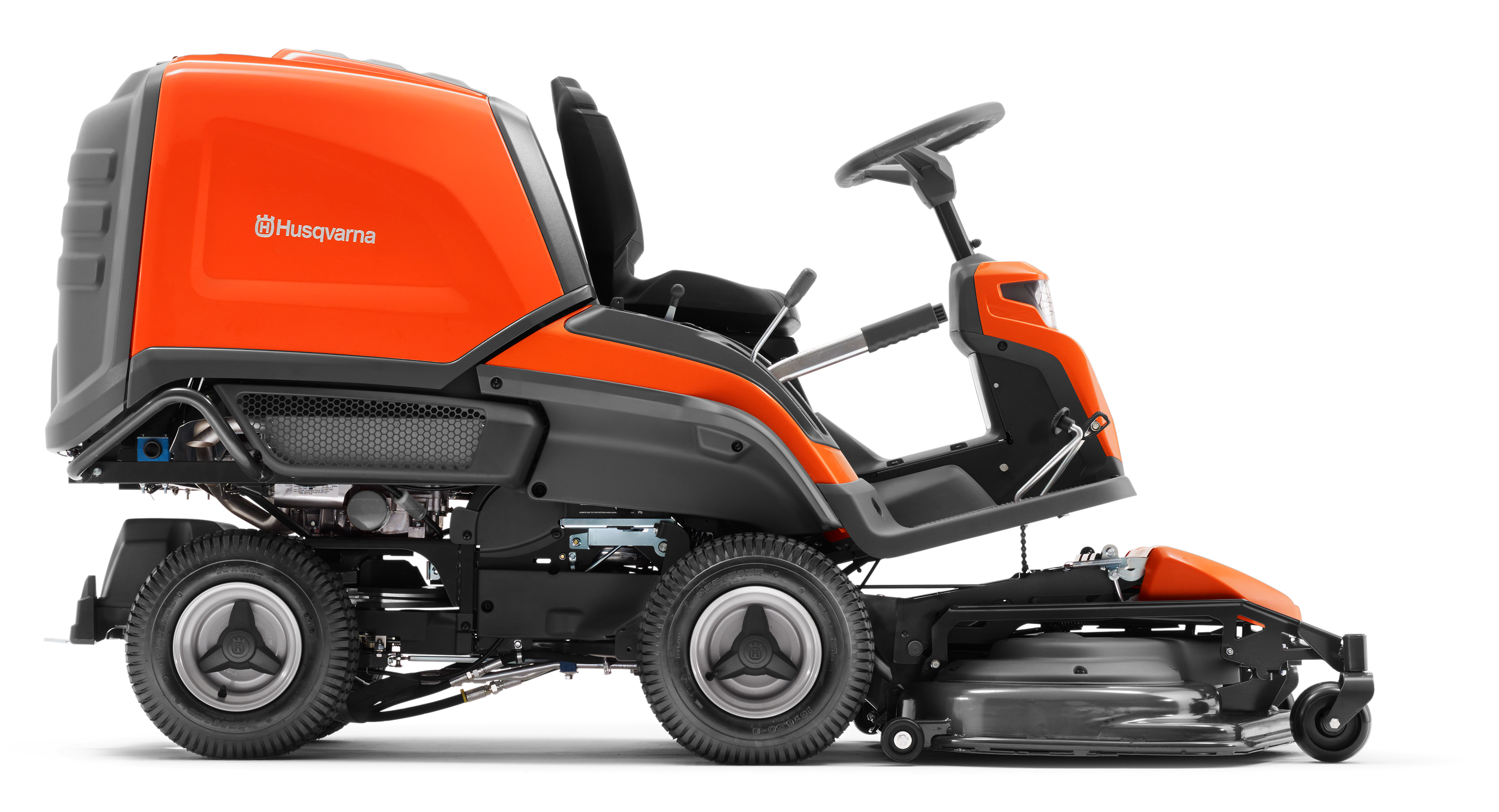

Four large wheels
Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Easy-access controls
Controls are easy accessible for effective and ergonomic handling.

Hour meter with service minder
Indicates when it’s time to service your tractor.

Power-assisted steering
Power-assisted steering makes driving less strenuous and more enjoyable.

Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

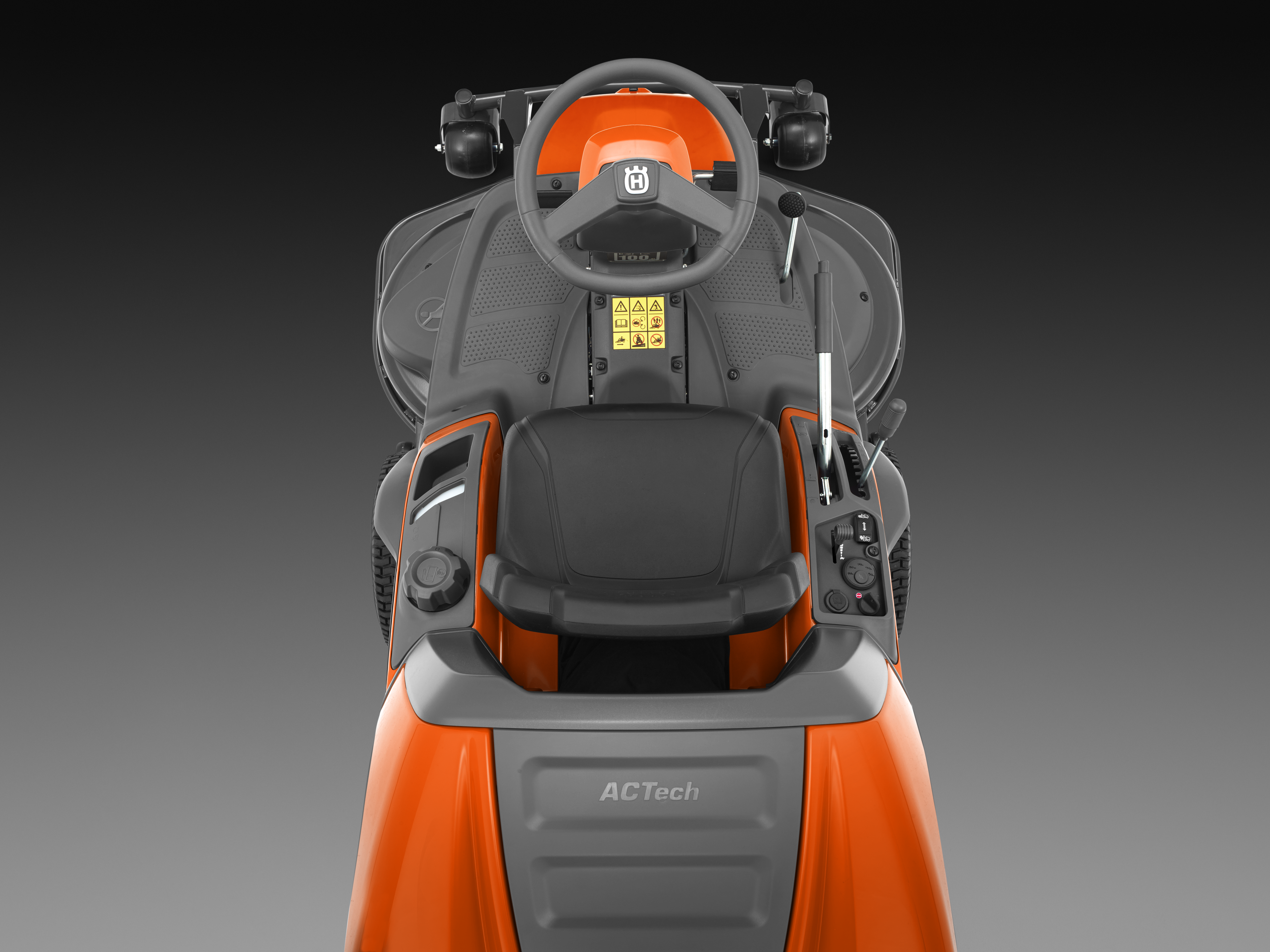

Comfortable driver’s position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider’s low gravity centre contributes to extra good traction as well as a comfortable ‘sit-in’ feeling for the user.

Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Articulated steering
The articulated steering gives excellent manoeuvrability and facilitates driving around obstacles such as trees and bushes.

External fuel cap
Thanks to the external fuel cap, you don’t have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier.

Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.

All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

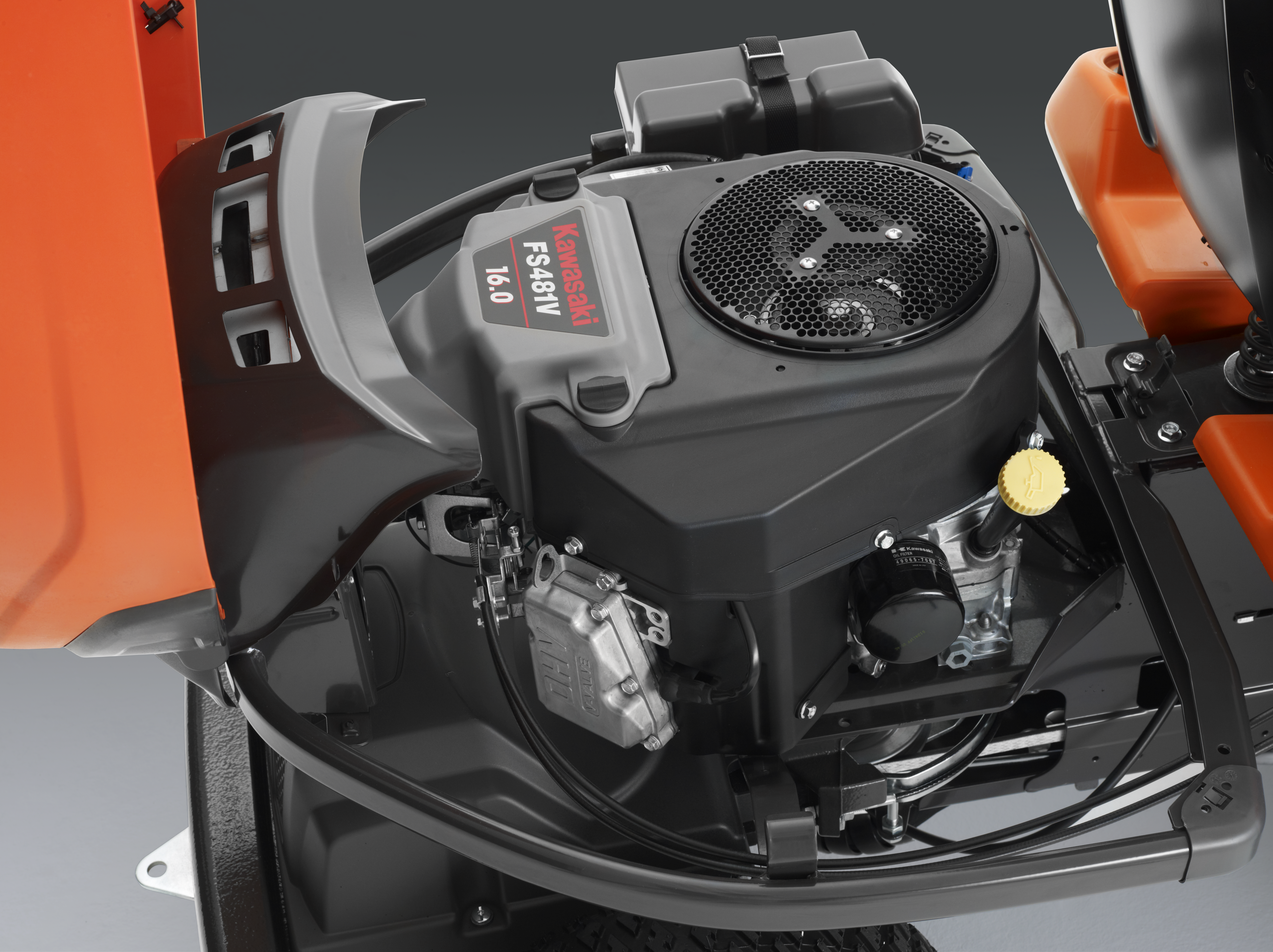

Easy-access service points
The hood can be tilted up into service position for easy access during service and maintenance.

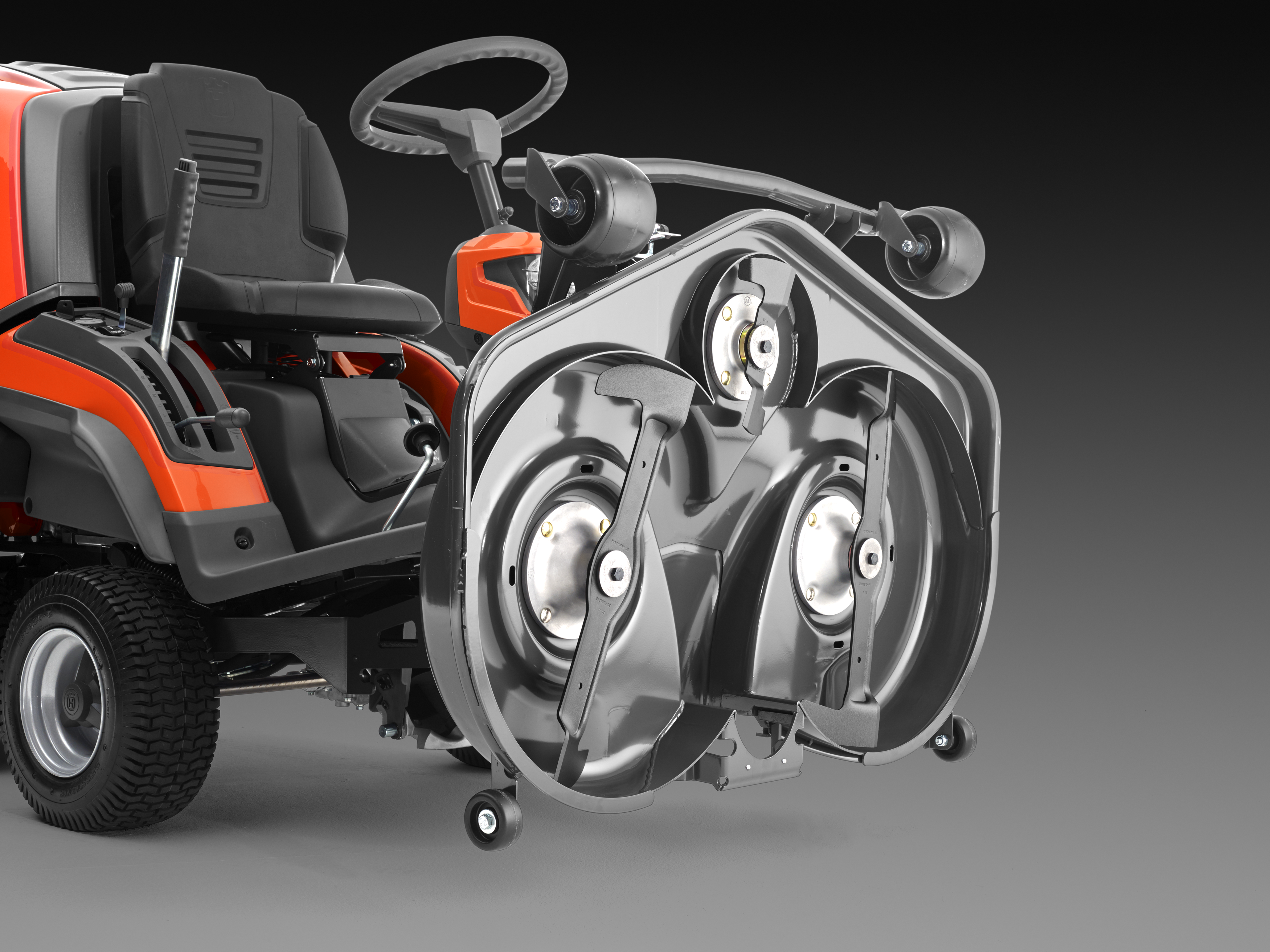

Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.

Empty collector from seat
The integrated collector quickly empties from the driver’s seat for continuous, uninterrupted mowing.

Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level.

LED headlights
Gives over 50% larger lighted area compared to traditional incandescent lights. For safer operation in darker conditions.

12V socket outlet
12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.

Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.

ACTech
The clog-free ACTech collection system with automatic packing allows more grass in the collector for fewer emptyings and increased run time.


Engine
RC 320TsAWD RIDER
Art no: 970 62 12-01

Power/fuel type
Petrol

Net power at preset rpm Energy
12.7 kW

Net power at preset rpm
2,900 rpm

Engine brand
Husqvarna

Motor/engine manufacturer
Husqvarna

Engine name
HV 635AE

Cylinder displacement
635 cm³

Cylinders
2

Engine cooling
Air

Engine lubrication type
Pressure with Oilfilter

Oil filter
Yes

Emission
RC 320TsAWD RIDER
Art no: 970 62 12-01

Exhaust emissions (CO2 EU V)
850 g/kWh

Battery
RC 320TsAWD RIDER
Art no: 970 62 12-01

Battery capacity
5.5 Ah

Battery Chemistry
Lithium Ion

Battery Weight
1.18 kg

Battery brand
BMZ

Cutting deck
RC 320TsAWD RIDER
Art no: 970 62 12-01

Uncut circle
60 cm

Cutting width, min
103 cm

Cutting width, max
112 cm

Cutting height min
25 mm

Cutting height max
75 mm

Blade engagement
Automatic

Collector volume
300 l

Dimensions
RC 320TsAWD RIDER
Art no: 970 62 12-01

Tyre dimensions, front
16×6,5-8

Tyre dimensions, rear
16×6,5-8

Wheelbase
90.3 cm

Ground clearance
90 mm

Base machine, length
208.9 cm

Base machine, width
103 cm

Base machine, height
128.4 cm

Gross weight towed
125 kg

Weight (excl. cutting equipment)
327 kg

Drive system
RC 320TsAWD RIDER
Art no: 970 62 12-01

PTO (Power Take Off)
Belt Drive

Transmission type
Hydrostatic

Drive method
Dual pedal-operation

Speed forward max
8 km/h

Speed reverse max
7 km/h

Equipment
RC 320TsAWD RIDER
Art no: 970 62 12-01

Seat suspension
Yes

Seat type
Premium

Hour meter type
Digital

Seat material
Vinyl

Seat back height
High

Foldable seat
Yes

Steering wheel type
Ergonomic – soft grip

Parking brake, type
Disc

Vibration
RC 320TsAWD RIDER
Art no: 970 62 12-01

Vibration level steering wheel
2.96 m/s²

Vibration level seat
0.4 m/s²

articles
Sound and noise
RC 320TsAWD RIDER
Art no: 970 62 12-01

Sound pressure level at operators ear (LpA)
85 dB(A)

Sound power level, guaranteed (LWA)
100 dB(A)

Sound power level, measured
99 dB(A)
