Husqvarna Rider R 214T

Versatile and powerful Rider for year-round use
Ideal for taking care of larger lawns, this versatile ride-on lawn mower is efficient all year round. Husqvarna R214 T features a twin cylinder engine and can be fitted with a 94 cm or 103 cm combi cutting deck with two cutting options – BioClip mulching for lawn fertilization and rear ejection cutting for higher, tougher grass. The rider is easy to operate, clean and maintain thanks to the cutting deck’s service position. A wide range of Husqvarna accessories is available.

Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.

Hour meter
Hour meter for easy control of operating time and service and maintenance intervals.

Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 94 or 103 cm Combi cutting decks for efficient BioClip and rear ejection cutting.

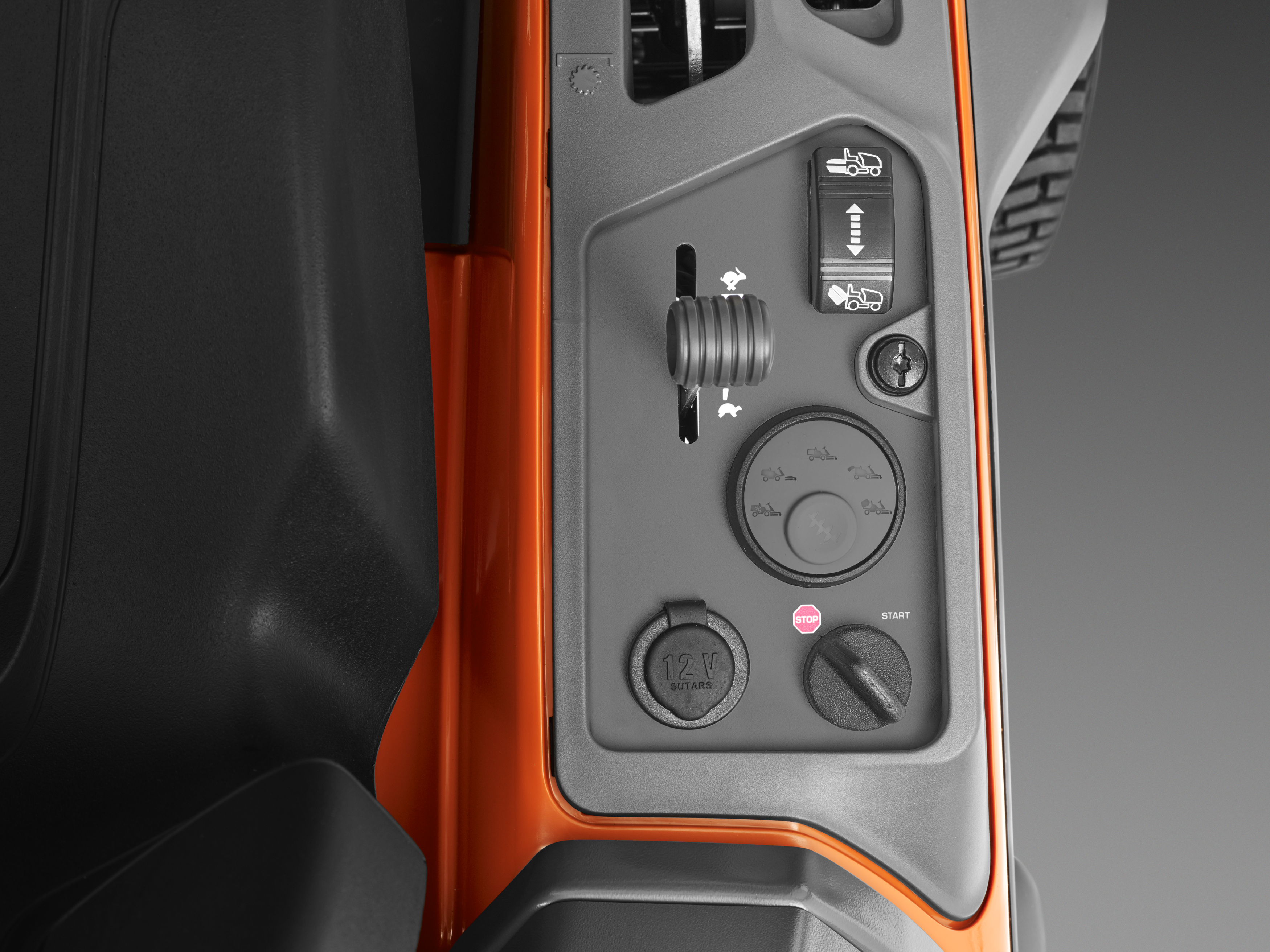

Easy-access controls
Controls are easy accessible for effective and ergonomic handling.

Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.

Storage compartment
The open left storage makes it easy to access your items while mowing.

Bottle holder
Convenient bottle holder for refreshments.

Unique articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.

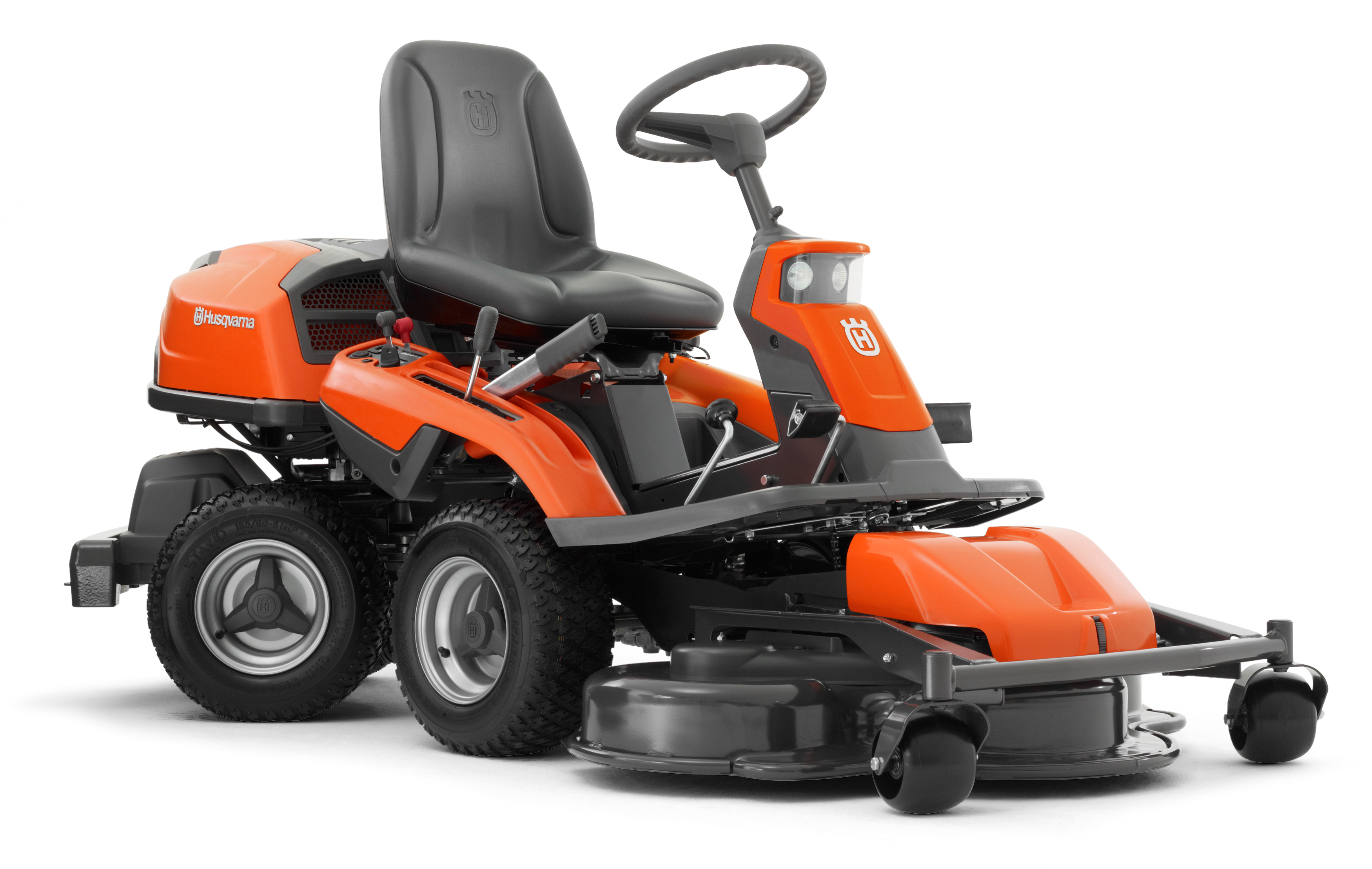

Comfortable driver’s position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider’s low gravity centre contributes to extra good traction as well as a comfortable ‘sit-in’ feeling for the user.

Combi cutting deck with BioClip (mulching)
BioClip (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

Versatile usage
A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.

Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.

Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play.

Engine
R 214T RIDER
Art no: 970 54 22-01

Power/fuel type
Petrol

Net power at preset rpm Energy
12 kW

Net power at preset rpm
2,900 rpm

Engine brand
Husqvarna

Motor/engine manufacturer
Husqvarna

Engine name
HV 586AE

Cylinder displacement
586 cm³

Cylinders
2

Engine cooling
Air

Engine lubrication type
Pressure with Oilfilter

Oil filter
Yes


Emission
R 214T RIDER
Art no: 970 54 22-01

Exhaust emissions (CO2 EU V)
778 g/kWh

Battery
R 214T RIDER
Art no: 970 54 22-01

Battery capacity
24 Ah

Battery Chemistry
Lead-Acid

Battery Weight
7.2 kg

Battery brand
Global

Cutting deck
R 214T RIDER
Art no: 970 54 22-01

Uncut circle
30 cm

Cutting width, min
94 cm

Cutting width, max
103 cm

Cutting height min
25 mm

Cutting height max
75 mm

Blade engagement
Automatic

Dimensions
R 214T RIDER
Art no: 970 54 22-01

Tyre dimensions, front
170/60-8

Tyre dimensions, rear
170/60-8

Wheelbase
89 cm

Ground clearance
120 mm

Base machine, length
194 cm

Base machine, width
88 cm

Base machine, height
113 cm

Gross weight towed
110 kg

Weight (excl. cutting equipment)
207 kg

Drive system
R 214T RIDER
Art no: 970 54 22-01

PTO (Power Take Off)
Belt Drive

Transmission type
Hydrostatic

Drive method
Dual pedal-operation

Speed forward max
9 km/h

Speed reverse max
6 km/h

Equipment
R 214T RIDER
Art no: 970 54 22-01

Seat suspension
Yes

Seat type
Comfort

Hour meter type
Digital

Seat material
PU

Seat back height
Medium

Foldable seat
Yes

Steering wheel type
Ergonomic

Parking brake, type
Disc

Vibration
R 214T RIDER
Art no: 970 54 22-01

Vibration level steering wheel
1.9 m/s²

Vibration level seat
0.29 m/s²

articles
Sound and noise
R 214T RIDER
Art no: 970 54 22-01

Sound pressure level at operators ear (LpA)
85.9 dB(A)

Sound power level, guaranteed (LWA)
99 dB(A)

Sound power level, measured
98.1 dB(A)
