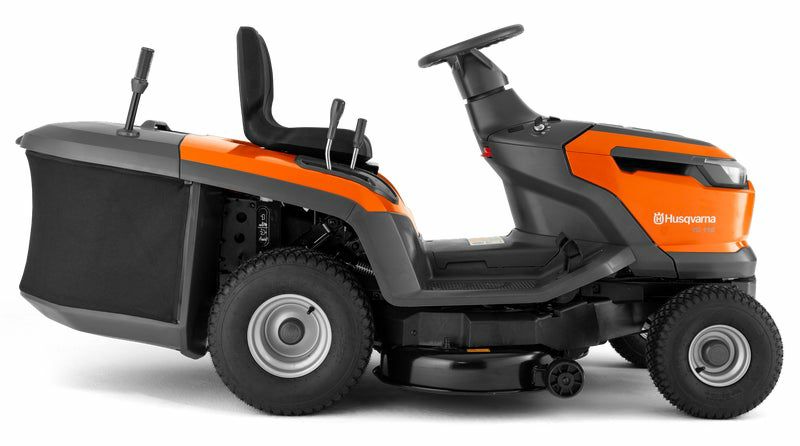

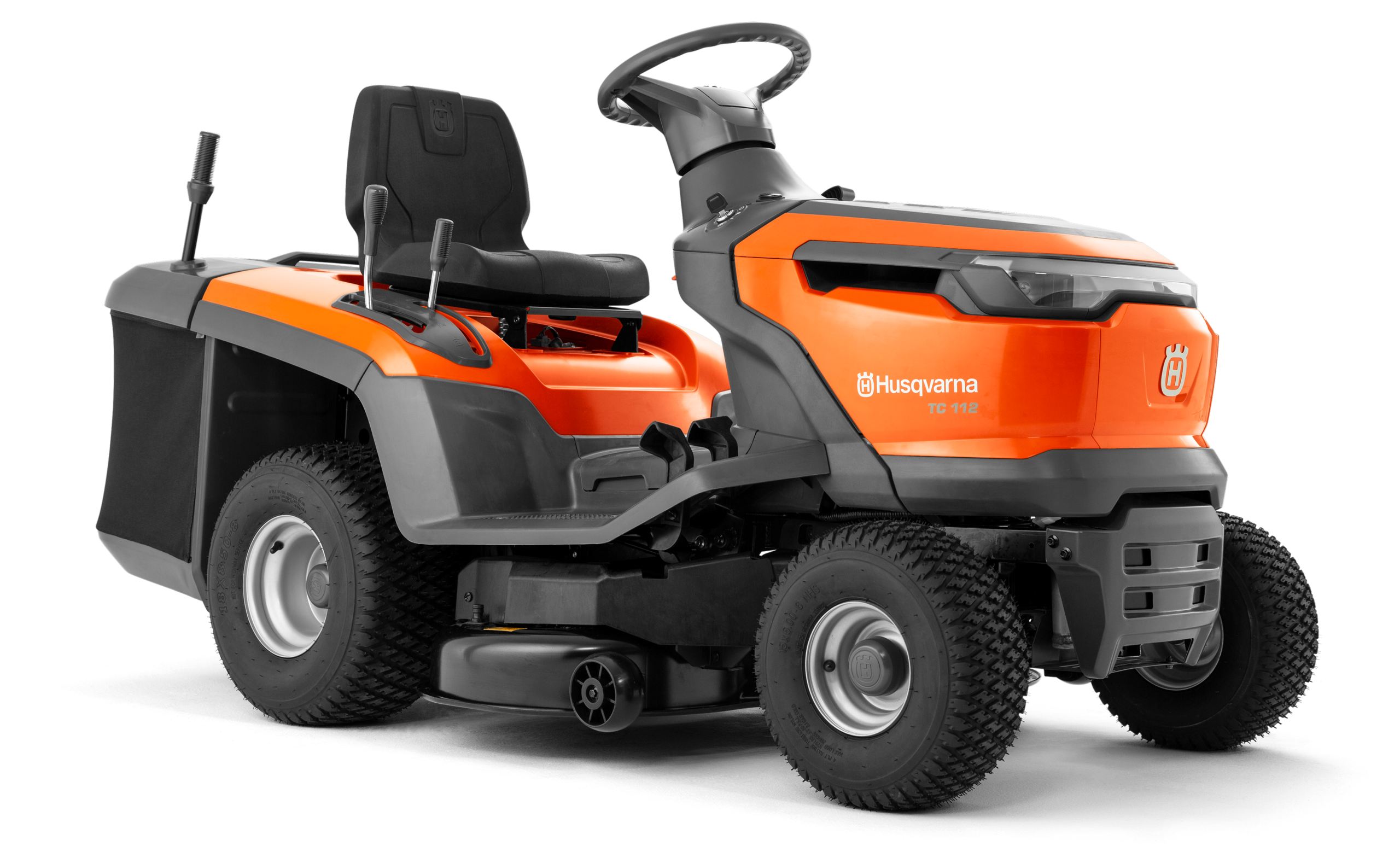

HUSQVARNA TC112 TRACTOR MOWER

Compact design
Compact design for effortless navigation in narrow passages and easy storage while not in use.

Pedal-operated hydrostatic transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.

Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation

Anti scalp wheels
The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.

Lever-Mounted cutting height adjustment
Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier.

Ergonomic controls
Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height.

Adjustable driver seat
Tool-free adjustment of seat position to quickly set a comfortable driving position.

Towing hook included
Additional functionality thanks to the included towing hook which enables the use of many accessories.

Dual headlights
Dual headlights at the front for clear visibility when driving in dark conditions.

Turn key start
Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

ROS in start key
ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.

Hour meter
Hour meter for easy control of operating time and service and maintenance intervals.

Electric engagement of cutting blades
Easy engagement of cutting blades; simply pull the switch on the control panel.

Fuel level window
Fuel level window makes it easy to check the fuel level.

Side discharge cutting deck
Equipped with a 95cm side discharge cutting deck.

Control levers on one side
Control levers on only one side make it easy to get in and out of the seat on the other side.

Cutting deck

Cutting width
95 cm

Cutting height max
100 mm

Cutting height min
25 mm

Nose roller
No

Anti-scalp wheels
2

Drive system

Drive method
Dual pedal-operation

Speed forward max
9 km/h

Speed reverse max
5 km/h

Engine

Cylinder displacement
413 cm3

Engine brand
Husqvarna

Motor/engine manufacturer
Husqvarna

Engine name
HS 413AE

Net power at preset rpm Energy
1
8 kW

Net power at preset rpm
2,800 rpm

Cylinders
1

Generator
12

Power/fuel type
Petrol

Oil filter
No

Equipment

Seat material
PU

Seat type
Standard

Front-End Protection
Available as accessory

Hour meter type
Digital

Seat back height
Medium

Steering wheel type
Ergonomic

Collector
Included

Transmission

Transmission type
Hydrostatic

Transmission Brand
Hydro-Gear

Sound and noise

Sound power level, guaranteed (LWA)
97.2 dB(A)

Sound pressure level at operators ear (LpA)
83 dB(A)

Emission

Exhaust emissions (CO2 EU V)
2
773 g/kWh

Dimensions

Base machine, height
110 cm

Base machine, length
166.5 cm

Tyre dimensions, front
15×6-6

Tyre dimensions, rear
18×8.5-8
