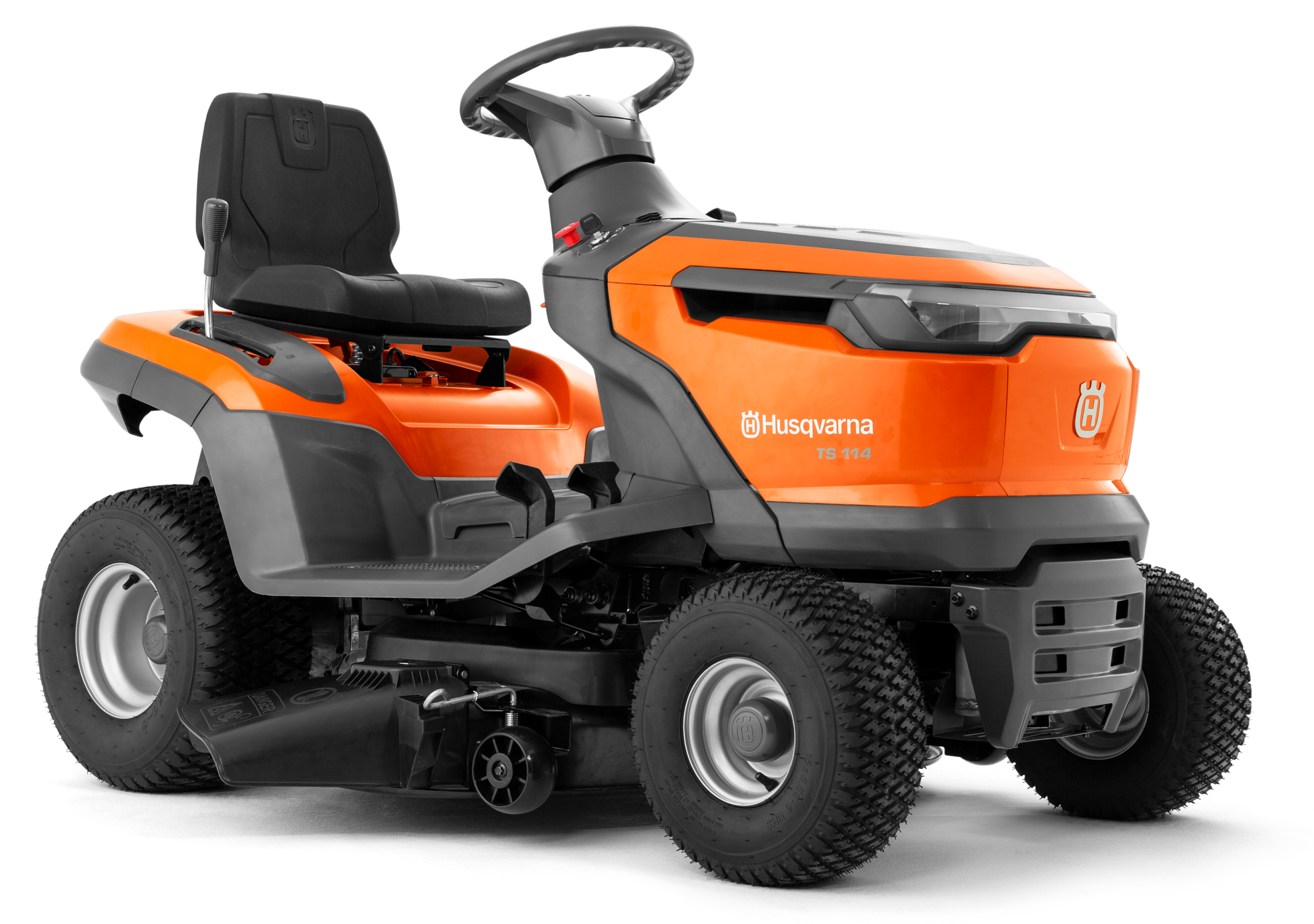

Husqvarna TS 114 Tractor Mower

Name: Husqvarna TS 114 Tractor Mower
SKU: 970 62 25-01
Availability: OutOfStock

SKU: 970 62 25-01 Category: TRACTOR MOWERS

£2,463.12 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

Description
Additional information

Purpose-built garden tractor for large domestic lawns. The TS 114 combines a 95 cm side-discharge cutting deck with a compact chassis and ergonomic controls so you can mow wide swathes while still negotiating narrow passages. Features such as pedal-operated hydrostatic transmission, turn-key start and a spring-assisted deck make it straightforward to operate and maintain.

Straightforward drive and control

Pedal-operated hydrostatic transmission with separate forward and reverse pedals gives intuitive speed and direction control. Turn-key start and electric blade engagement make daily use simple.

Comfortable, ergonomic operation

Adjustable, PU-upholstered seat, ergonomically placed levers and side-by-side pedals reduce strain during long sessions. Control levers are grouped on one side for easy entry and exit.

Consistent cutting performance

95 cm side-discharge deck with anti-scalp wheels and spring-assisted height adjustment delivers an even finish across undulating lawns while protecting the turf.

Key specification

Article ID	970622501
Cutting deck width	95 cm
Transmission	Hydrostatic

Full specification

Cylinder displacement (metric)	452 cm³
Cutting width (metric)	95 cm
Exhaust emissions (CO₂ EU V)	754 g/kWh
Sound pressure level at operators ear (LpA)	83.4 dB(A)
Sound power level, guaranteed (LWA)	97.6 dB(A)
Packaging length	1700 mm
Packaging width	1135 mm
Packaging height	850 mm
Power source	Petrol
Cylinders	1
Net power at preset rpm Energy	9.0 kW
Engine brand	Husqvarna
Net power at preset rpm	2800 rpm
Engine name	HS 452AE
Transmission type	Hydrostatic
Motor/engine manufacturer	Husqvarna
Base machine, length (metric)	166.5 cm
Base machine, height (metric)	110 cm
Oil filter	Yes
Drive method	Dual pedal-operation
Speed reverse max (metric)	5 km/h
Hour meter type	Digital
Seat material	PU
Seat back height	Medium
Steering wheel type	Ergonomic
Tyre dimensions, front	15×6-6
Tyre dimensions, rear	18×8.5-8
Generator	12 A
Nose roller	No
Anti-scalp wheels	2
Front-End Protection	Available as accessory
Collector	Available as accessory
Transmission Brand	Hydro-Gear
Base machine, width (chute up) (metric)	112.7 cm
Base machine, width (chute down) (metric)	121 cm

Key features

Compact design

Compact design for effortless navigation in narrow passages and easy storage while not in use.

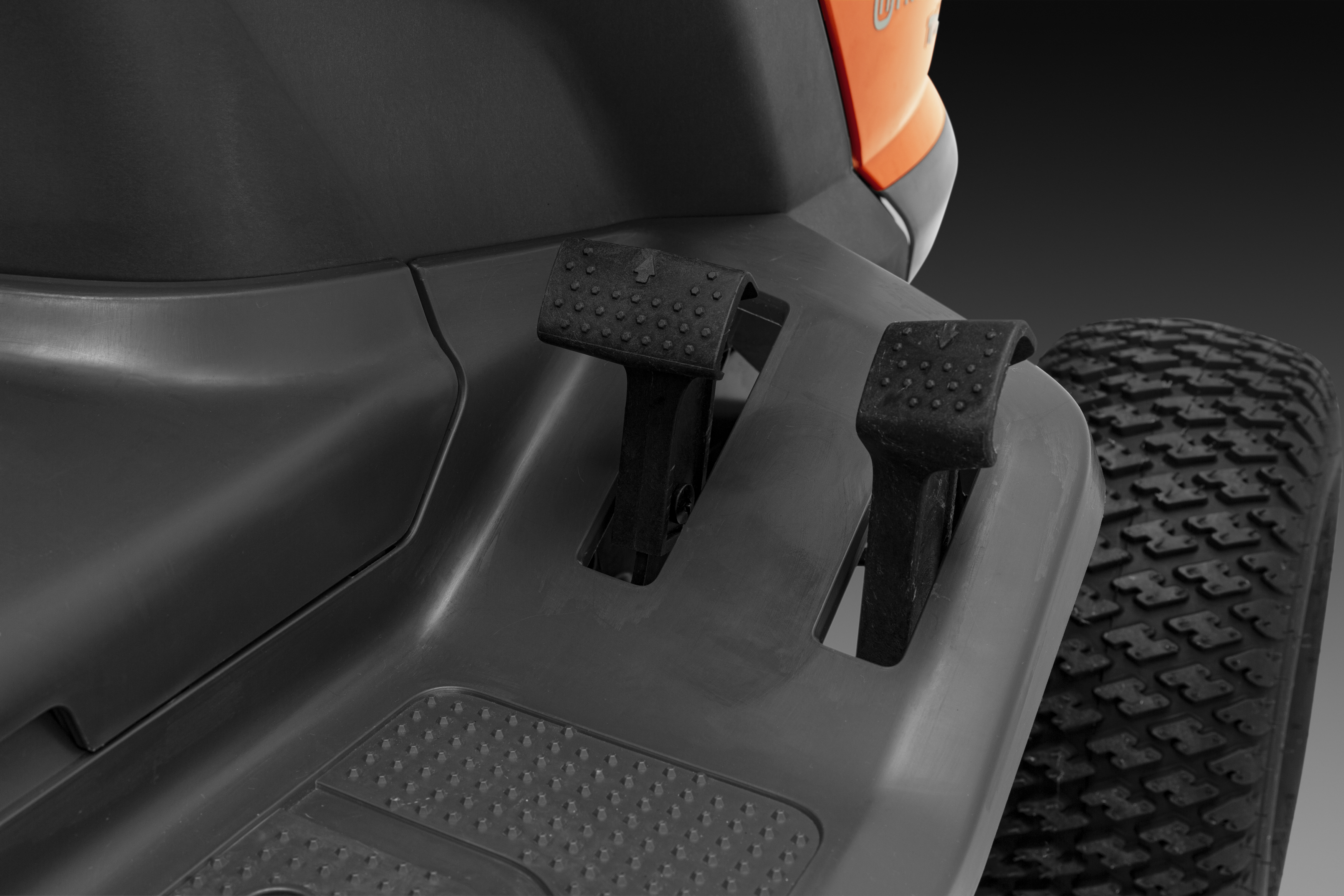

Pedal-operated hydrostatic transmission

Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.

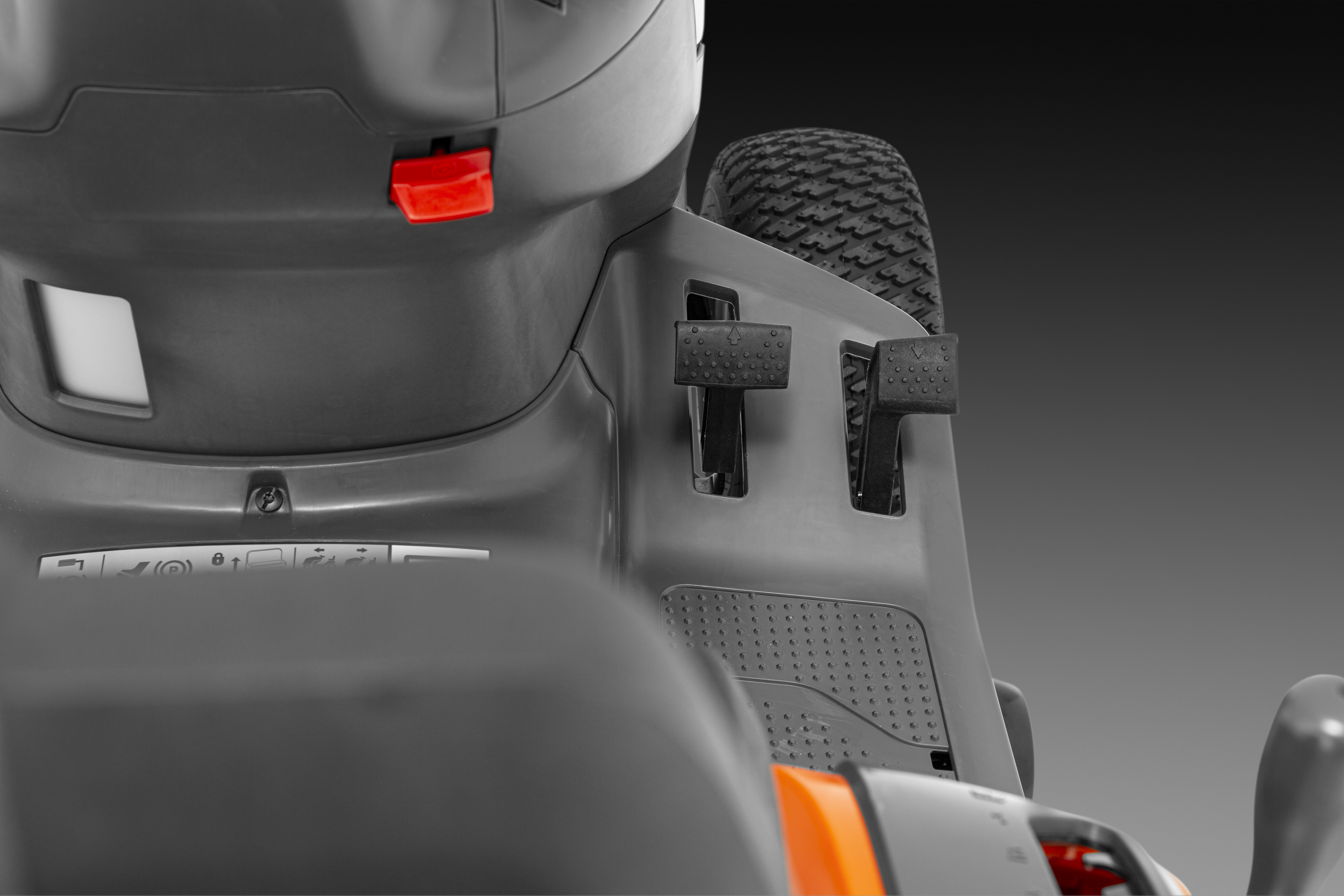

Dual pedal drive

Dual pedal drive for better drive control and easy, intuitive operation

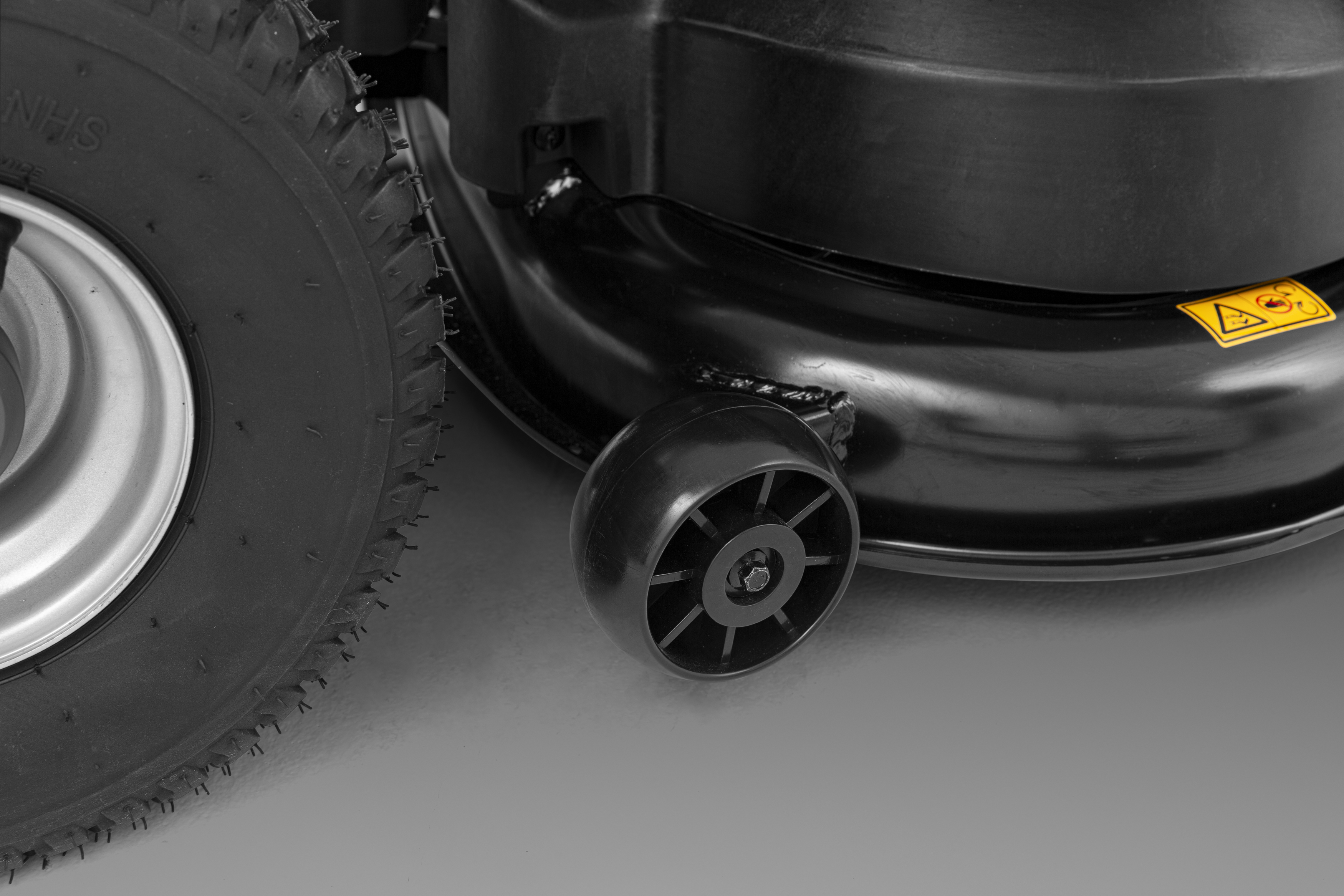

Anti scalp wheels

The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.

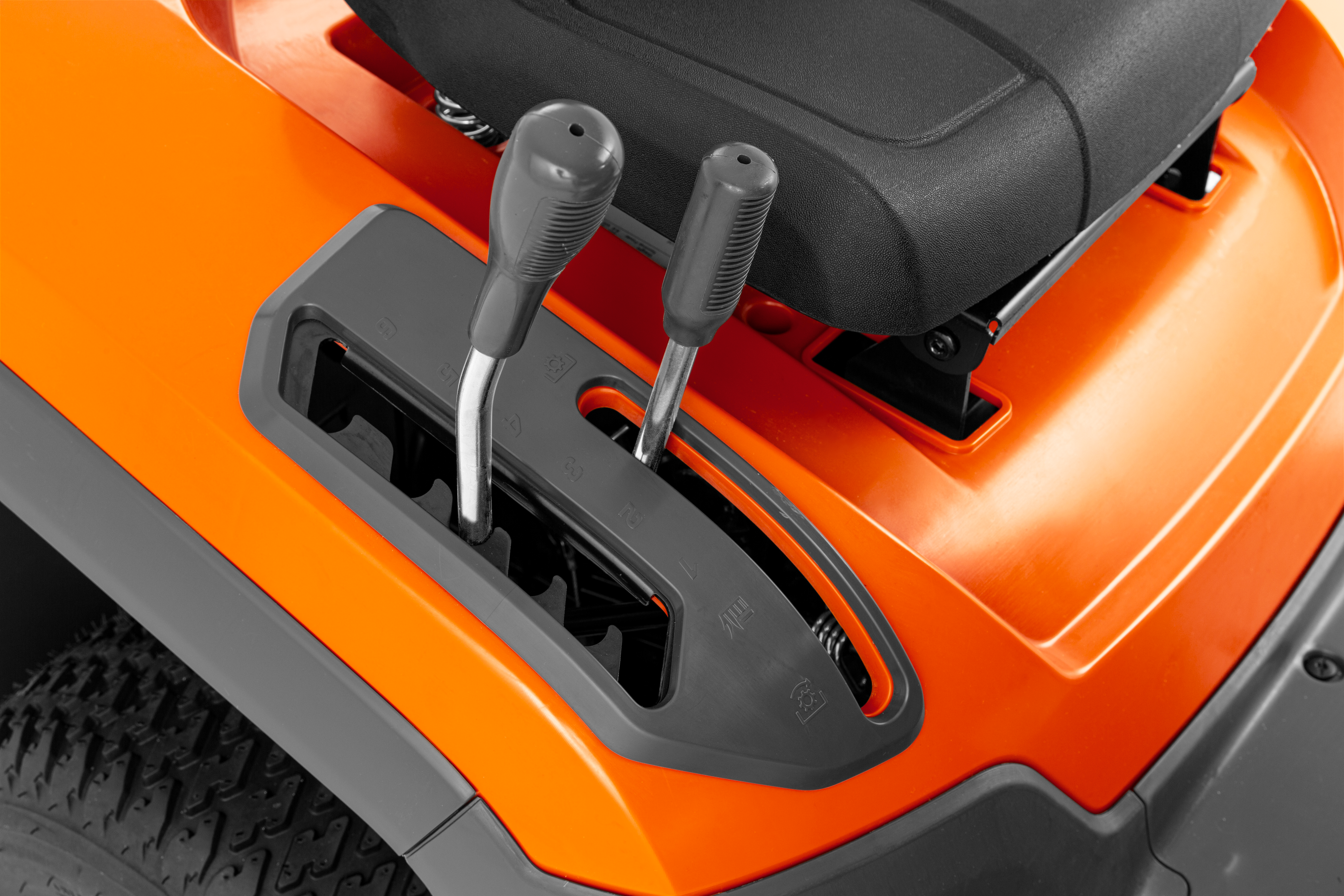

Lever-Mounted cutting height adjustment

Easily accessible cutting height adjustment for improved ergonomics.The spring-assisted cutting height adjustment makes setting the desired height even easier.

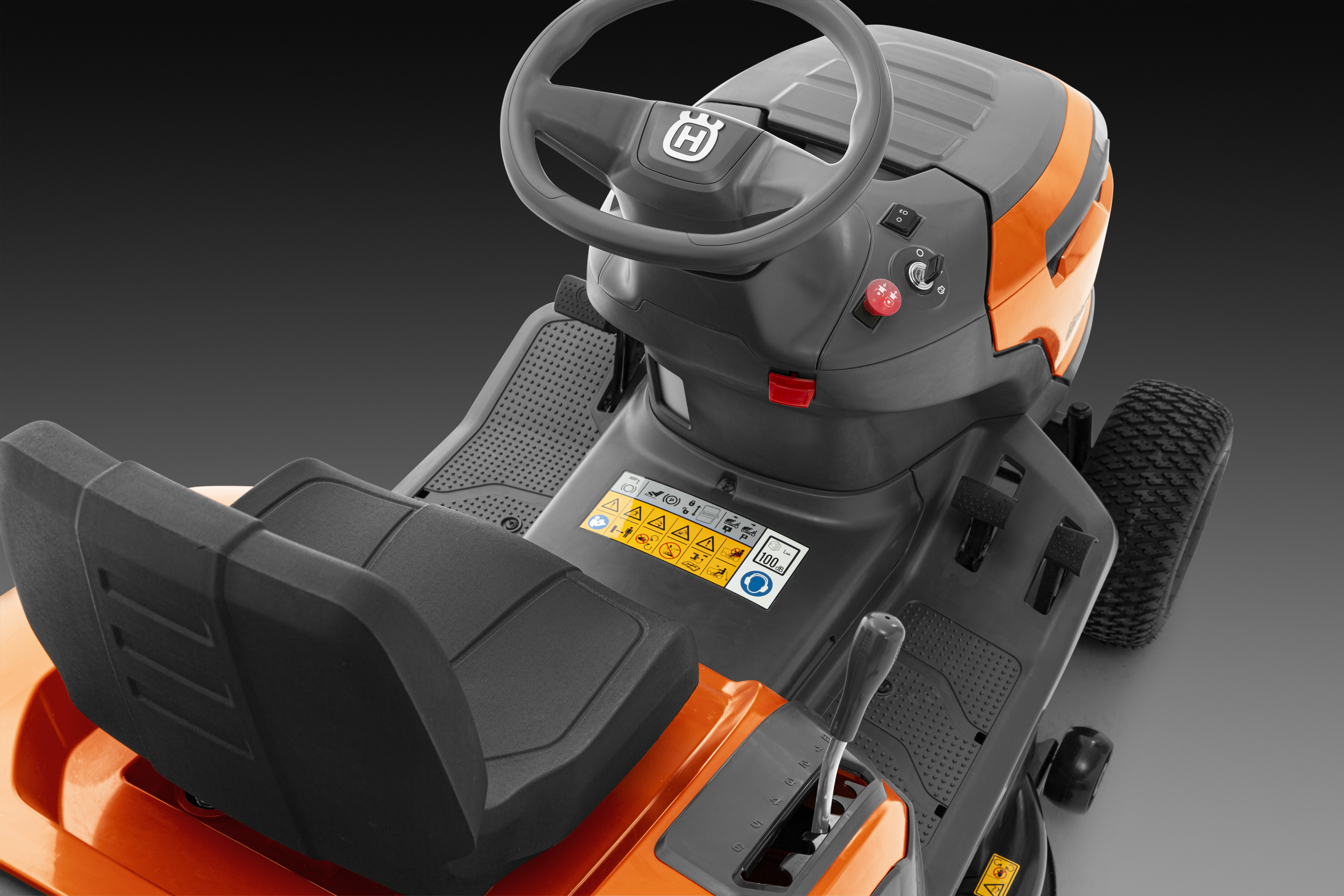

Ergonomic controls

Comfortable driving position and operation thanks to the adjustable seat and easy-access controls. Spring-assisted cutting height adjustment for easy setting of the desired height.

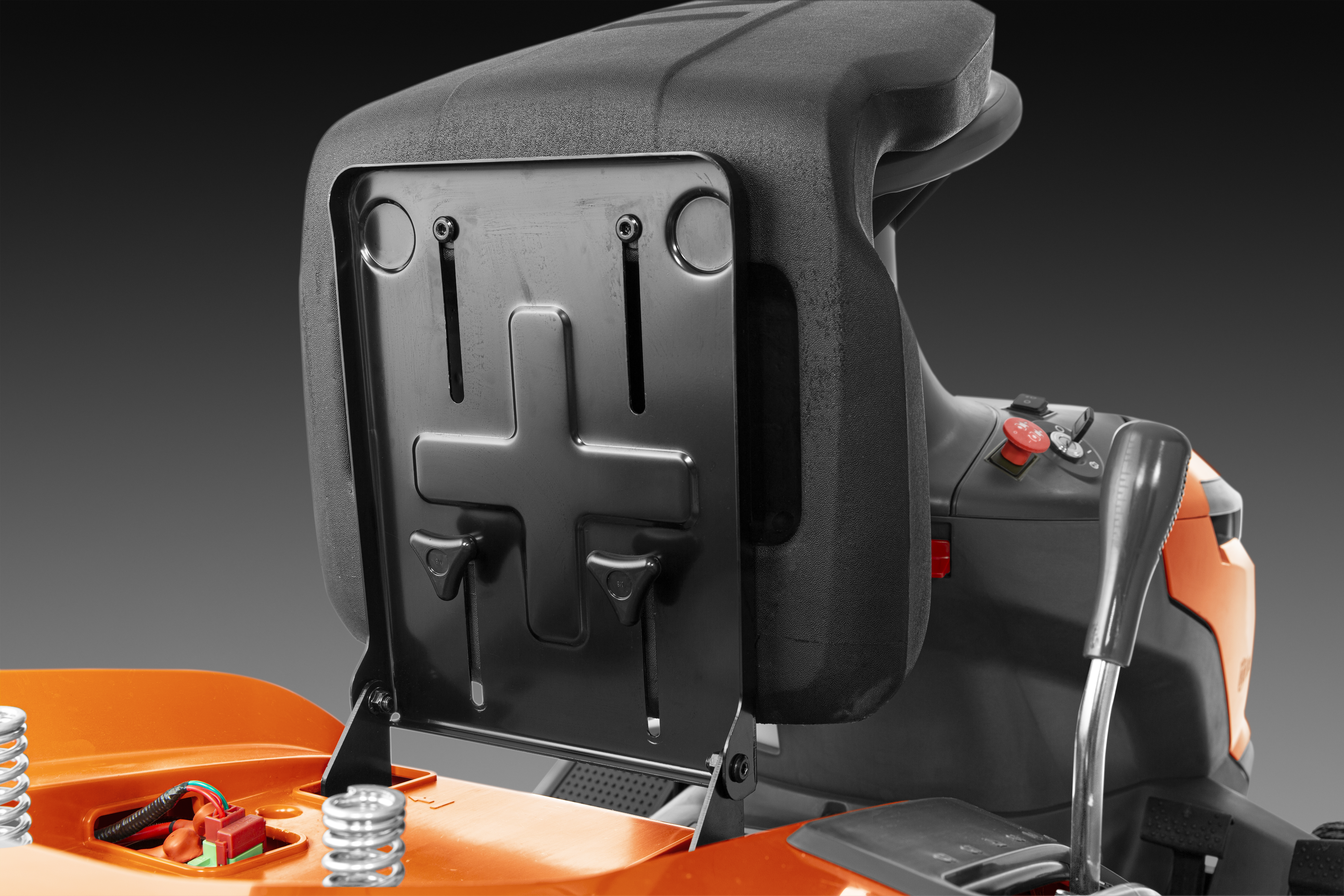

Adjustable driver seat

Tool-free adjustment of seat position to quickly set a comfortable driving position.

Towing hook included

Additional functionality thanks to the included towing hook which enables the use of many accessories.

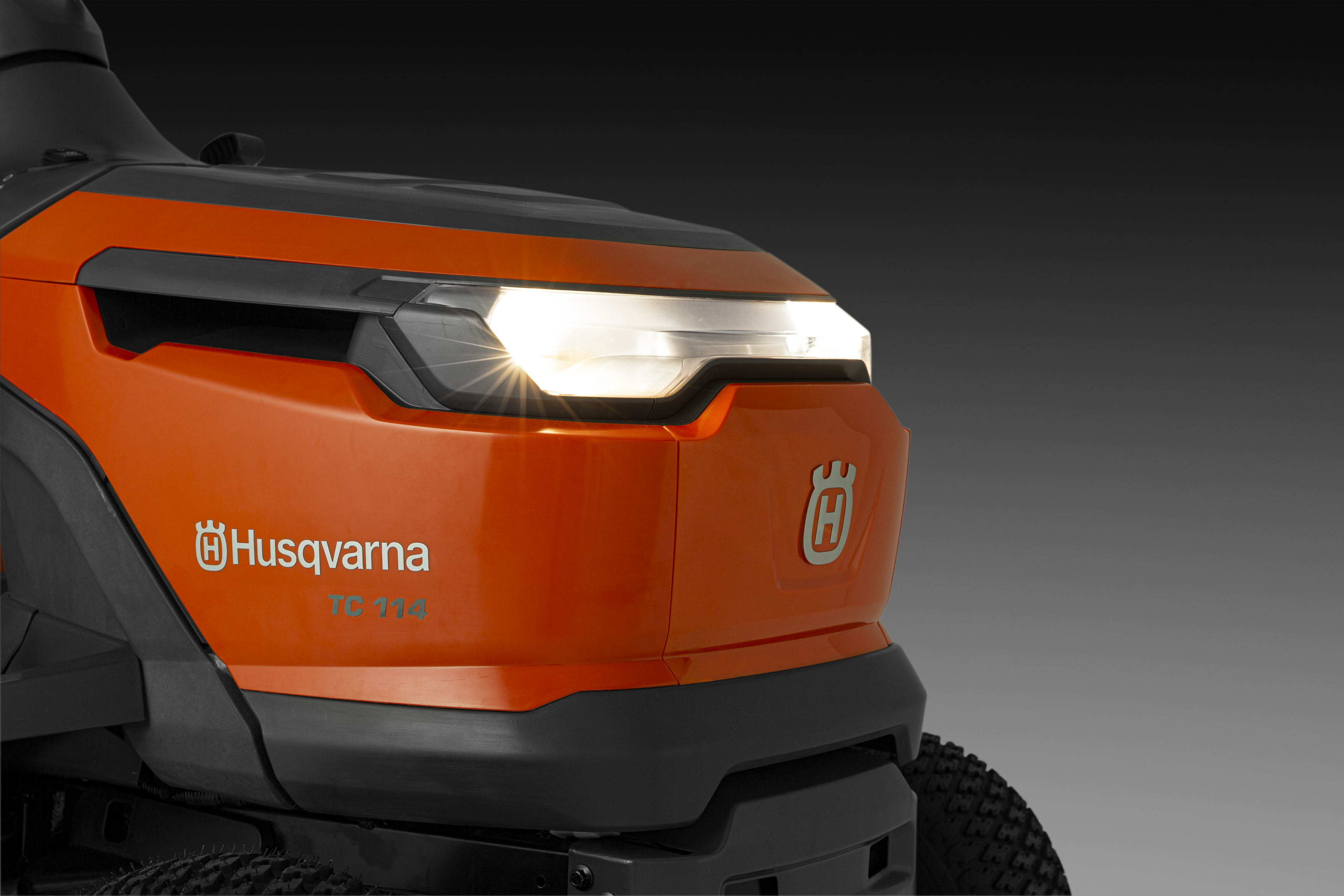

Dual headlights

Dual headlights at the front for clear visibility when driving in dark conditions.

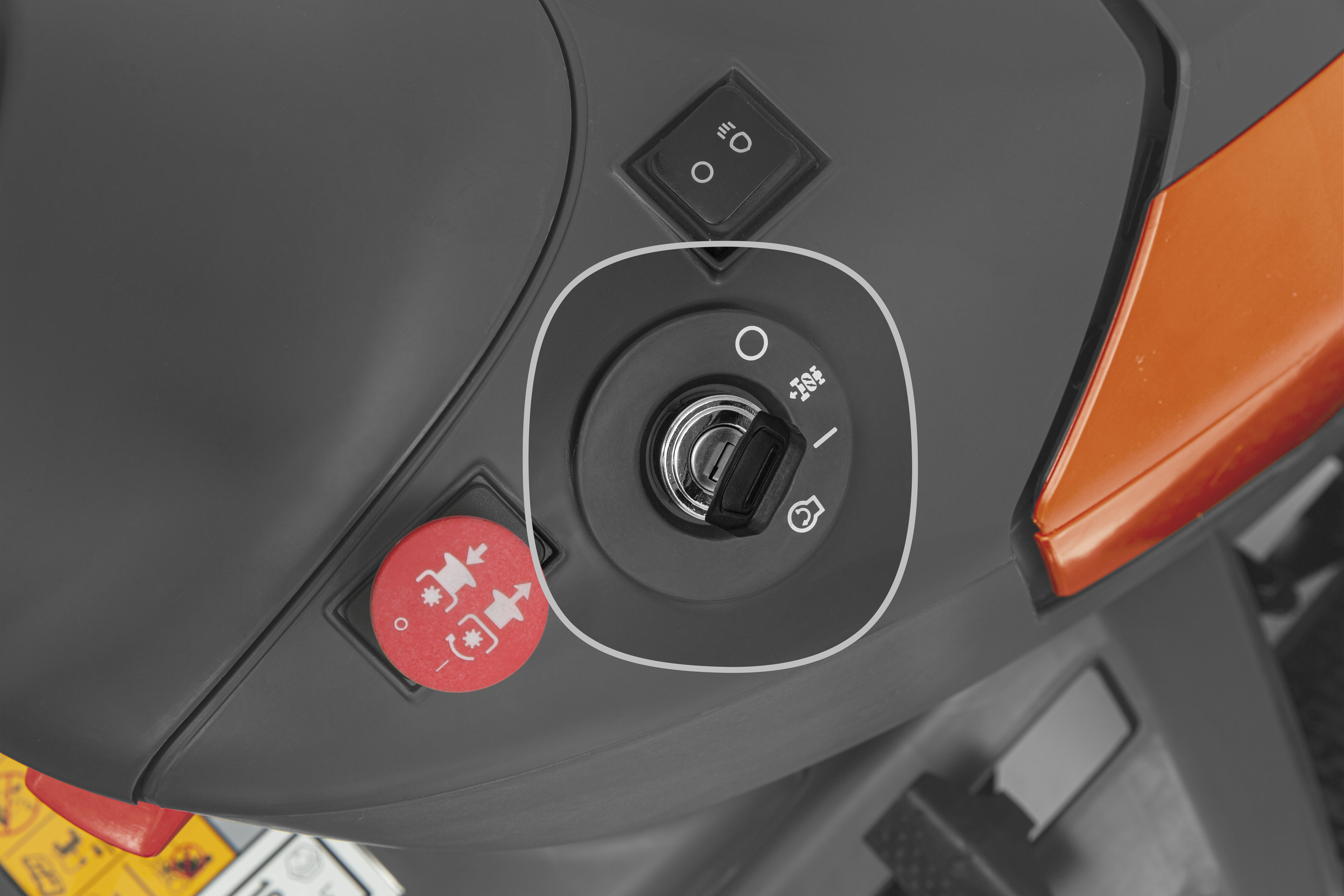

Turn key start

Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

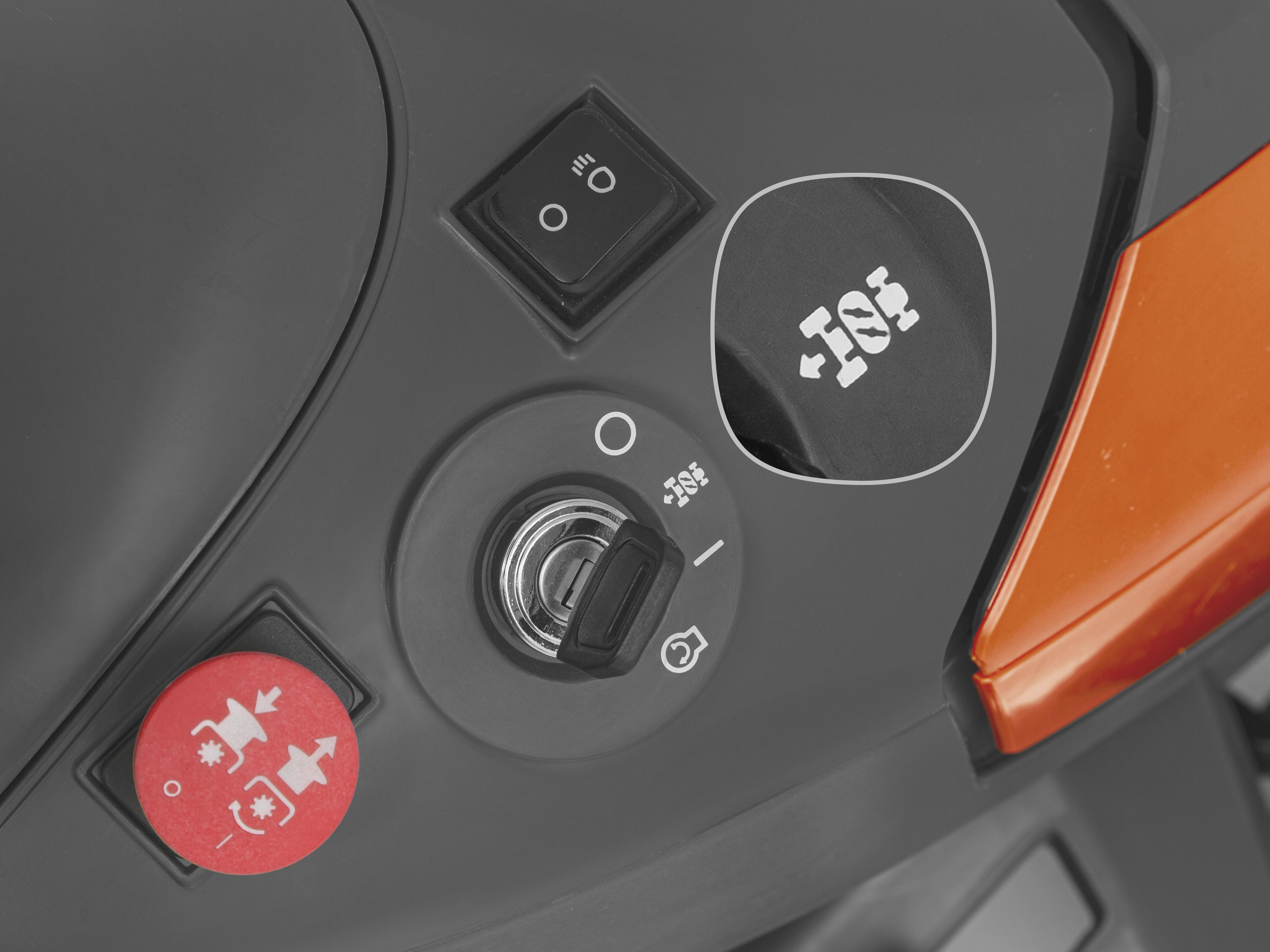

ROS in start key

ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.

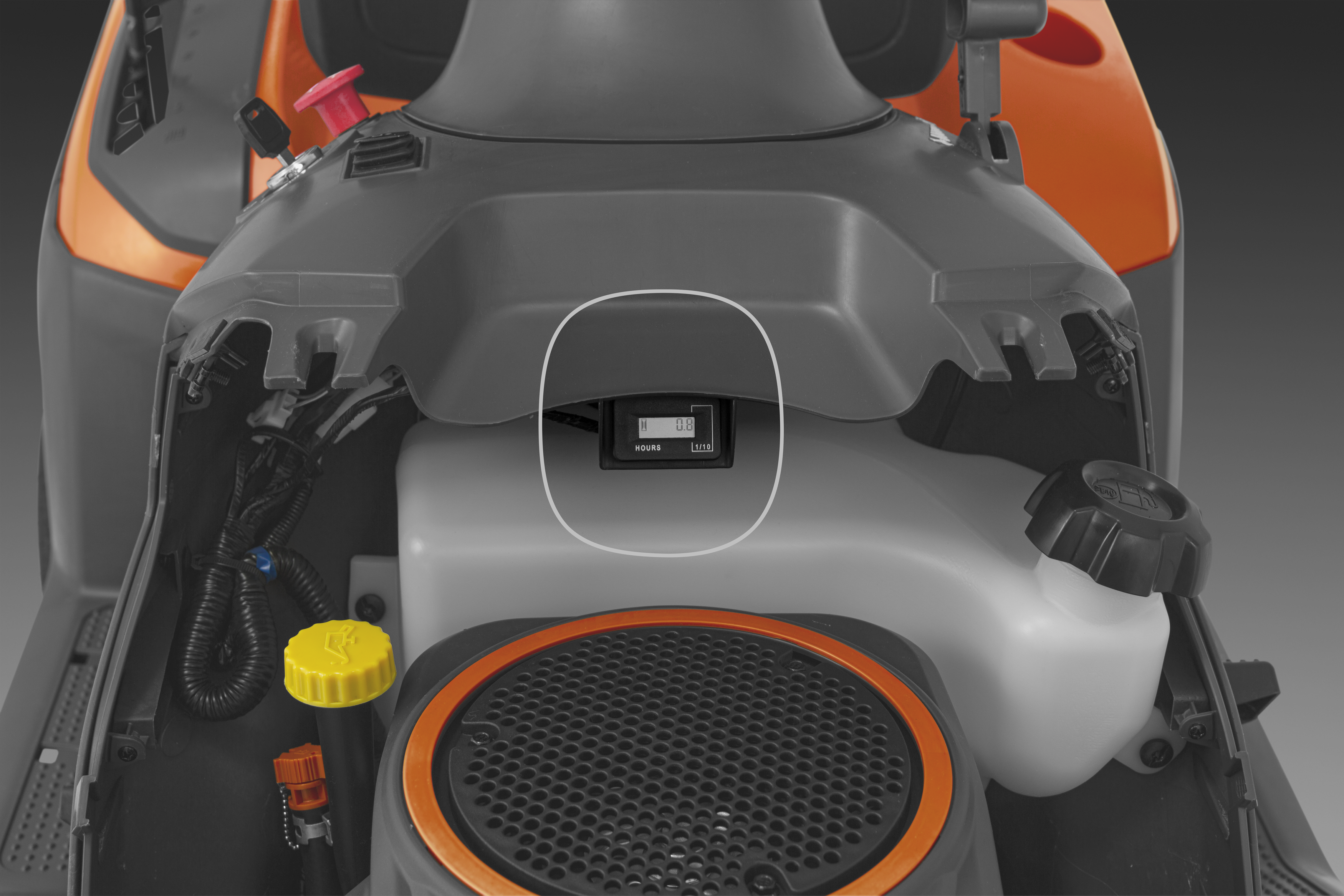

Hour meter

Hour meter for easy control of operating time and service and maintenance intervals.

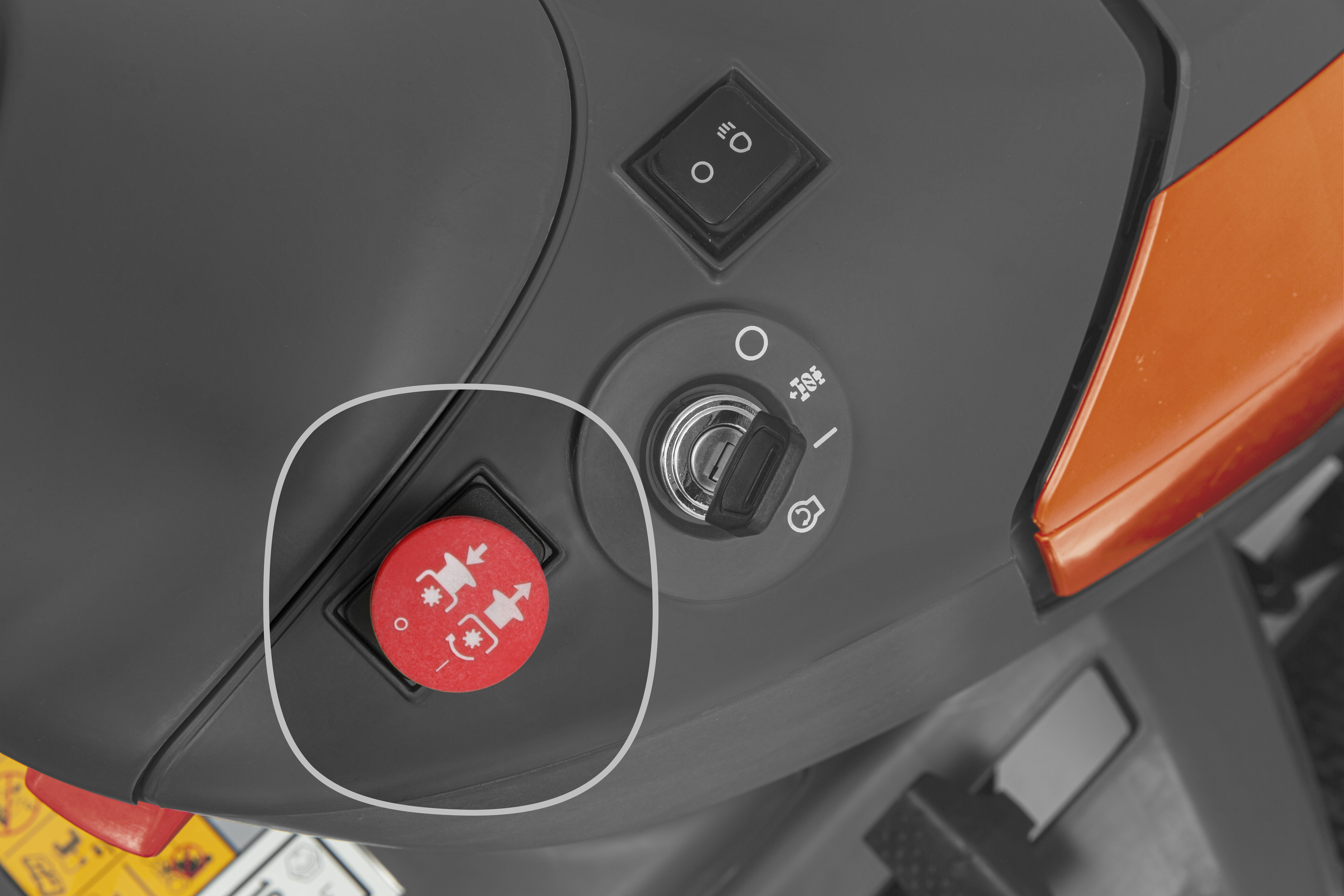

Electric engagement of cutting blades

Easy engagement of cutting blades; simply pull the switch on the control panel.

Fuel level window

Fuel level window makes it easy to check the fuel level.

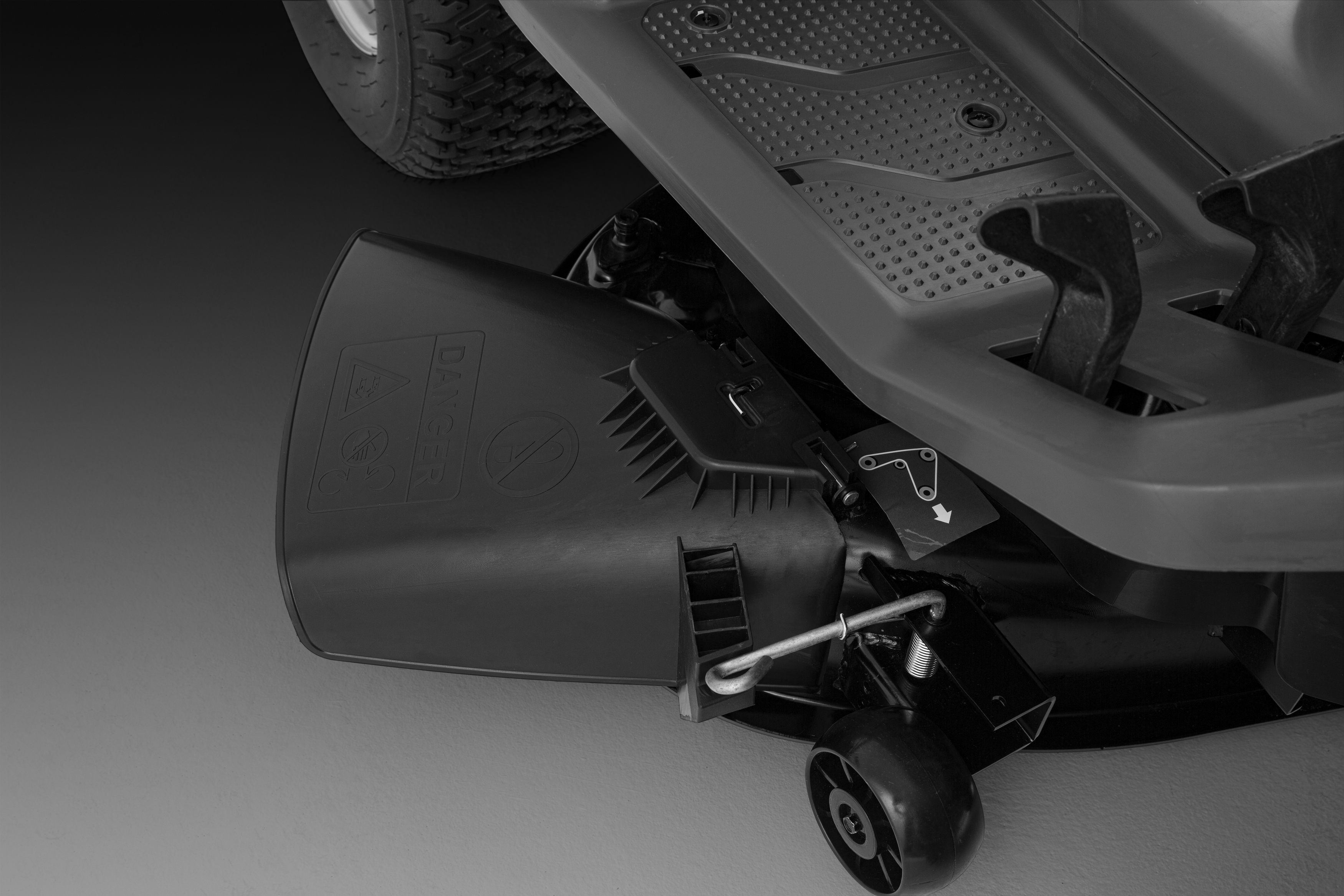

Side discharge cutting deck

Equipped with a 95cm side discharge cutting deck.

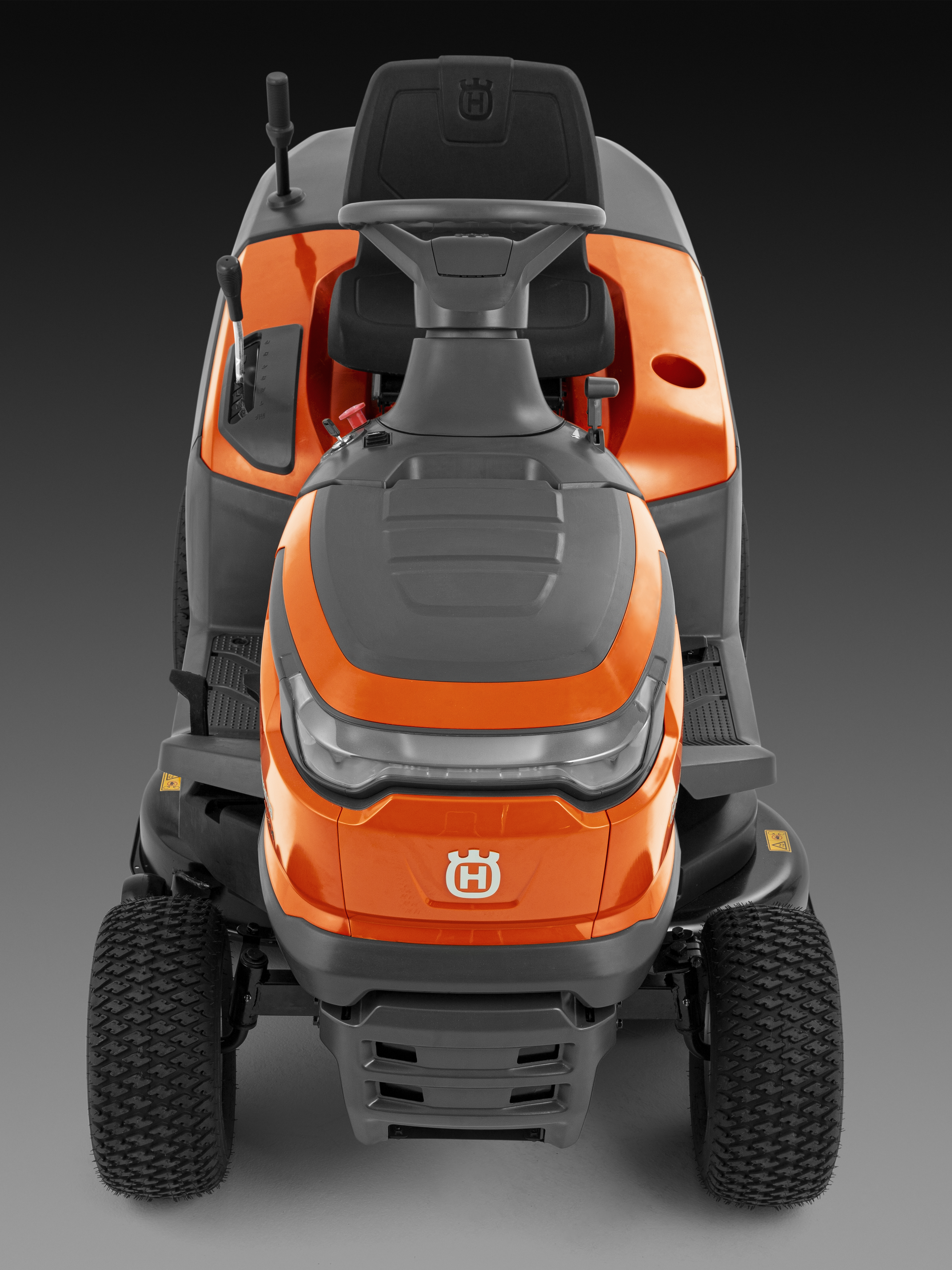

Control levers on one side

Control levers on only one side make it easy to get in and out of the seat on the other side.

Features

FAQs

Will this fit my machine?

Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.

Do I need any extra brackets or fitting kits?

Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.

Can you fit it for me?

Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).

What size of lawn is the TS 114 suitable for?

The TS 114 is aimed at large domestic lawns. Its 95 cm cutting width lets you cover more ground per pass while the compact design helps when you need to navigate gates and narrow passages.

How do I change cutting height and engage the blades?

Cutting height is adjusted using the lever-mounted, spring-assisted system for easier setting. Blades are engaged electrically from the control panel—no manual PTO engagement required.

What should I know about maintenance and service?

Use the digital hour meter to monitor operating hours and schedule service. The machine has an oil filter fitted; consult the operator manual for recommended service intervals and fuel type (petrol). Regular checks of tyre pressures, blade condition and the fuel level window will keep the tractor reliable.

Additional information

UPC\|EAN	970622501
