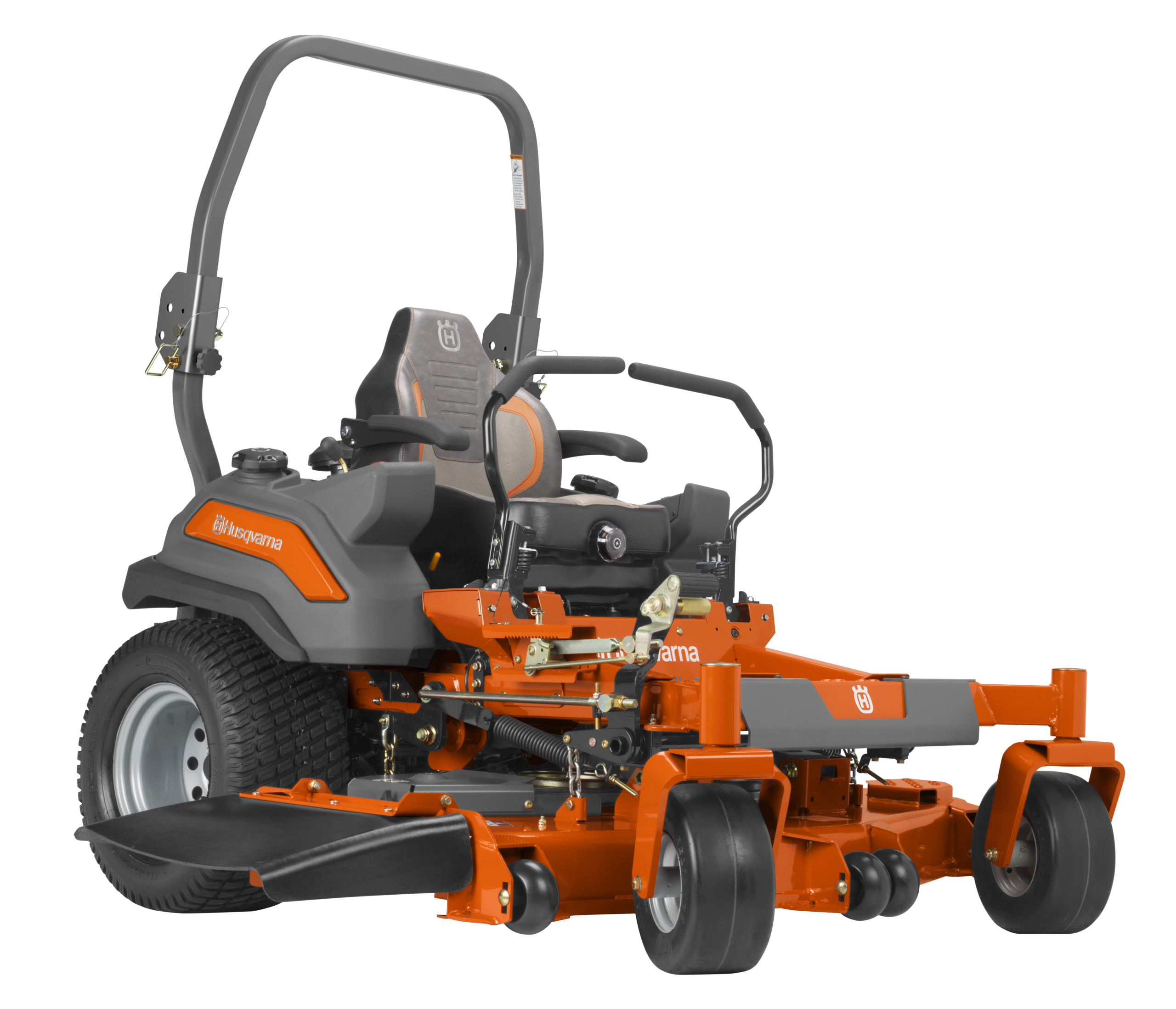

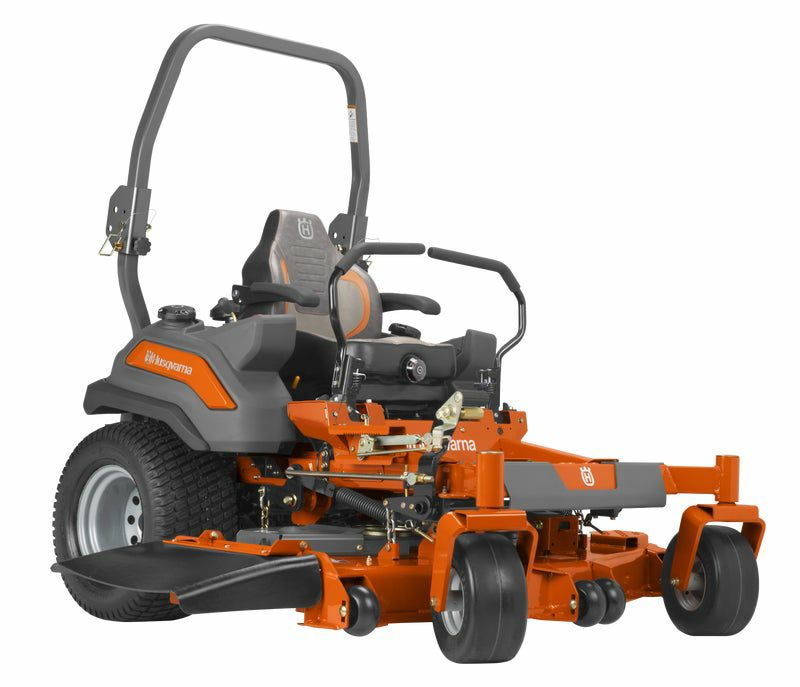

Husqvarna Z560X Zero Turn Mower
£14,874.15 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk
The Husqvarna Z560X is a commercial zero‑turn mower engineered for productivity, durability and cut quality. It pairs a fabric‑ated 7‑gauge 152 cm cutting deck and Kawasaki engine with Hydro‑Gear ZT5400 transmissions, a premium suspension seat and foldable ROPS. As an installer I recommend it where high ground speeds, traction and straightforward serviceability are required for large mowing contracts.
Built for commercial durability
Heavy construction throughout — a 7‑gauge fabricated steel deck, 10″ cast iron spindles with tapered roller bearings and a heavy‑duty rubber discharge chute — reduces wear and improves resistance to impact in daily commercial use.
High productivity
A 152 cm cutting width, Hydro‑Gear ZT5400 commercial transmissions and a top forward speed of 16.0 km/h let you cover ground quickly while maintaining a quality finish.
Operator comfort reduces fatigue
Premium, full‑suspension seat with dial‑by‑weight adjustment and elastomeric vibration control (EVC) keeps the operator comfortable for long shifts, improving consistency and productivity.
Key specification
| Article ID | 970640901 |
| Cutting deck width | 152 cm |
Full specification
| Cylinder displacement (metric) | 852 cm³ |
| Fuel tank volume (metric) | 45.4 l |
| Cutting width (metric) | 152 cm |
| Connectivity | Not applicable |
| Exhaust emissions (CO₂ EU V) | 873 g/kWh |
| Power source | Petrol |
| Weight (complete product w/o side packed articles) (metric) | 594 kg |
| Cutting height max (metric) | 127 mm |
| Cutting height min (metric) | 25.4 mm |
| Engine Power (As rated by the engine manufacturer) (metric) | 17.9 kW |
| Cylinders | 2 |
| Net power at preset rpm Energy | 17.9 kW |
| Engine brand | Kawasaki |
| Net power at preset rpm | 3000 rpm |
| Motor/engine manufacturer | Kawasaki |
| Base machine, length (metric) | 206 cm |
| Base machine, width (metric) | 136 cm |
| Base machine, height (metric) | 117 cm |
| Engine cooling | Air |
| Engine lubrication type | Full pressure with oil filter |
| Speed forward max (metric) | 16.0 km/h |
| Blade engagement | Electric clutch |
| Seat type | Premium, suspension |
| Seat back height | Extra high 21″ |
| Cutting deck type | 7-gauge fabricated |
| Speed forward min (metric) | 0 km/h |
| Cutting deck material | Steel |
| Anti-scalp wheels | 6 |
| Transmission Brand | Hydro-Gear |
| Cutting Methods (filter) | Side discharge |
| Cup holder | Yes |
| Seat spring | No |
| Blades | 3 pcs |
| Fuel tank location | Side (Dual) |
| Transmission model | ZT 5400 |
Key features
Deck height adjustment
The deck lift system is spring assisted and allows convenient hand free operation. A simple locking pin adjusts cut height.

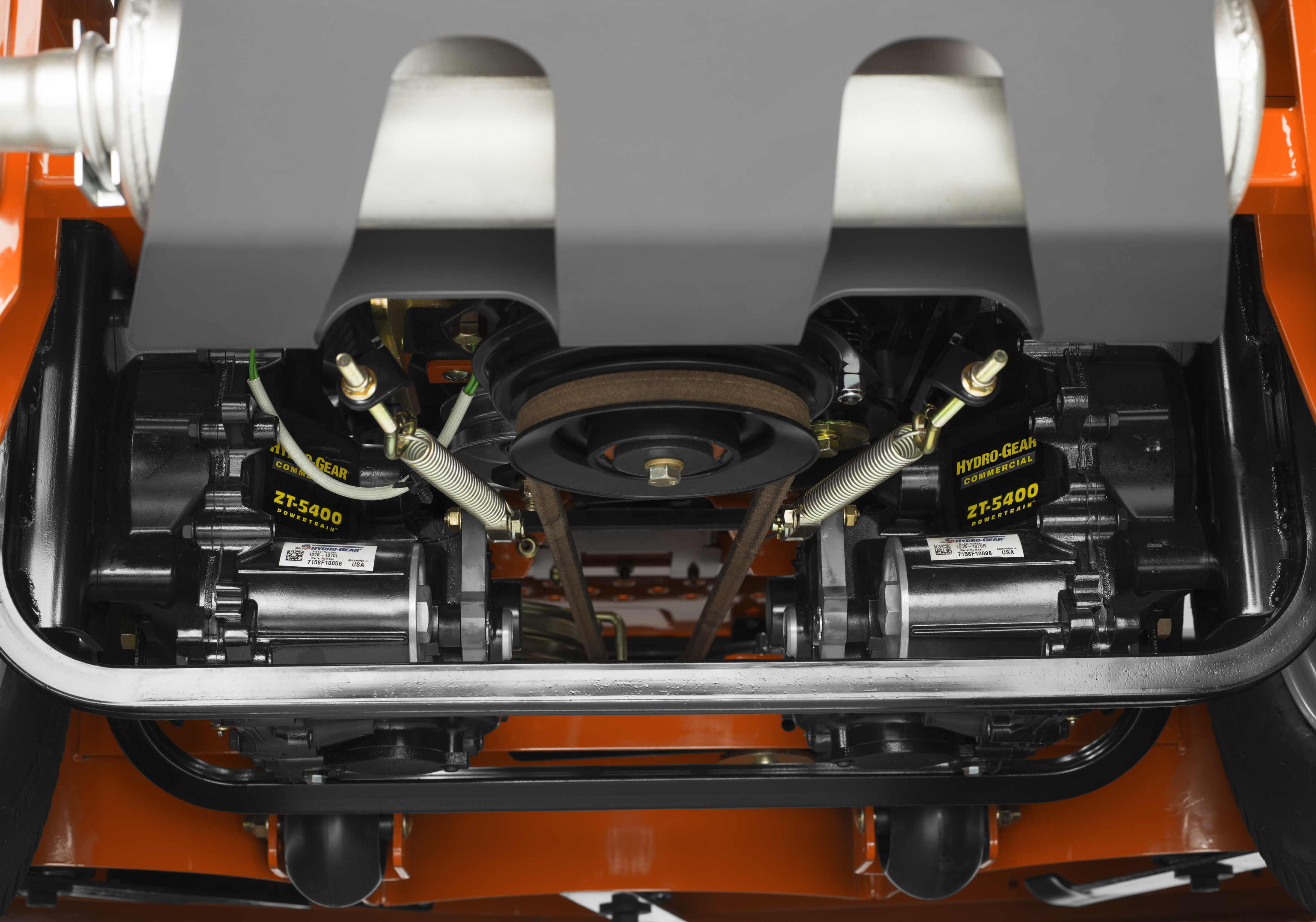

HydroGear ZT5400 Transmissions
The largest and most capable commercial transmission in the line-up that will handle the biggest jobs in landscaping
Roll Over Protection System (ROPS)
The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance.
Large fuel capacity
Twelve gallons of fuel capacity for all-day cutting capability.
Premium suspension seat
Heavily bolstered cushions combined with a dial by weight full suspension, provide all day comfort for the operator. Added elastomeric vibration control (EVC) reduces fatigue.

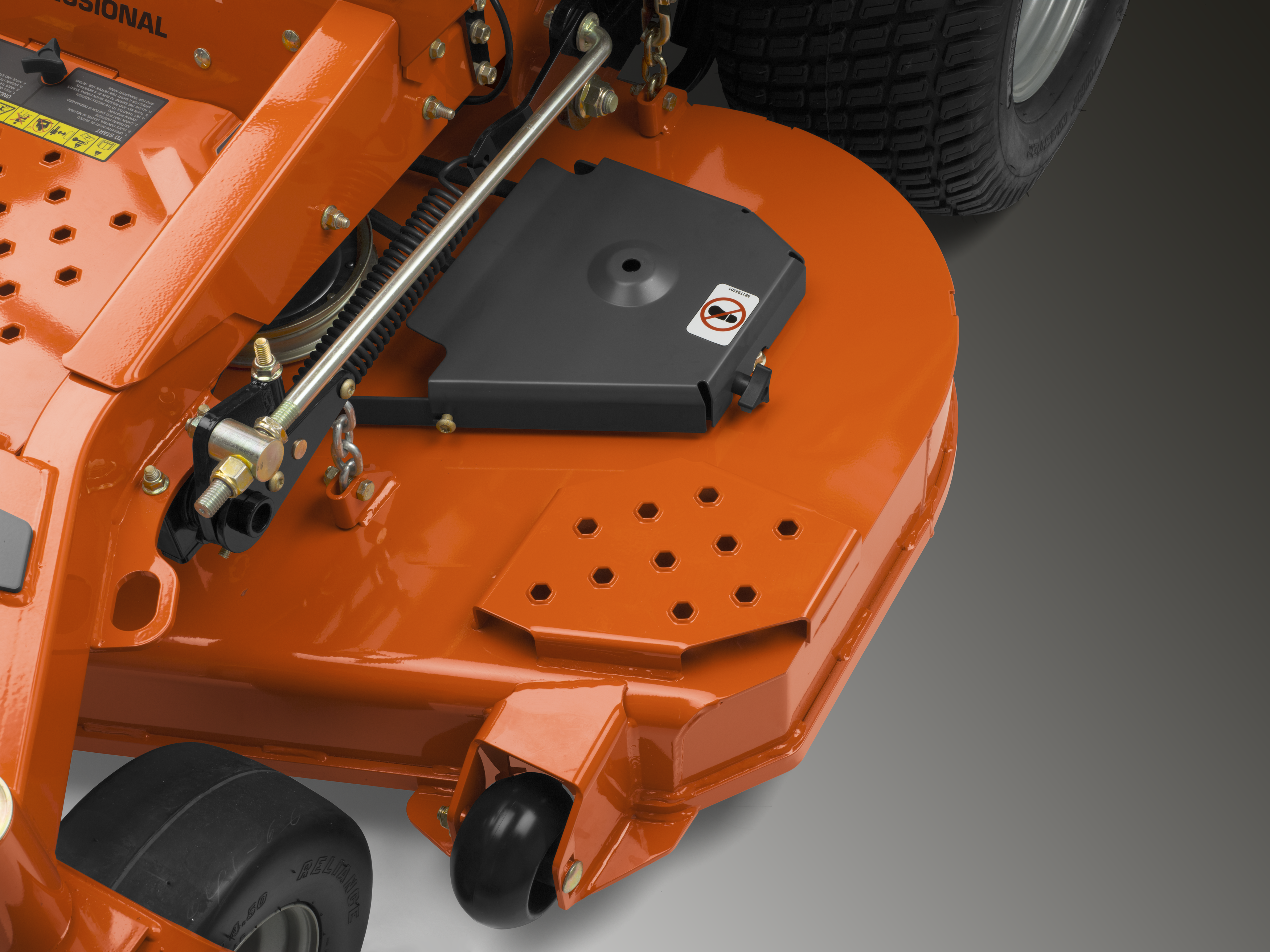

7 gauge fabricated cutting deck
A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish.
LED fuel gauge
The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low.

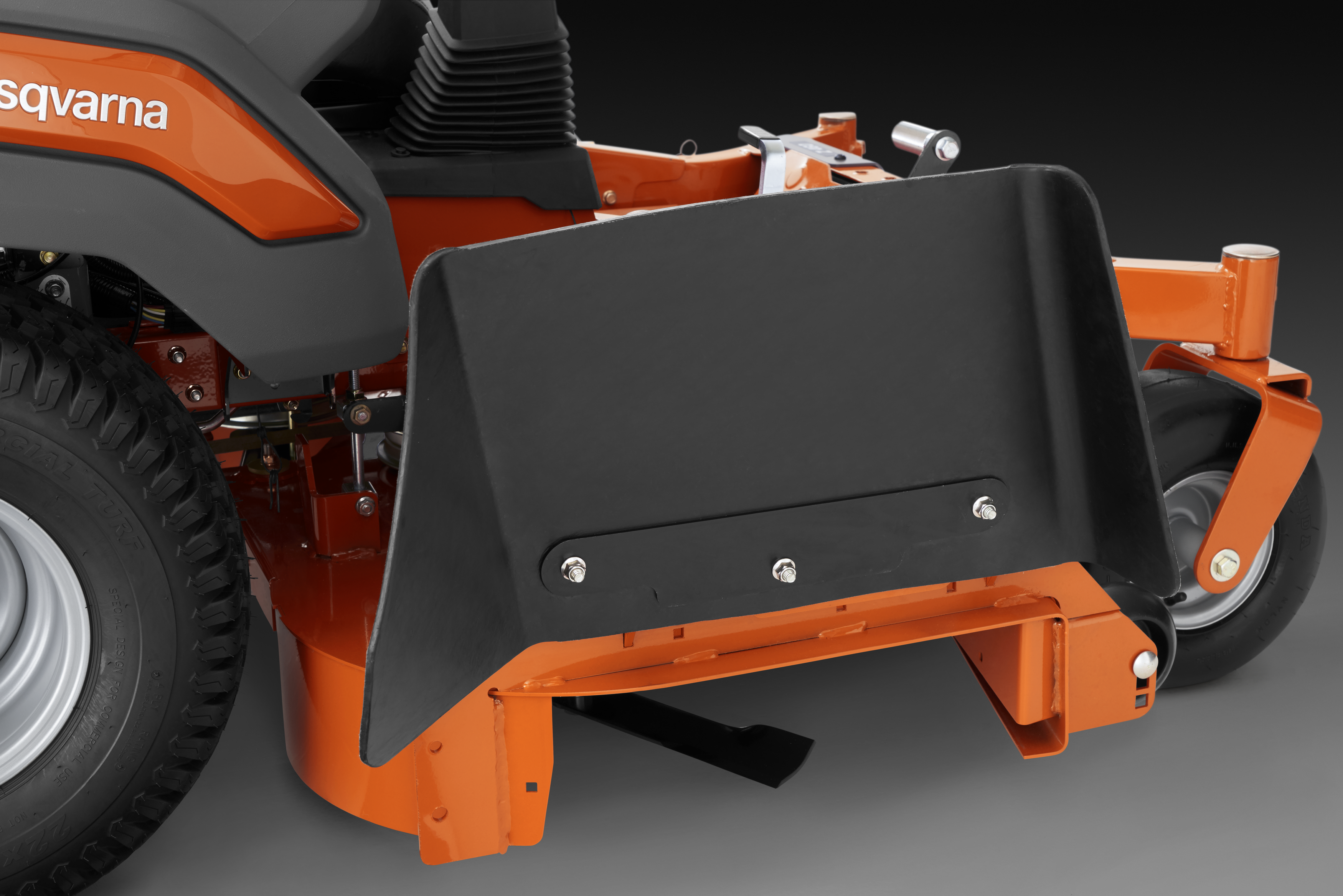

Heavy duty rubber discharge chute
The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property.

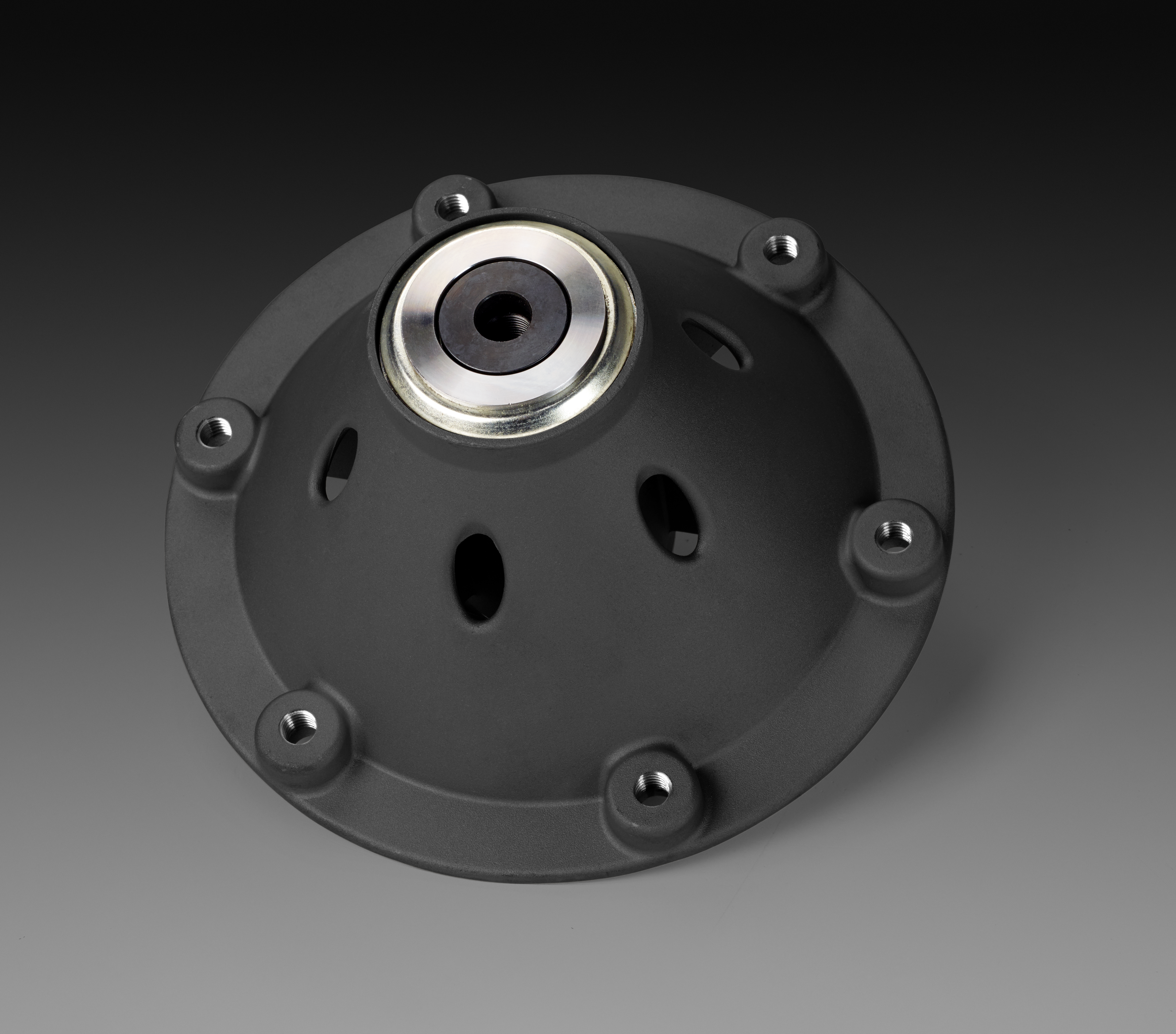

Cast iron spindles
10″ diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.

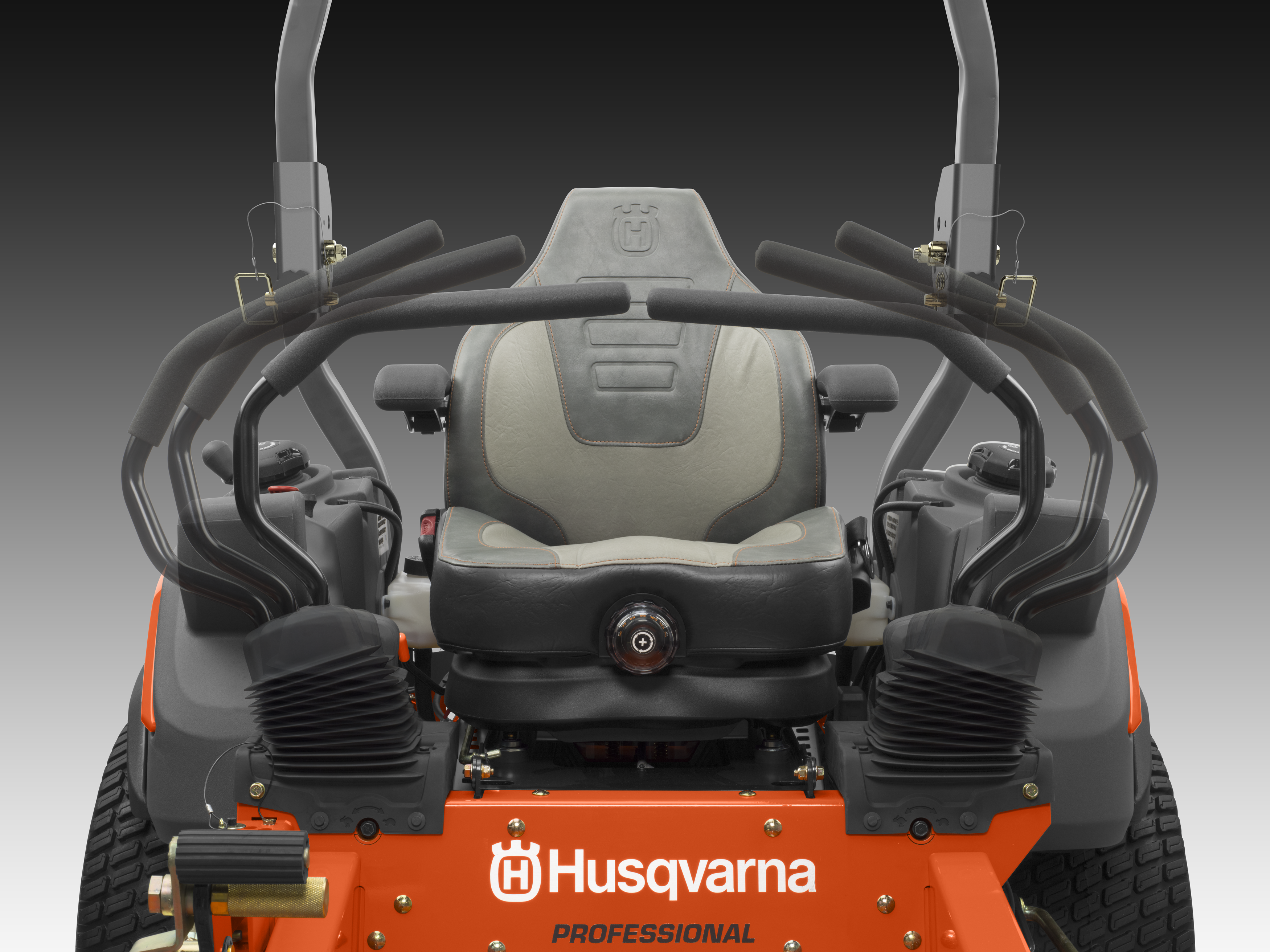

Automatic parking brake
The patent pending parking brake system automatically activates or deactivates as the steering levers are moved outward or inward. (Z560X with optional dust boots shown)

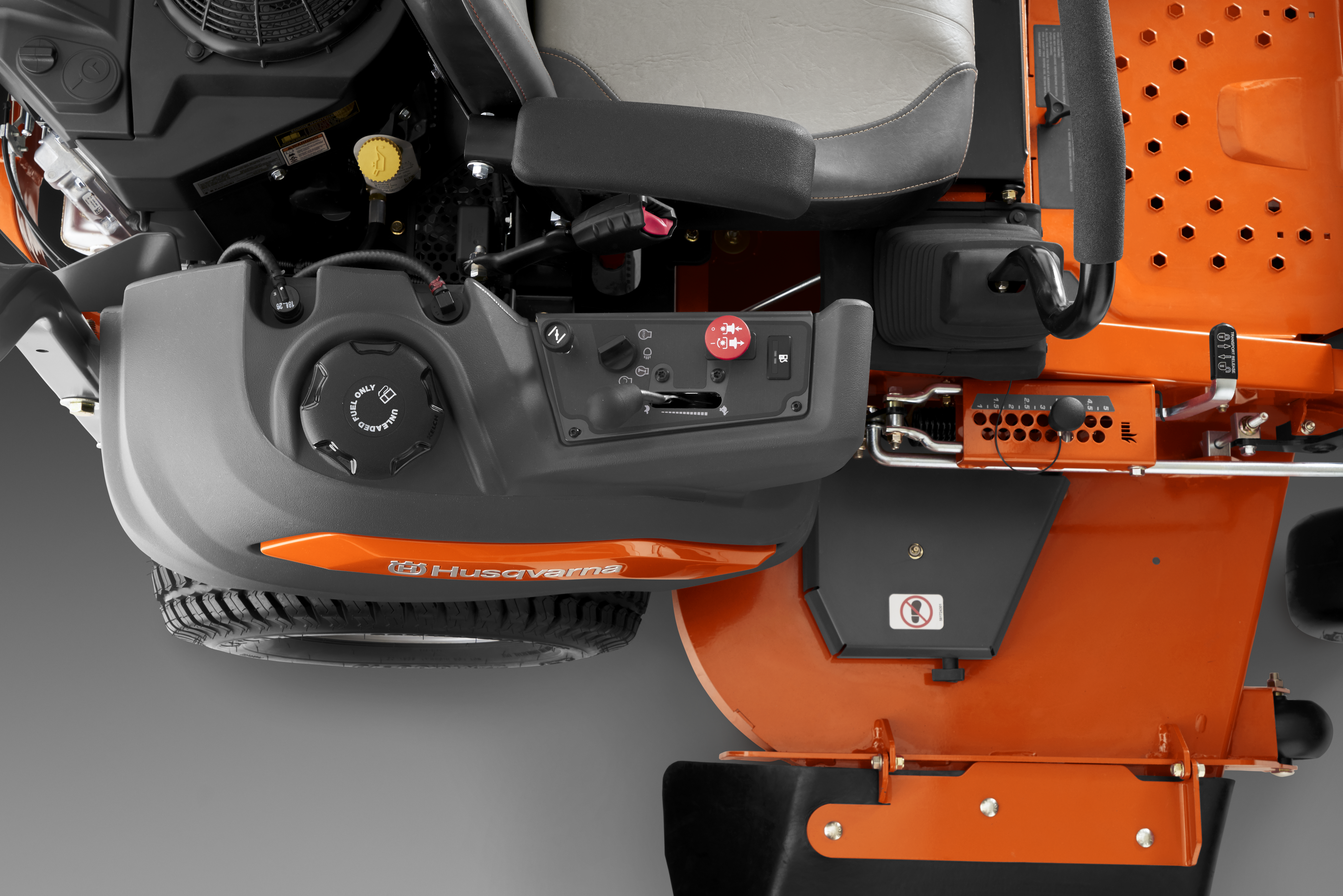

Ergonomic controls
Comfortable, user-focused controls put everything needed to operate the mower within easy reach.
Features
FAQs
Will this fit my machine?
Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.
Do I need any extra brackets or fitting kits?
Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.
Can you fit it for me?
Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).
What is the cutting width and blade setup?
The Z560X has a 152 cm cutting width and uses three blades on a deep‑draw 7‑gauge fabricated cutting deck designed for a high‑quality finish at speed.
How much fuel does it carry?
Fuel capacity is 45.4 litres (approx. 12 gallons). Actual run time will vary with engine load, cutting conditions and ground speed.
Is the ROPS adjustable for low‑clearance areas?
Yes. The Roll Over Protection System is easily foldable so you can lower it where clearance is restricted for transport or working under obstacles.
Additional information
| Weight | 593.298 g |
|---|---|
| UPC|EAN | 7333377073050 |
