Husqvarna Automower 520 EPOS

SKU: 970800803 Category:

£3,499.00 (Inc VAT) - incl. VAT

Contact for availability 01423 780319 enquiries@jtodd.co.uk

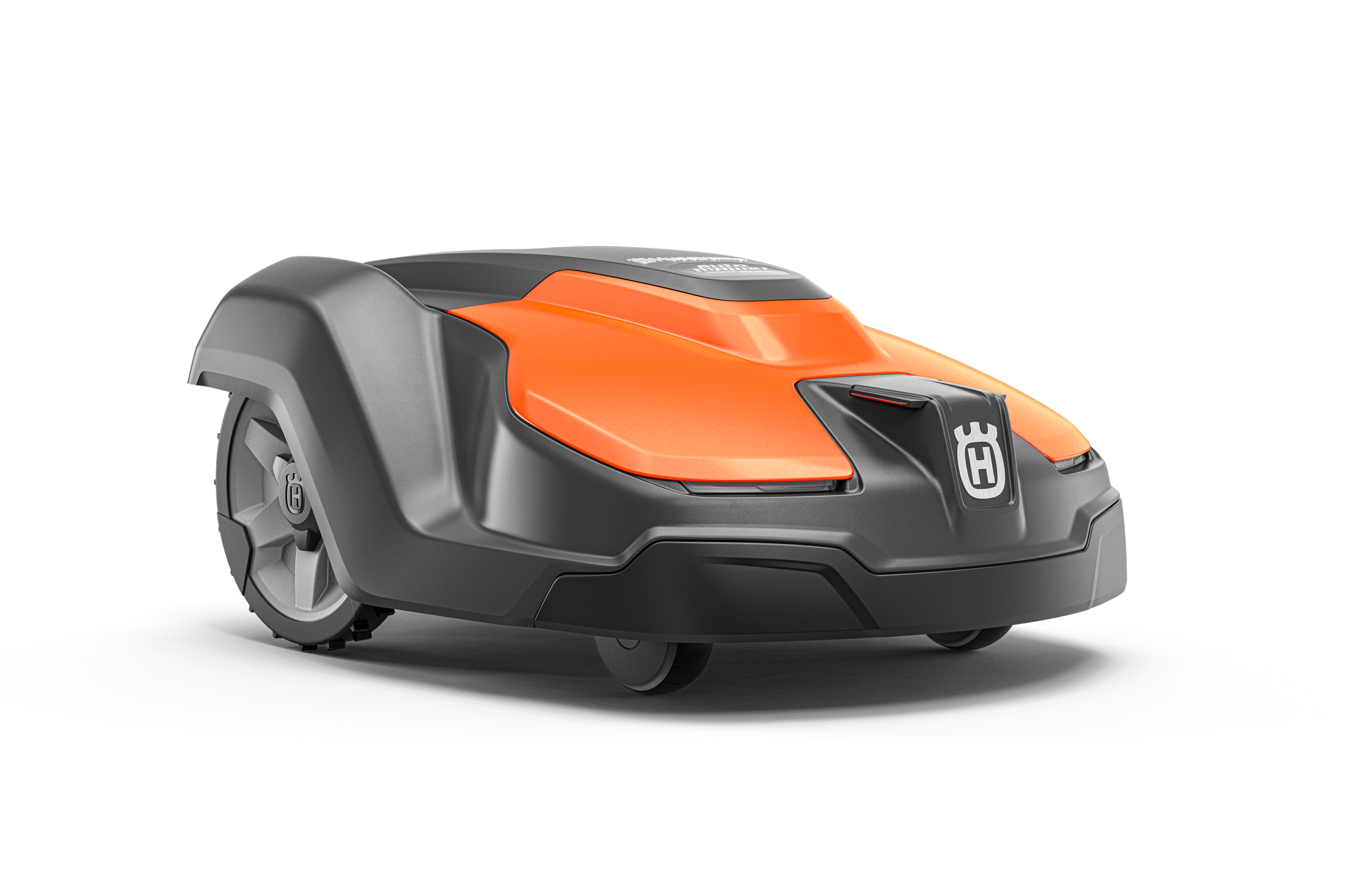

Husqvarna Automower® 520 EPOS®

Commercial-grade robotic mower with wire-free EPOS® virtual boundaries and fleet control — designed for systematic mowing and consistent results.

Up to 5,000 m² (±20)
Virtual wire boundary
Slopes up to 45% (inside)
App: Fleet Services + Automower® Connect
EPOS® RS5 reference station required
Wire-free, systematic mowing for professional sites — flexible zones, clean edges, and easy changes.

Automower® 520 EPOS® is built for commercial fleet use. Using Husqvarna EPOS® (satellite-based RTK-GNSS), you set virtual boundaries instead of installing perimeter wire — ideal when you want to adjust areas seasonally, protect new seeding, or manage multiple lawns from one dashboard.

It navigates narrow passages, delivers consistent cutting patterns (lines, checkerboard and more), and is designed to work 24/7 through the growing season with normal cleaning and blade changes.

Key features & benefits

  • EPOS® wire-free technology (virtual boundaries) with ~2 cm accuracy for robust, flexible installations.
  • Systematic mowing with selectable patterns (parallel lines / diamonds / triangles / checkerboard).
  • Multiple work areas with individual schedules, cutting heights and patterns per area.
  • Temporary stay-out zones for events, repairs, reseeding, or construction work.
  • Husqvarna Fleet Services™ for monitoring, control and analytics across your whole fleet.
  • EPOS® guidance calculates efficient routes to and from the docking point.
  • Warning lights (pulsating/solid) for visibility during night operation.
  • Electric cutting height adjustment via app for quick on-site changes.
  • 5-blade cutting disc (commercial 500-series) for higher cutting performance.
  • FOTA updates (firmware over the air) via Fleet Services.
  • Weather timer adjusts runtime to growth rate to reduce wear.
  • GPS theft protection with GeoFence alerts.
Check suitability / get a quote Installation requirements
This is a fully wire-free EPOS® model (virtual boundary only) — not a hybrid/wired mower.

Quick overview

  • Working area capacity (±20)5,000 m²
  • Boundary typeVirtual wire
  • Max slope (inside installation)45%
  • Max slope (at boundary)15%
  • Cutting height20–60 mm (electric)
  • Cutting width24 cm
  • Cutting system5 pivoting razor blades
  • ConnectivityBluetooth® + Cellular
  • App controlledFleet Services + Automower® Connect
  • Typical mow / charge75 min
  • Typical charge time50 min
  • Sound level (perceived)62 dB(A)

Installation and what you need

Wire-free only (EPOS® virtual boundaries)
  • No perimeter wire — boundaries, transport paths, work areas and stay-out zones are set in the app.
  • EPOS® RS5 Reference Station is required for operation (not included).
  • Best results come from a clear view of the sky across the mowing area for stable satellite positioning.
  • Designed for professional remote handling through Husqvarna Fleet Services™.
If your site has multiple scattered lawns, EPOS® makes it easy to tailor settings per area and adjust boundaries without re-laying wire.

What’s included

Included
  • Charging station
  • Wheel brushes
  • Power supply unit
  • Low voltage cable (10 m)
Not included
  • EPOS® RS5 Reference Station (required)
  • Extra blades

FAQs

Is Automower® 520 EPOS® wire-free, hybrid or wired?
It is fully wire-free using EPOS® virtual boundaries (boundary type: Virtual wire). It is not a hybrid or traditional wired model.
Do I need an EPOS® reference station?
Yes — this model requires the EPOS® RS5 Reference Station for operation. It is not included.
What area size and slopes is it designed for?
Working area capacity is 5,000 m² (±20). Maximum slope performance is 45% inside the installation and 15% at the boundary.
How does fleet control work?
It supports Husqvarna Fleet Services™ (plus Automower® Connect) for monitoring, control and analysis from a smartphone, tablet, or computer — useful for managing multiple machines and sites.
Can I set zones and no-mow areas?
Yes. You can define several work areas with different settings and create temporary stay-out zones (e.g., events, reseeding, construction work) directly in the EPOS® map.
Is it suitable for night operation?
It includes warning lights (pulsating or solid) to create awareness during operation at night. As with any mower, consider site access, local noise considerations, and wildlife activity.

Technical specifications

Capacity
Working area capacity (±20)5,000 m²
Boundary typeVirtual wire
Maximum slope performance at boundary15%
Maximum slope performance inside installation45%
Max active time24 h
Follow guideVirtual transport path
Charging systemAutomatic
Productivity (site planning)
Area capacity – Standard 485,000 m²
Area capacity – Sports 242,500 m²
Area capacity per hour (without charging)175 m²
Overall dimensions
Weight13.8 kg
Length72 cm
Width56 cm
Height32 cm
Product data & battery
ColourOrange
Sound level perceived62 dB(A)
Protection Index (IP Code)IPX4
Battery chemistryLithium Ion
Battery capacity5 Ah
Charging current2.2
Typical mow time on one charge75 min
Typical charging time50 min
Mean energy consumption per month (max use)14 kWh
Cutting system
Cutting system5 pivoting razor blades
Cutting height (min–max)20–60 mm
Cutting width24 cm
Cutting height adjustmentElectric
Skid plateYes
Dual cutting directionYes
Control & connectivity
User interfaceProfessional User Interface/App
DisplayNone
ConnectivityBluetooth®, Cellular
App controlledHusqvarna Fleet Services, Automower® Connect
Smart Home integrationYes
Firmware updateFOTA
Safety
GPS theft trackingYes
GeoFenceYes
PIN codeYes
AlarmHigh
Lift sensorYes
Tilt sensorYes
Object detectionNo

Quick comparison

Automower® 520 EPOS®: Fully wire-free
  • Boundary type: Virtual wire only.
  • Fast boundary changes, multiple work areas, and temporary stay-out zones in-app.
  • Requires EPOS® RS5 reference station.
Fully wired models: Physical wire
  • Boundary is set by wire — changes typically mean moving/re-laying cable.
  • Often best when you prefer a fixed perimeter or have site constraints for satellite positioning.

Ready to spec this for your site?

Share your total area, number of zones, access routes between lawns, and whether you already have (or need) an EPOS® RS5 reference station. We’ll confirm suitability and recommend the right setup.

Enquire now Review requirements
Commercial note: Fleet Services is ideal when you’re managing multiple machines and want reporting, remote control and updates.
Automower® 520 EPOS® Wire-free (virtual boundary) • Up to 5,000 m²
Get a quote

Additional information

Weight 21.810 g
UPC|EAN

7333377715936
