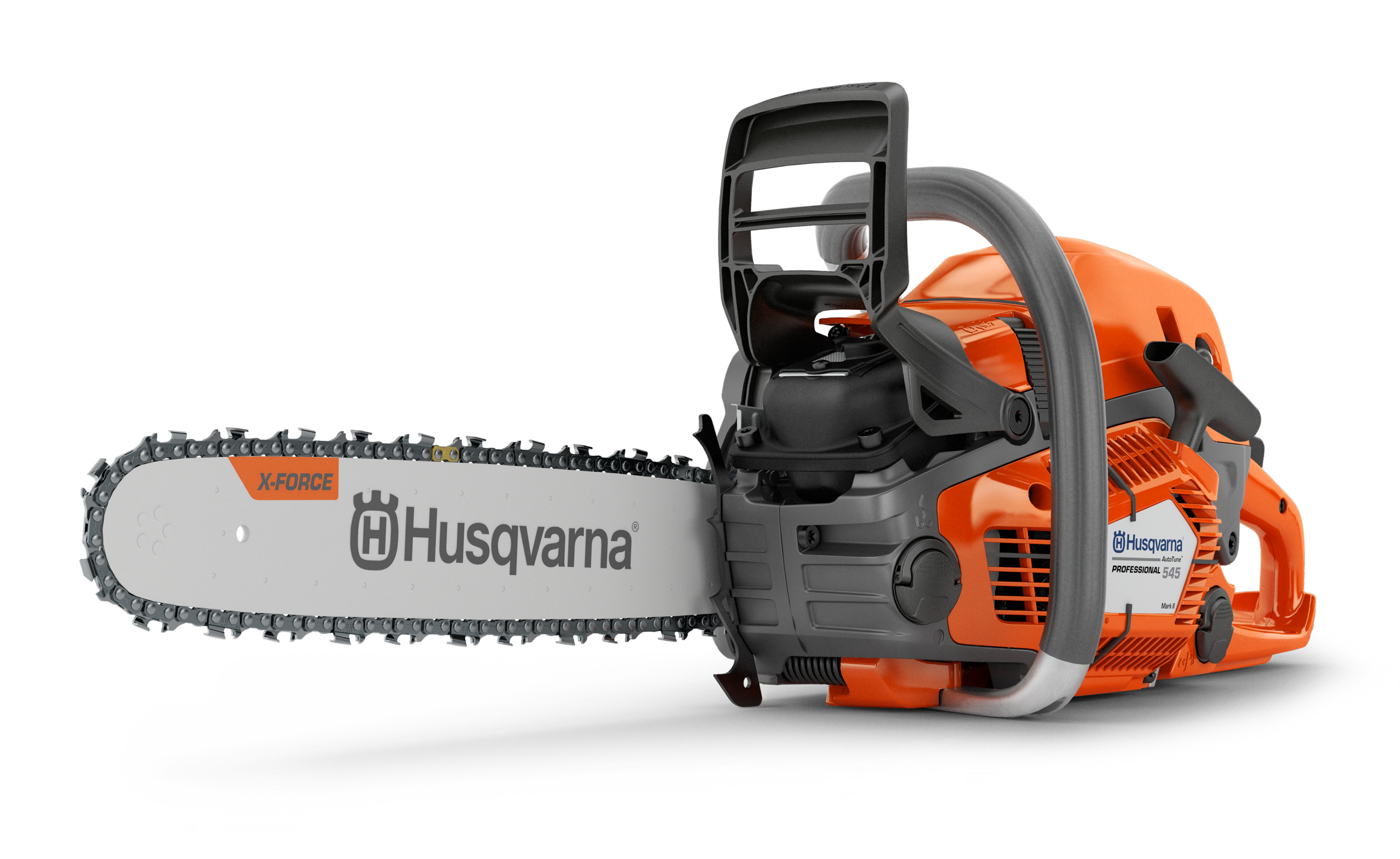

Husqvarna 545 Mark II Chainsaw
£755.16 (Inc VAT) - incl. VAT
Contact for availability 01423 780319 enquiries@jtodd.co.uk
Professional 50 cc chainsaw engineered for felling, limbing and bucking small to mid-sized trees. The 545 Mark II couples a slimmed-down body and proven Husqvarna engine technology for reliable performance, straightforward maintenance and comfortable handling during long shifts.
Consistent engine performance
AutoTune and the X-TORQ engine deliver stable running across different fuels, altitudes and temperatures while Air Injection reduces wear by removing larger particles before they reach the filter.
Quick to start and simple to service
SmartStart, combined start/stop switch and fuel pump make starting fast and low effort. The quick-release air filter and snap-lock cylinder cover speed up routine cleaning and spark-plug access on site.
Built for heavy professional use
Magnesium crankcase, forged three-piece crankshaft and a long-life felling sight provide durability where it matters, designed to withstand demanding forestry and arboriculture work.
Key specification
| Article ID | 967690615 |
| Power output | 2.7 kW |
| Cylinder displacement | 50.1 cm³ |
| Weight | 5.3 kg |
| Bar / blade / cutting length | 38 cm |
| Fuel tank | 0.53 l |
Full specification
| Weight (excl. cutting equipment) | 5.3 kg |
| Product size height | 28 cm |
| Product size length | 44 cm |
| Product size width | 22 cm |
| Cylinder displacement (metric) | 50.1 cm³ |
| Output shaft power (metric) | 2.7 kW |
| Fuel tank volume (metric) | 0.53 l |
| Fuel Consumption | 432 g/kWh |
| Idling speed | 2800 rpm |
| Clutch engagement speed (±120) | 3900 rpm |
| Spark Plug | NGK CMR6H |
| Exhaust emissions (CO₂ EU V) | 844 g/kWh |
| Sound pressure level at operators ear (LpA) | 106 dB(A) |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Packaging length | 495 mm |
| Packaging width | 280 mm |
| Packaging height | 333 mm |
| WEEE Classified | No |
| Equivalent vibration level (ahv, eq) rear handle | 4.6 m/s² |
| Chain speed at max power (m/s) (metric) | 19.1 m/s |
| Power/fuel type | Gasoline |
| Recommended bar length, min (metric) | 33 cm |
| Recommended bar length, max (metric) | 50 cm |
| Equivalent vibration level (ahv, eq) front handle | 4.0 m/s² |
| Chain pitch | .325″ |
| Chain type | S35G |
| Bar length (metric) | 38 cm |
| Bar length (inch) | 15 in |
| Spikes | Mounted |
| Nose type | Sprocket nose |
| Ignition module air gap (metric) | 0.3 mm |
| Cylinder stroke (metric) | 34.5 mm |
| Chainsaw sub-group | Full time professional use chainsaws |
| Ignition module air gap (imperial) | 0.01 in |
| Cylinder stroke (imperial) | 1.36 in |
Key features
Excellent cooling capacity for a longer engine life
Our new cooling system is optimised in every detail to give you a reliable chainsaw for any situation.
AutoTune
AutoTune gives optimal engine performance throughout automatic engine setting.
No time spent on carburettor adjustments. It compensates for
different fuels, altitude, humidity, temperature and clogged air filter.
Magnesium crankcase
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Snap-lock cylinder cover
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Retained bar nuts
The retaining function prevents loosing the bar nuts.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Retained starter screws
The retaining function prevents losing the screws holding the starter.
Flip up tank caps
Easy to open and secure firmly, even when wearing thick winter gloves.
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.
Felling sight to last a lifetime
Perfect sight is critical when felling – so we made one that will outlast the chainsaw itself.
Air Injection™
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
Adjustable oil pump
Adjustable oil pump makes it easy to set the chain lubrication according to your needs.
Easy to start
Combined start/stop switch and fuel pump make the saw very easy to start.
Side-mounted chain tensioner
Side-mounted chain tensioner makes chain adjustment quick and easy.
Slimmed-down design
Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.
Powerful and Efficient X-TORQ® Engine
Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.
Three-piece crankshaft
Forged three-piece crankshaft for maximum durability for the toughest applications.
Made for professional use
Engineered for professional use, offering power, performance and durability for demanding tasks.
Product video
FAQs
How many CC is a Husqvarna 545 Mark II?
The Husqvarna 545 Mark II has an engine displacement of 50 cubic centimeters (CC).
How much does a Husqvarna 545 Mark II weigh?
5.3 kg excl. cutting equipment
Is a Husqvarna 545 Mark II a Pro saw?
Yes, the Husqvarna 545 Mark II is a professional chainsaw in the 500-series. Built for demanding forestry and tree care work. It features a powerful 50cc X-Torq® engine, AutoTune™ for consistent performance, and a durable magnesium crankcase. With high cutting capacity, low vibration, and advanced filtration, it’s designed for efficiency and reliability in tough conditions.
What bar lengths can I use with the 545 Mark II?
The saw accommodates bar lengths from 33 cm up to 50 cm. It is supplied with a 15 in (38 cm) sprocket-nose bar and a .325″ S35G chain (1.5 mm). Choose bar length to suit the task and saw balance.
How easy is it to start and maintain on site?
Starting is straightforward thanks to SmartStart, the combined start/stop switch and the fuel primer. AutoTune eliminates routine carburettor adjustments. Routine maintenance is simplified by the quick-release air filter, snap-lock cylinder cover and retained fasteners that reduce the risk of losing screws or nuts.
What are the noise and vibration levels and what PPE should I use?
Sound pressure at the operator’s ear is 106 dB(A) and the guaranteed sound power level is 115 dB(A). Equivalent vibration levels are 4.6 m/s² (rear handle) and 4.0 m/s² (front handle). Use appropriate personal protective equipment: certified hearing protection, eye protection, chainsaw trousers/chaps, gloves and a helmet with face/ear protection as required by site rules and local regulations.
Additional information
| Weight | 6.314 g |
|---|---|
| UPC|EAN | 7391736512893 |
