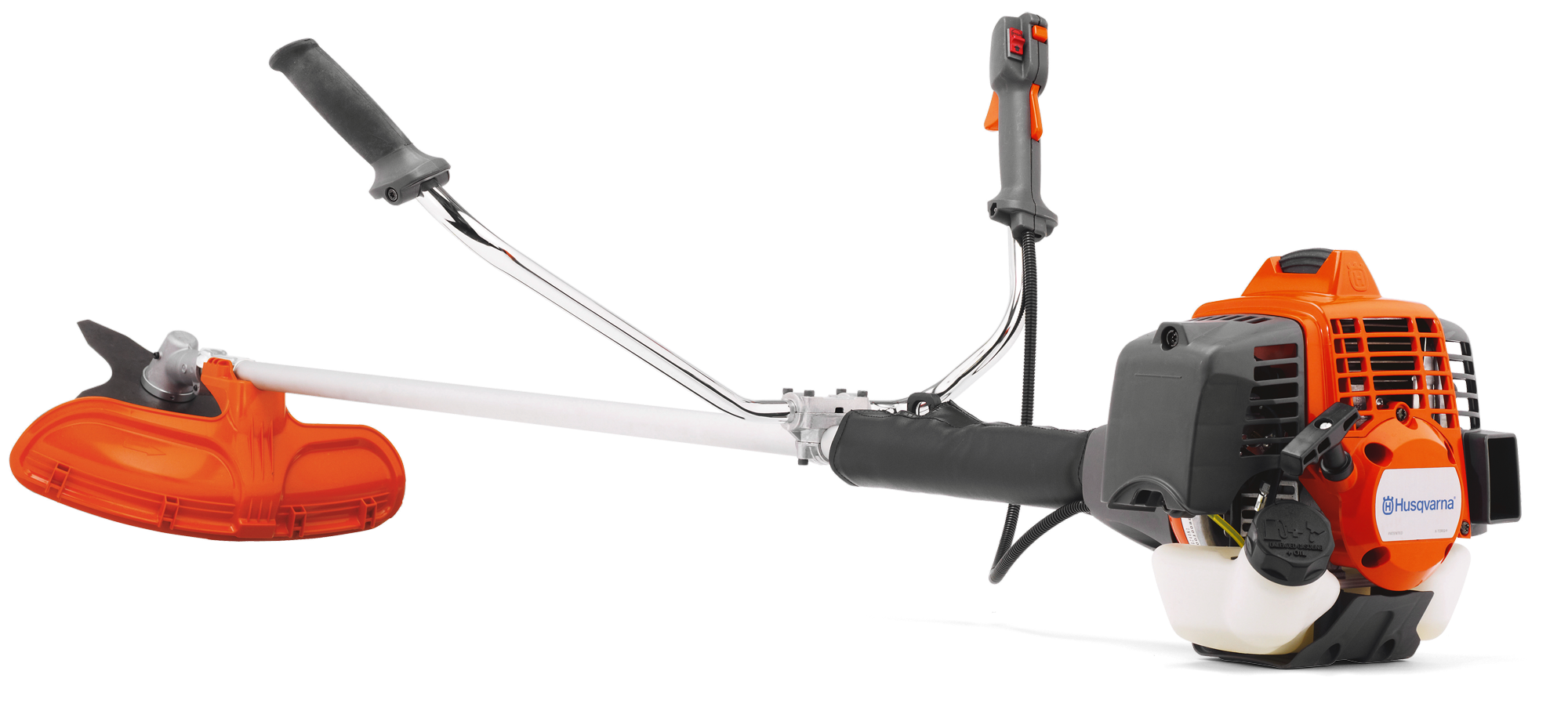

Husqvarna 543RS
£649.00 (Inc VAT) - incl. VAT
1 in stock
Practical, petrol-powered brushcutter engineered for frequent trimming of thick grass and weeds. As an installer I’d fit the supplied harness, check bevel-gear alignment and make sure the combi-guard and cutting attachments are mounted correctly before first use. The machine features an X-Torq engine and an efficient air filter to reduce wear and service costs.
Strong, fuel-efficient power
X-Torq engine increases torque across a wide rpm range for reliable cutting performance while reducing fuel consumption and emissions compared with conventional two-stroke designs.
Durable build for tough jobs
Heavy duty clutch, robust die‑casted handle clamp and proven bevel gear design stand up to long hours and heavy cutting equipment.
Versatile cutting setup
Combi-guard accepts either the supplied Multi 275-4 grass blade or the T35 M12 trimmer head, allowing quick change between blade and line cutting; nominal cutting width 46 cm.
Key specification
| Article ID | 966779901 |
| Power output | 1.39 kW |
| Cylinder displacement | 40.1 cm³ |
| Weight | 7.4 kg |
| Bar / blade / cutting length | 46 cm |
| Fuel tank | 0.75 l |
Full specification
| IsNew | No |
| Weight (excl. cutting equipment) | 7.4 kg |
| SpareParts | 521642101, 577926701, 521233401, 578059501, 525418201, 528706201, 521672401, 504117701, 506742601, 516972801, 513789301, 525348601, 528818301, 521636401, 521665101, 521665201, 502291101, 506746801, 516283001, 503798801, 520954901, 546071709, 505296701, 520954801, 505293801, 505297301, 504121501, 506614601, 503936601, 501185001, 528074001 |
| Accessories | 578447601, 578446401, 578446601, 578449301, 578444501, 578445101, 578447801, 578446801, 537331603, 546380401, 546380601, 546380801, 578449701, 597468201, 597468901 |
| Cylinder displacement (metric) | 40.1 cm³ |
| Output shaft power (metric) | 1.39 kW |
| Fuel tank volume (metric) | 0.75 l |
| Fuel Consumption | 424 g/kWh |
| Maximum power speed | 9000 rpm |
| Idling speed | 3000 rpm |
| Torque, max. | 1.96 Nm |
| Torque, max. at rpm | 6000 rpm |
| Spark Plug | NGK CMR7H |
| Cutting width (metric) | 46 cm |
| Connectivity | Not applicable |
| Exhaust emissions (CO₂ EU V) | 1014 g/kWh |
| Sound pressure level at operators ear (LpA) | 95 dB(A) |
| Sound power level, guaranteed (LWA) | 118 dB(A) |
| Equivalent vibration level (ahv, eq) left handle | 3.5 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 3 m/s² |
| Gear ratio | 1.4 |
| Drive gear angle | 30 ° |
| Tube diameter (metric) | 28.05 mm |
| Tube length (metric) | 1483 mm |
| Grass blade | Multi 275-4 |
| Harness | Standard double harness |
| Saw blade | Not included |
| Trimmer head | T35 M12 |
| Handle type | Bullhorn |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Lubricant type (bevel gear) | Mineral grease |
| Exhaust emissions (HC average) EU | 41 g/kWh |
| Exhaust emissions (CO average) EU | 290.1 g/kWh |
| Exhaust emissions (NOx average) EU | 0.7 g/kWh |
| Packaging length | 1920 mm |
| Packaging width | 300 mm |
| Packaging height | 370 mm |
| Power source | Petrol |
| WEEE Classified | No |
Key features
X-Torq® engine
The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.
Standard double harness
Standard double harness for lighter brushcutters provides a comfortable working position. The weight is distributed evenly over the shoulders and the harness is padded for extra convenience.
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
High Line Capacity
Heavy duty twin line cutting system with Tap’n Go. Line feeding is done quick and effortlessly by simply pushing the trimmer head into the ground.
Combi-guard
The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.
Bevel gear design
Proven and reliable gear design.
Robust handle system
The handle bar is attached to the tube by a die casted clamp for high durability.
Heavy duty clutch
The heavy duty clutch facilitates tough work using long cords and large diameter cutting knife.
Stand alone starter
The stand alone starter makes it easy to change starter cord if needed.
Efficient air filter
The efficient air filter provide less cost for service and less engine wear
Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.
Ergonomic handle
Comfortable handle design.
Features
FAQs
Will this fit my machine?
Fitment can vary by model and deck size. Send us your mower model (and deck size if applicable) and we’ll confirm compatibility before you order.
Do I need any extra brackets or fitting kits?
Some accessories require a mounting kit or specific brackets depending on your machine. If you’re unsure, ask us and we’ll advise the correct setup.
Can you fit it for me?
Yes — if you’d like installation, let us know when ordering and we can arrange fitting (collection, workshop fit, or on-site depending on the product).
What fuel and oil mix should I use?
Use Husqvarna 2-stroke oil or an equivalent high-quality 2T oil at a 50:1 mix ratio as specified by Husqvarna. The fuel tank capacity is 0.75 litres. Always follow safe mixing and storage practices.
Which cutting attachments come with the machine?
The machine is supplied with a T35 M12 trimmer head and a Multi 275-4 grass blade plus the combi-guard, allowing you to switch between line and blade cutting depending on the task. Cutting width is 46 cm with the blade.
What personal protection and PPE should I use?
Use the supplied standard double harness and wear hearing protection (sound pressure at operator’s ear 95 dB(A)), eye protection, gloves, long trousers and sturdy boots. Check vibration exposure for long shifts (left 3.5 m/s², right 3.0 m/s²) and plan breaks accordingly.
Additional information
| Weight | 7.400 g |
|---|---|
| UPC|EAN | 7391883709764 |
